Power window regulator switch ASSY (installed to the front side)

Components Removal / installation

GLASS & WINDOW

POWER WINDOW REGULATOR SWITCH ASSY (INSTALLED TO THE FRONT SIDE)

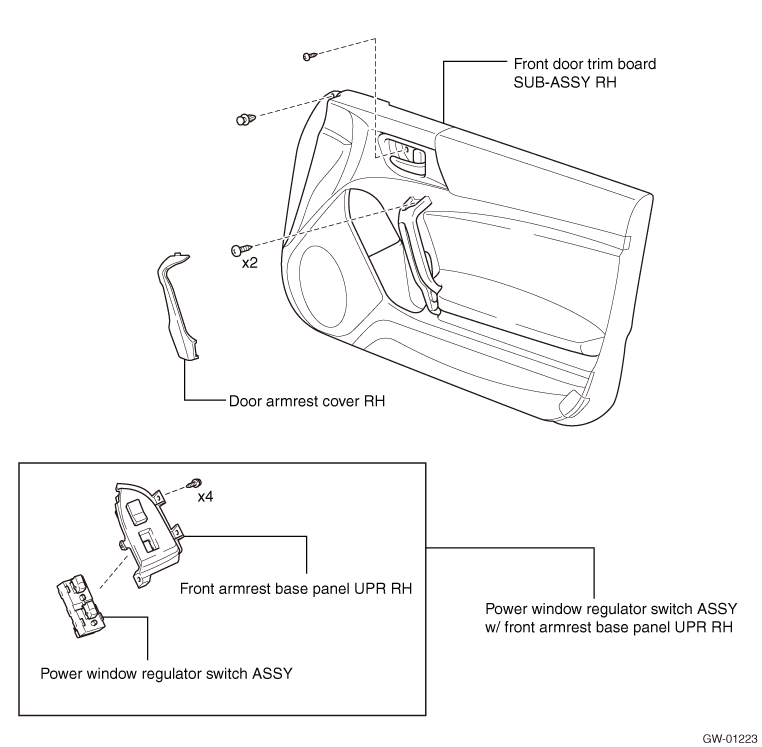

EXPLODED VIEW

REMOVAL

1. Disconnection of the battery ground terminal (Refer to

)

2. Removal of door armrest cover RH

Remove the part in the same manner as LH side. (Refer to

)

3. Removal of front door trim board SUB-ASSY RH

Remove the part in the same manner as LH side. (Refer to

)

4. Removal of power window regulator switch ASSY W/front armrest base panel UPR RH (passenger’s side door) (Refer to

)

5. Removal of power window regulator switch ASSY

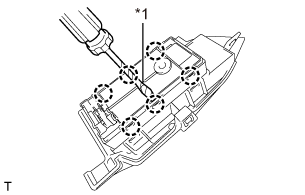

(1) Using a flat head screw driver wrapped in protective tape, release the 6 tabs and remove the power window regulator switch ASSY from the front armrest base panel UPR RH.

*1	Protective tape

INSTALLATION

1. Installation of power window regulator switch ASSY

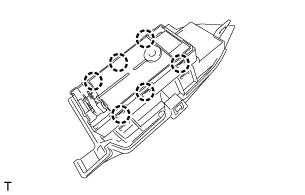

(1) Engage the 6 claws and install the power window regulator switch ASSY to the front armrest base panel UPR RH.

2. Installation of power window regulator switch ASSY W/front armrest base panel UPR RH (Refer to

)

3. Installation of front door trim board SUB-ASSY RH

Install the part in the same manner as LH side. (Refer to

)

4. Installation of door armrest cover RH

Install the part in the same manner as LH side. (Refer to

)

5. Connection of the battery ground terminal

Standard value:

Tightening torque=6.0N·m { 61kgf·cm} {4.4ft·lbf}

6. Settings when removing/installing battery terminals (Refer to

)
