Power window regulator motor ASSY (installed to the front side)
Components Inspection Removal / installation
GLASS & WINDOW
POWER WINDOW REGULATOR MOTOR ASSY (INSTALLED TO THE FRONT SIDE)

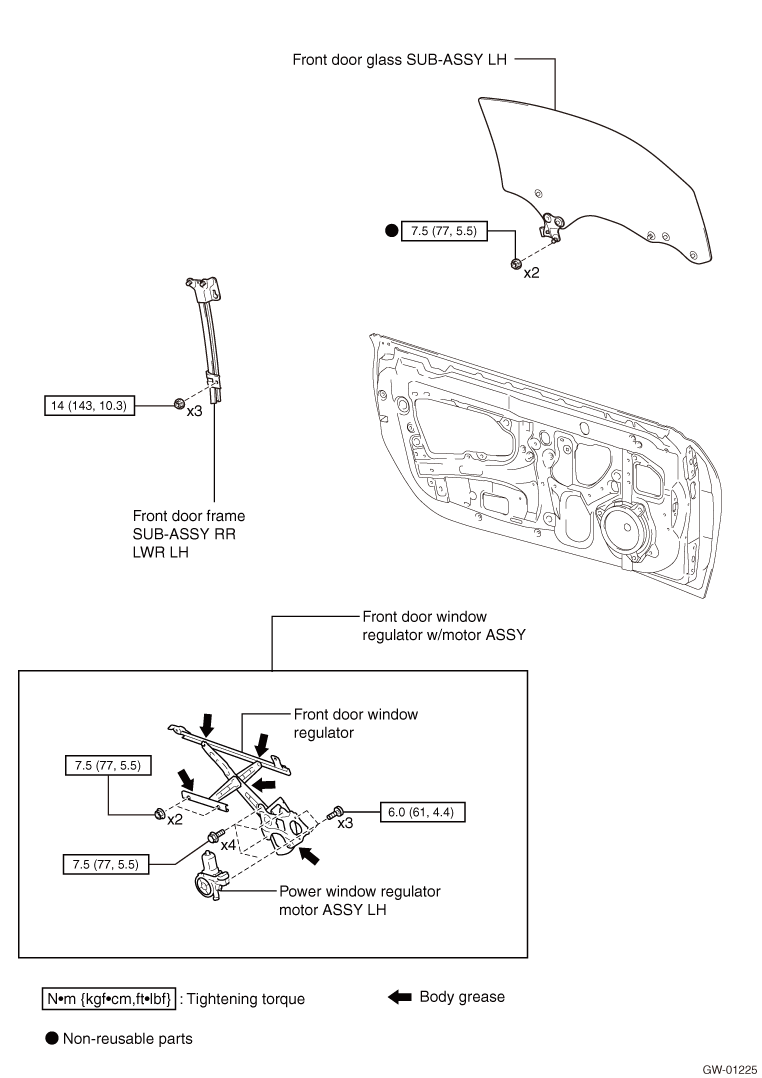

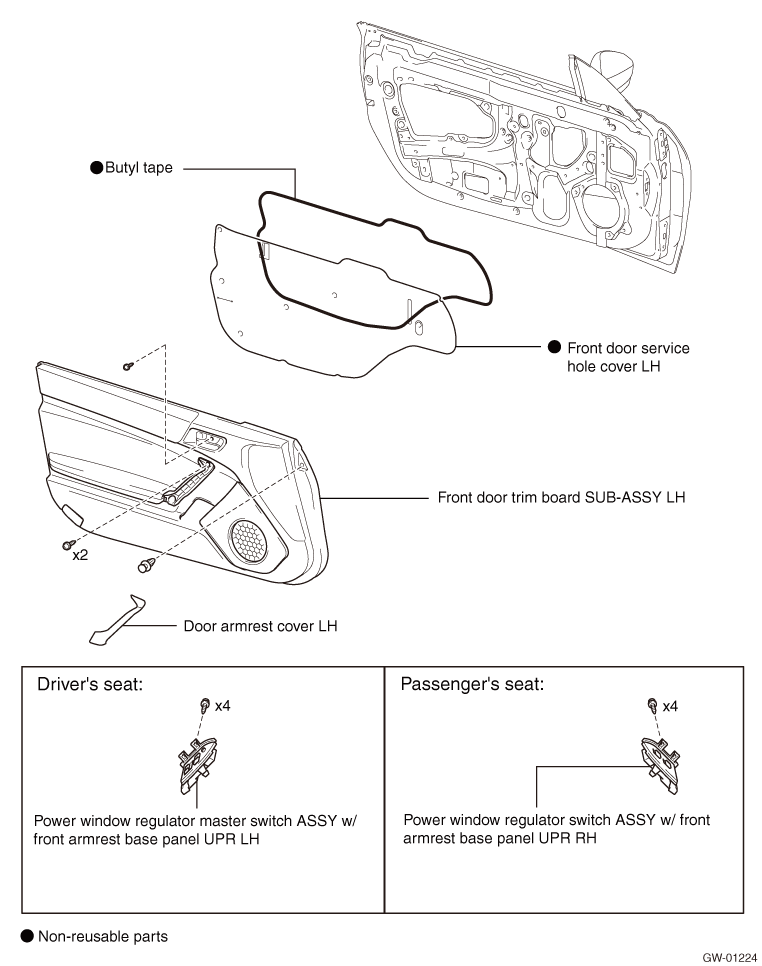

EXPLODED VIEW
REMOVAL
NOTE:
The following procedure is for LH side. Perform the same procedures both for the LH side and RH side, unless otherwise specified.
1. Disconnection of the battery ground terminal (Refer to
)
)2. Removal of the door armrest cover LH (Refer to )
)3. Removal of the front door trim board SUB-ASSY LH (Refer to )
)4. Removal of power window regulator master switch ASSY W/front armrest base panel UPR LH (driver’s side door) (Refer to )
)5. Removal of power window regulator switch ASSY W/front armrest base panel UPR RH (passenger’s side door) (Refer to )
)6. Removal of the front door service hole cover LH (Refer to )
)7. Removal of front door glass SUB-ASSY LH (Refer to )
)8. Removal of the front door frame SUB-ASSY RR LWR LH (Refer to )
)9. Removal of front door window regulator W/motor ASSY (Refer to )
)
10. Removal of power window regulator motor ASSY LH

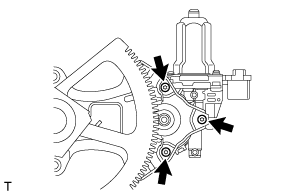

(1) Using Torx socket wrench T25, remove the 3 Torx screws, and remove the power window regulator motor ASSY LH from the front door window regulator LH.
INSTALLATION
NOTE:
The following procedure is for LH side. Perform the same procedures both for the LH side and RH side, unless otherwise specified.
1. Installation of power window regulator motor ASSY LH
(1) Using Torx socket wrench T25, with the 3 Torx screws, install the power window regulator motor ASSY LH onto the front door window regulator RH.
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
2. Installation of front door window regulator W/motor ASSY (Refer to )
)3. Installation of the front door frame SUB-ASSY RR LWR LH (Refer to )
)4. Installation of front door glass SUB-ASSY LH (Refer to )
)5. Adjustment of the front door glass SUB-ASSY LH
(1) Check the installation condition of front door glass. (Refer to )
)(2) Check the mounting condition of front door glass. (Refer to )
)6. Installation of the front door service hole cover LH (Refer to )
)7. Installation of power window regulator master switch ASSY W/front armrest base panel UPR LH (driver’s side door) (Refer to )
)8. Installation of power window regulator switch ASSY W/front armrest base panel UPR RH (passenger’s side door) (Refer to )
)9. Installation of the front door trim board SUB-ASSY LH (Refer to )
)10. Installation of the door armrest cover LH (Refer to )
)11. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
12. Power window registration settings (Refer to )
)13. Function inspection of the power windows (Refer to )
)UNIT INSPECTION
1. Inspection of power window regulator motor ASSY LH
CAUTION:
·Apply the voltage to the motor terminals 1 and 3 only. Otherwise, the pulse sensor inside the motor can be damaged.
·After removing or replacing the power window regulator motor ASSY, perform the initialization of the power window system. (Refer to)
·After removing or replacing the power window regulator motor ASSY, perform the initialization of the power window system. (Refer to
)
(1) Apply battery voltage to each connector terminal of the power window regulator motor ASSY LH and check that the power window regulator motor ASSY LH operates smoothly.
Criteria
| Battery connection |
Criteria |
|---|---|
| Battery positive terminal - 3 (WD) Battery ground terminal - 1 (WU) |
Rotates on the drive shaft ccw (open). |
| Battery positive terminal - 1 (WU) Battery ground terminal - 3 (WD) |
Rotates on the drive shaft cw (close). |

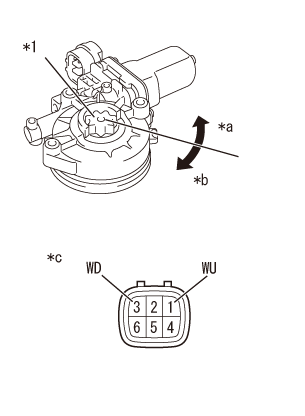

Captions in illustration
| *1 |
Drive shaft |
| *a |
Rotates on the drive shaft ccw. |
| *b |
Rotates on the drive shaft cw. |
| *c |
Connector not connected (Power window regulator motor ASSY LH) |
2. Inspection of power window regulator motor ASSY RH
CAUTION:
·Apply the voltage to the motor terminals 1 and 3 only. Otherwise, the pulse sensor inside the motor can be damaged.
·After removing or replacing the power window regulator motor ASSY, perform the initialization of the power window system. (Refer to)
·After removing or replacing the power window regulator motor ASSY, perform the initialization of the power window system. (Refer to
)
(1) Apply battery voltage to each connector terminal of the power window regulator motor ASSY RH and check that the power window regulator motor ASSY RH operates smoothly.
Criteria
| Battery connection |
Criteria |
|---|---|
| Battery positive terminal - 3 (WD) Battery ground terminal - 1 (WU) |
Rotates on the drive shaft cw (open). |
| Battery positive terminal - 1 (WU) Battery ground terminal - 3 (WD) |
Rotates on the drive shaft ccw (close). |

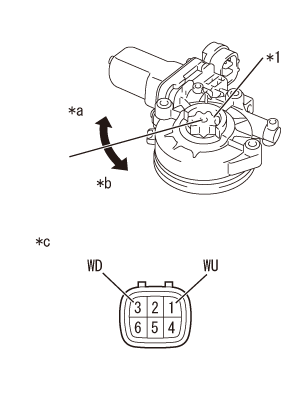

Captions in illustration
| *1 |
Drive shaft |
| *a |
Rotates on the drive shaft cw. |
| *b |
Rotates on the drive shaft ccw. |
| *c |
Connector not connected (Power window regulator motor ASSY RH) |
