GLASS & WINDOW
RELAY
UNIT INSPECTION
1. Inspection of defogger relay
(1) Measure the resistance between connector terminals as shown below.
Resistance
Inspection terminals
Inspection conditions
Standard value
3 - 5
When battery voltage is not applied between terminals 1 - 2.
10 kΩ or more
When battery voltage is applied between terminals 1 - 2.
Less than 1 Ω

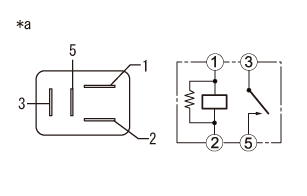

*a
Connector not connected
(RR DEF relay)
