Front hood
Inspection Removal / installation
DOOR / TRUNK
FRONT HOOD
DISASSEMBLY
1. Removal of the hood insulator

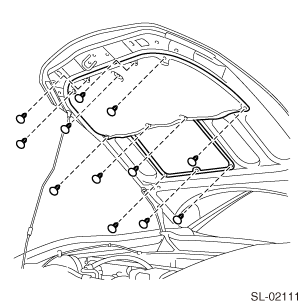

(1) Using a clip remover, remove the 12 clips, and remove the hood insulator.
2. Removal of the seal ASSY front hood RH

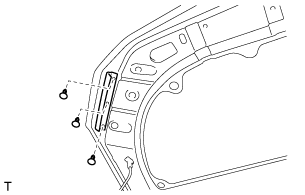

(1) Using a clip remover, remove the 3 clips and remove the seal ASSY front hood RH.
3. Removal of the seal ASSY front hood LH
(1) Remove the part in the same manner as RH side.
ASSEMBLY
1. Installation of the seal ASSY front hood RH
(1) Using 3 clips, install the seal ASSY front hood RH.
2. Installation of the seal ASSY front hood LH
(1) Install the part in the same manner as RH side.
3. Installation of the hood insulator
(1) Using 12 clips, install the hood insulator.
4. Adjustment of the hood ASSY (Refer to
)
)ADJUSTMENT

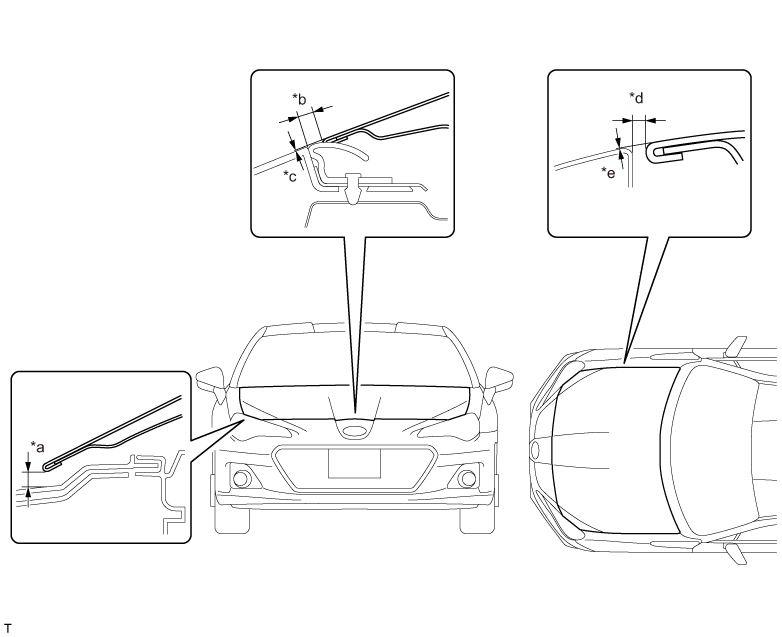

1. Inspection of the hood ASSY (Refer to )
)
2. Adjustment of the hood ASSY
(1) Adjustment of the hood horizontal direction

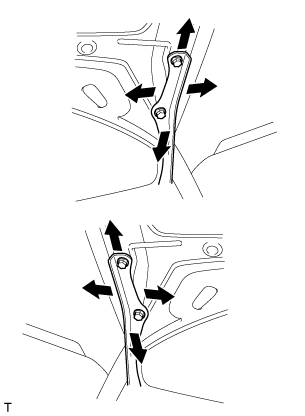

(a) Loosen the bolts of the hood hinge ASSY to adjust.
Standard value:
Standard value:
Tightening torque=25N·m
{
255kgf·cm}
{18.4ft·lbf}
(2) Adjustment of the vertical direction of both sides of the hood's front end

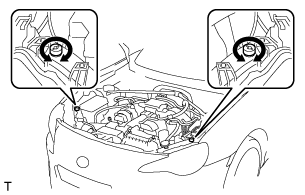

(a) Turn the 2 cushions to adjust the height.
(3) Adjustment of the vertical and left and right directions of the hood's front end.

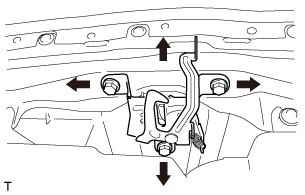

(a) Loosen the 3 bolts to adjust.

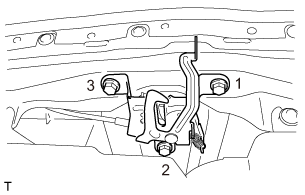

(b) In the order shown in the figure, tighten the 3 bolts.
Standard value:
Standard value:
Tightening torque=33N·m
{
336kgf·cm}
{24.3ft·lbf}

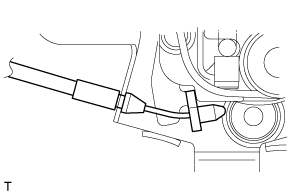

(c) Connect the cable ASSY front hood.
ON-VEHICLE INSPECTION
1. Inspection of the hood ASSY
