Cable ASSY front hood
Components Removal / installation
DOOR / TRUNK
CABLE ASSY FRONT HOOD

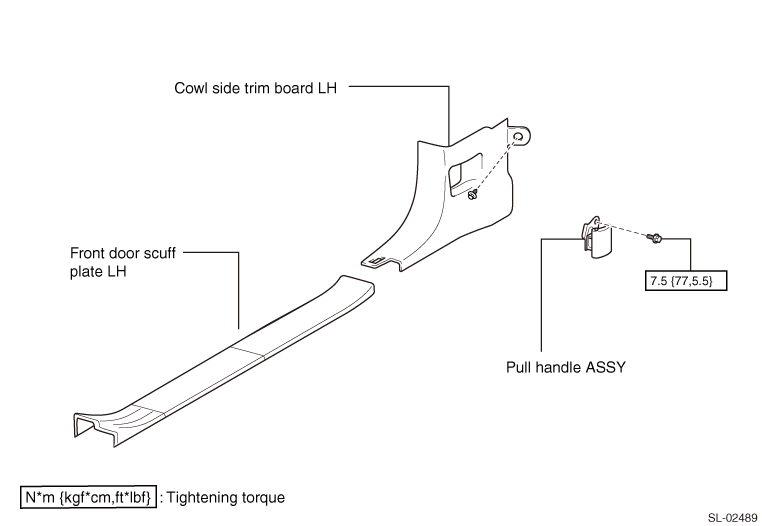

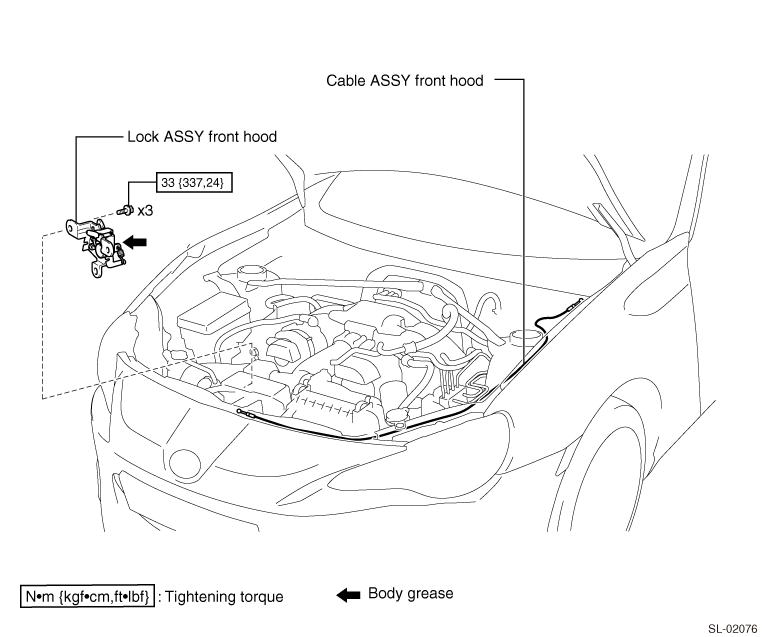

EXPLODED VIEW
REMOVAL
1. Removal of the front door scuff plate RH (Refer to
)
)2. Removal of the cowl side trim board RH (Refer to )
)
3. Removal of the pull handle ASSY

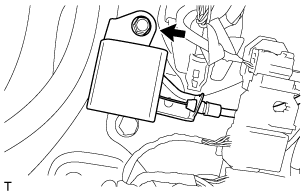

(1) Remove the bolt and remove the pull handle ASSY.
(2) Disconnect the cable ASSY front hood.
4. Removal of the air cleaner case SUB-ASSY (Refer to )
)
5. Removal of the lock ASSY front hood

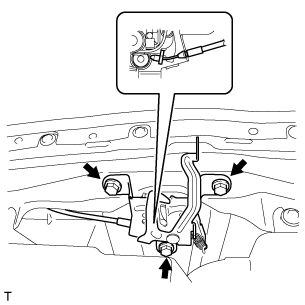

(1) Remove the 3 bolts, and remove the lock ASSY front hood.
(2) Disconnect the cable ASSY front hood.
INSTALLATION

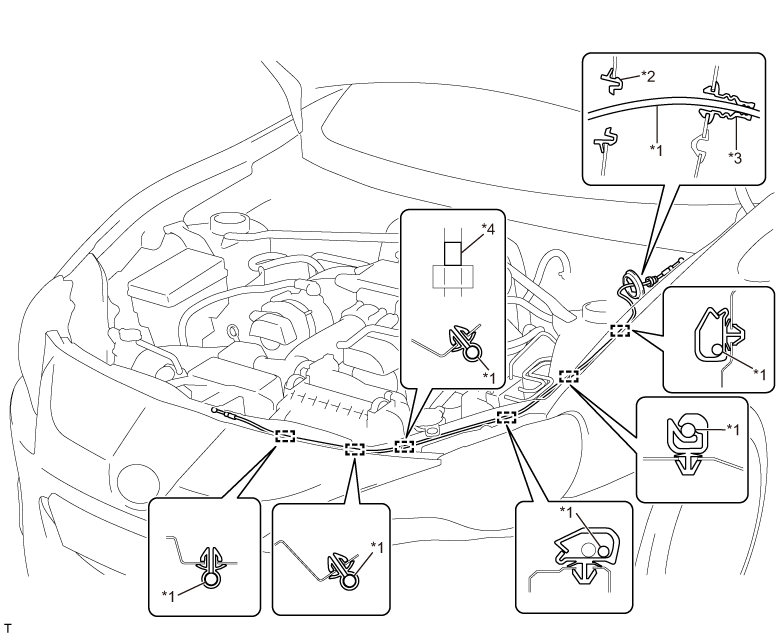

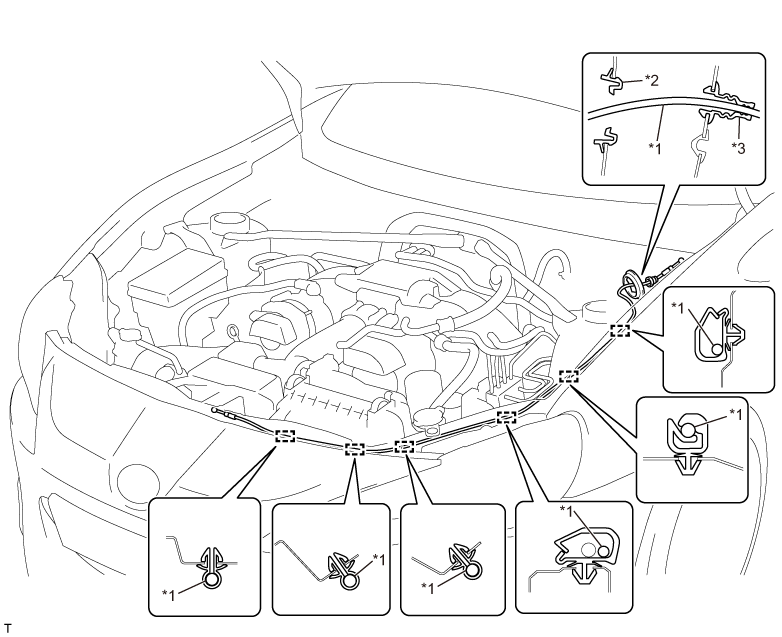

1. Installation of the cable ASSY front hood
2. Installation of the lock ASSY front hood

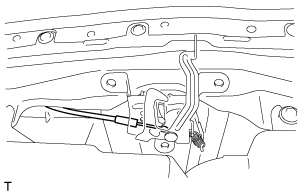

(1) Connect the cable ASSY front hood to the lock ASSY front hood.
(2) Install the lock ASSY front hood with the 3 bolts in the order shown in the figure.
Standard value:
Standard value:
Tightening torque=33N·m
{
336kgf·cm}
{24.3 ft·lbf}
3. Installation of the air cleaner case SUB-ASSY (Refer to )
)4. Installation of the pull handle ASSY
(1) Connect the cable ASSY front hood to the pull handle ASSY.
(2) Using the bolt, install the pull handle ASSY.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
5. Installation of the cowl side trim board RH (Refer to )
)6. Installation of the front door scuff plate RH (Refer to )
)
