Trunk panel
Components Removal / installation
DOOR / TRUNK
TRUNK PANEL

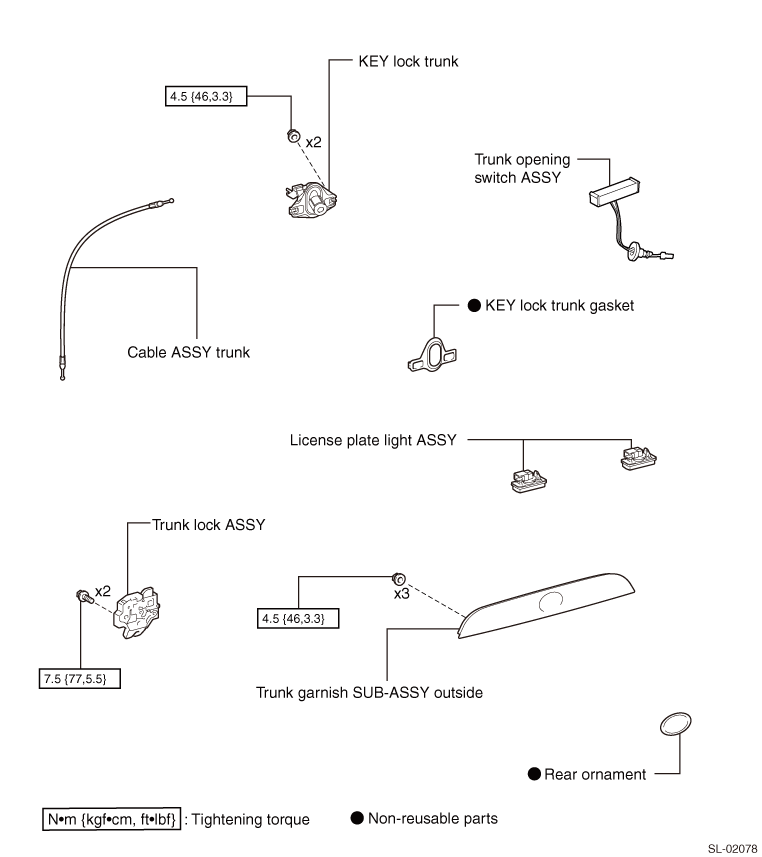

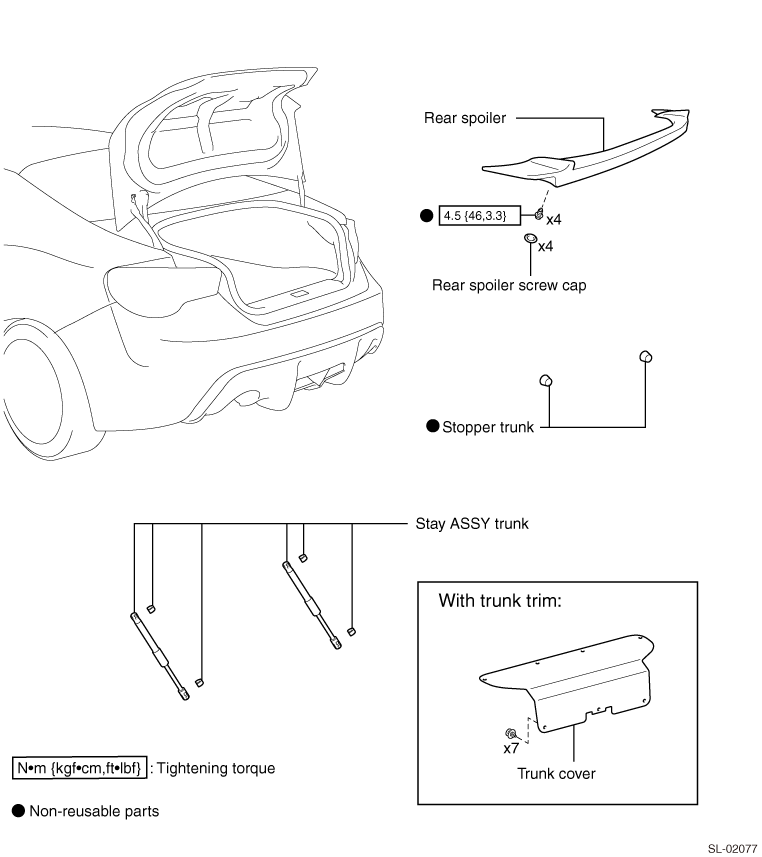

EXPLODED VIEW
DISASSEMBLY

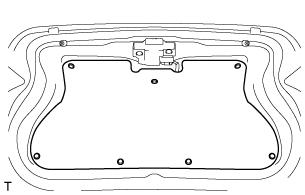

1. Removal of the trunk cover (with trunk trim)
(1) Using a clip remover, remove the 7 clips and remove the trunk cover.

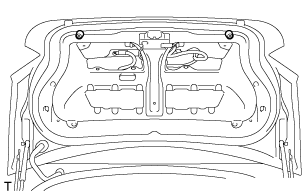

2. Removal of the trunk stoppers
(1) Release the 2 tabs and remove the 2 trunk stoppers.
3. Removal of key lock trunk (Refer to
)
)4. Removal of the trunk lock ASSY (Refer to )
)5. Removal of the cable ASSY trunk (Refer to )
)6. Removal of the trunk garnish SUB-ASSY outside (Refer to )
)7. Removal of the trunk opener switch ASSY (Refer to )
)8. Removal of the rear ornament emblem (installed on the rear) (Refer to )
)9. Removal of the license plate light ASSY (installed on the LH side) (Refer to )
)10. Removal of the license plate light ASSY (installed on the RH side)
NOTE:
Remove the part in the same manner as LH side.
11. Removal of the rear spoiler (if there is a rear spoiler) (Refer to )
)12. Removal of the stay ASSY trunk (Refer to )
)ASSEMBLY
1. Installation of the stay ASSY trunk (Refer to )
)2. Installation of the rear spoiler (if there is a rear spoiler) (Refer to )
)3. Installation of the license plate light ASSY (installed on the LH side) (Refer to )
)4. Installation of the license plate light ASSY (installed on the RH side)
NOTE:
Install the part in the same manner as LH side.
5. Installation of the rear ornament emblem (installed on the rear) (Refer to )
)6. Installation of the trunk opener switch ASSY (Refer to )
)7. Installation of the trunk garnish SUB-ASSY outside (Refer to )
)8. Installation of the cable ASSY trunk (Refer to )
)9. Installation of the trunk lock ASSY (Refer to )
)10. Installation of key lock trunk (Refer to )
)
11. Installation of the trunk stoppers
(1) Fit in the 2 tabs and install the 2 new trunk stoppers.
12. Installation of trunk cover (with trunk trim)
(1) Using 7 clips, install the trunk cover.
ADJUSTMENT

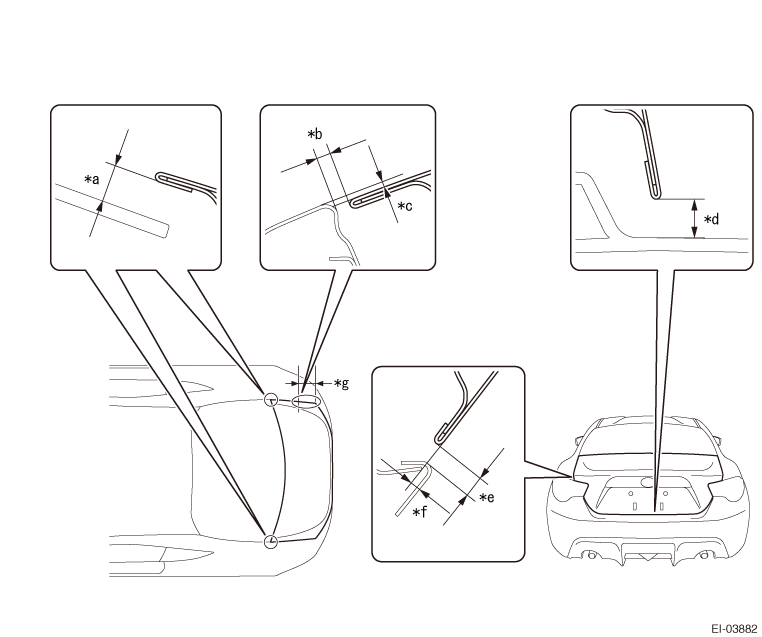

1. Inspection of the hinge ASSY trunk
(1) Inspect if placement dimensions are within the reference values.
Reference values
| *a |
7.8 mm {0.3071 in} |
*b |
2.0 to 5.0 mm {0.0787 to 0.1969 in} |
| *c |
0 mm {0 in} (section of 150 mm {5.906 in} from the back end of the trunk) |
*d |
5.8 to 10.2 mm {0.2283 to 0.4016 in} |
| *e |
4.3 to 7.3 mm {0.1693 to 0.2874 in} |
*f |
-2.0 to 1.0 mm {-0.0787 to 0.0394 in} |
| *g |
150 mm {5.906 in} |
- |
- |
2. Adjustment of the hinge ASSY trunk

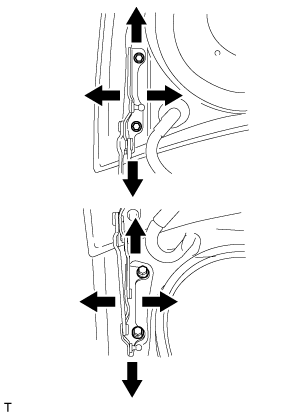

(1) Loosen the bolts before adjusting the door's forward and backward direction, and the side to side direction of the door's front end.
Standard value:
Standard value:
Tightening torque=18N·m
{
184kgf·cm}
{13.3ft·lbf}

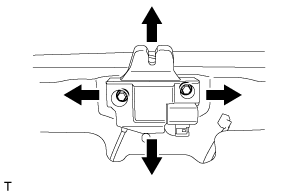

(2) Loosen the bolts before adjusting the side to side direction of the door's rear end and the striker.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
