Cable ASSY fuel
Components Removal / installation
DOOR / TRUNK
CABLE ASSY FUEL

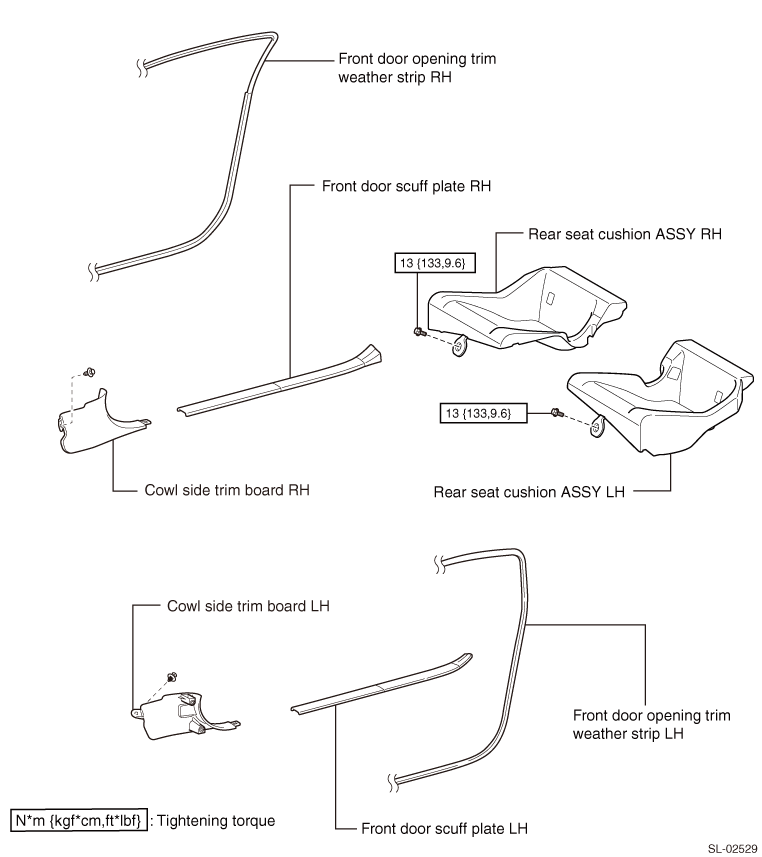

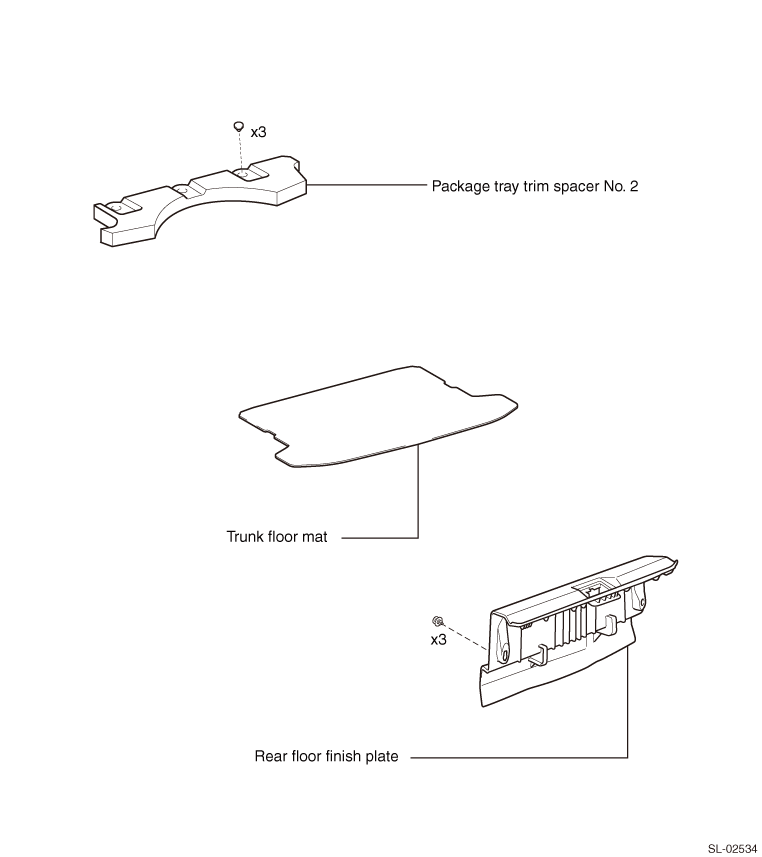

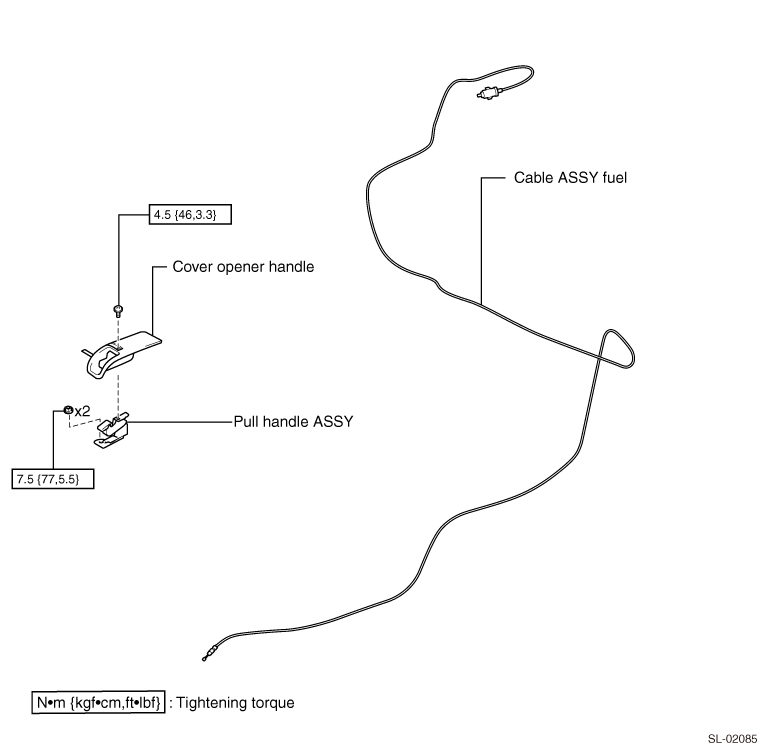

EXPLODED VIEW
REMOVAL
1. Removal of the front door scuff plate LH and cowl side trim board LH (Refer to
)
)2. Disconnection of the front door opening trim weather strip LH
(1) Disconnect the front door opening trim weather strip LH in a range you can work. (Refer to )
)3. Removal of the front door scuff plate RH and cowl side trim board RH (Refer to )
)4. Removal of front door opening trim weather strip RH (Refer to )
)5. Removal of the front seat ASSY (Refer to )
)6. Removal of the rear seat cushion ASSY LH (Refer to )
)7. Removal of the rear seat cushion ASSY RH (Refer to )
)8. Removal of the trunk floor mat
9. Removal of the rear floor finish plate (Refer to )
)

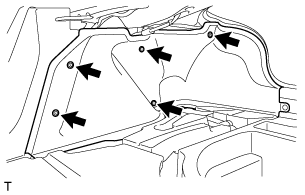

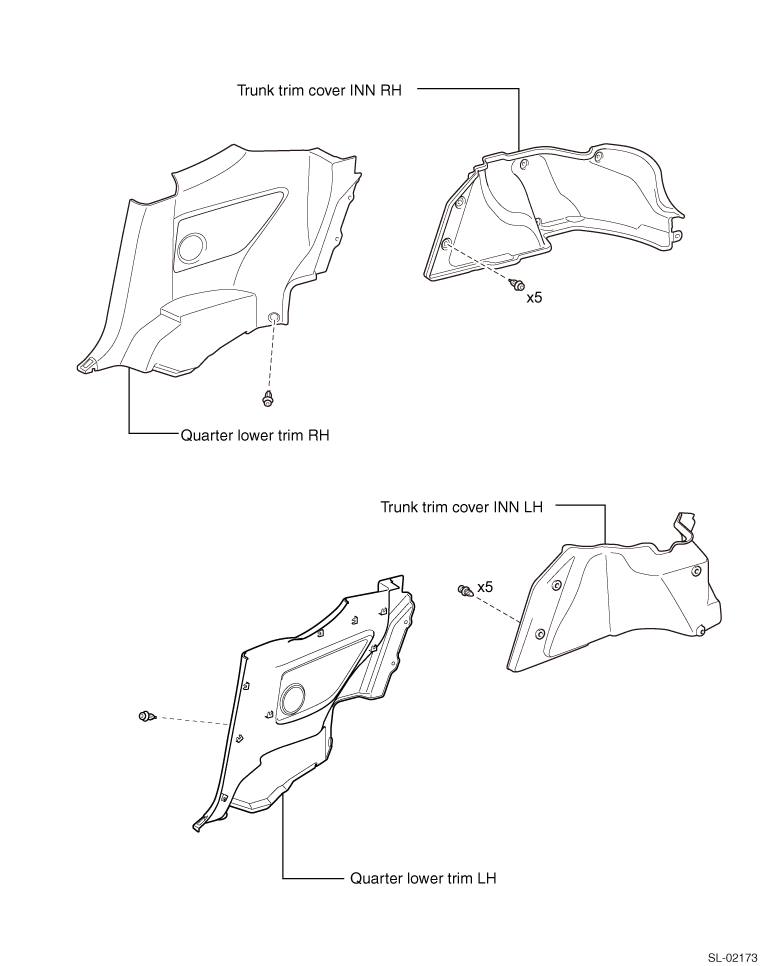

10. Removal of the trunk trim cover INN RH
(1) Using a clip remover, remove the 5 clips and remove the trunk trim cover INN RH.
11. Removal of the trunk trim cover INN LH
NOTE:
Remove the part in the same manner as RH side.
12. Removal of quarter lower trim LH (Refer to )
)13. Removal of quarter lower trim RH (Refer to )
)

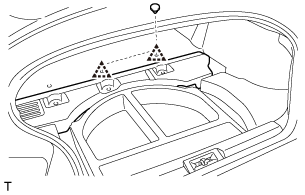

14. Removal of the package tray trim spacer NO. 2
(1) Using a clip remover, remove the 3 clips and remove the package tray trim spacer NO. 2.

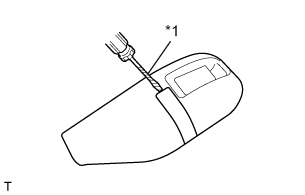

15. Removal of the cover opener handle
16. Removal of the pull handle ASSY
(1) Turn over the floor carpet.
NOTE:
Turn over the floor carpet to a range where you can install and remove the cable ASSY fuel.

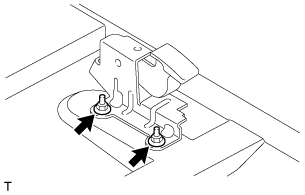

(2) Remove 2 nuts and remove the pull handle ASSY.

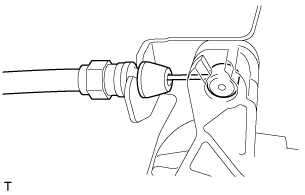

(3) Remove the cable ASSY fuel from the pull handle ASSY.
INSTALLATION
1. Installation of cable ASSY fuel

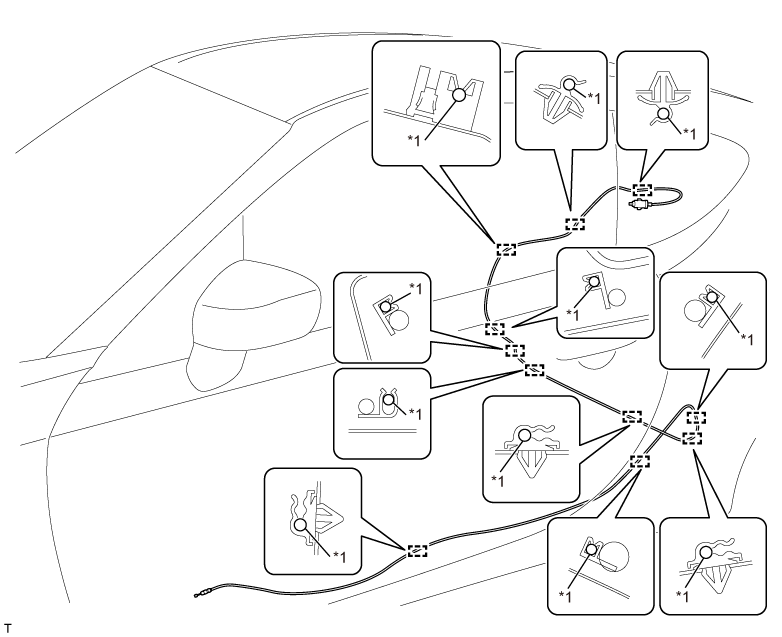

(1) Engage the each clamp and install the cable ASSY fuel.

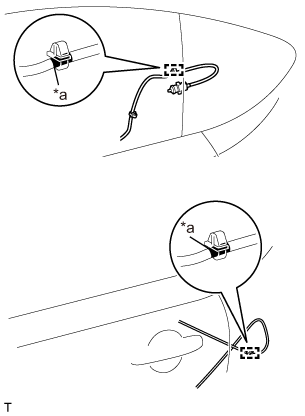

(2) Check that the center of the cable ASSY fuel marking tape matches the center of the clamps in the figure.
CAUTION:
Make sure there are no twists in the cable ASSY fuel.
Captions in illustration
| *a |
Alignment marks |

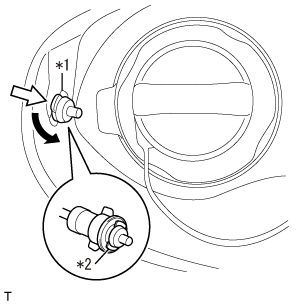

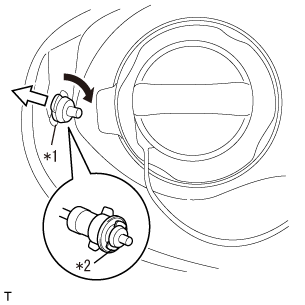

(3) As in the figure, align the guide of the cable ASSY fuel with the cutout on the body side, and turn in the direction of the arrow to install the cable ASSY fuel.
Captions in illustration
| *1 |
Cutout |
| *2 |
Guide |
(4) Return the floor carpet to its original position.
2. Installation of the pull handle ASSY
(1) Install the cable ASSY fuel on the pull handle ASSY.
(2) Using 2 nuts, install the pull handle ASSY.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
(3) Return the floor carpet to its original position.
3. Installation of the cover opener handle

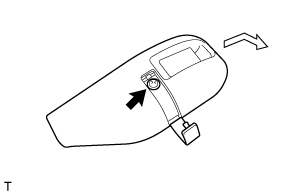

(1) Slide the cover opener handle towards the rear, and install on the cable ASSY fuel.
(2) Install the cover opener handle with the screw.
Standard value:
Standard value:
Tightening torque=4.5N·m
{
46kgf·cm}
{3.3ft·lbf}
4. Installation of the package tray trim spacer NO. 2
(1) Using 3 clips, install the package tray trim spacer NO. 2
5. Installation of the quarter lower trim LH (Refer to )
)6. Installation of the quarter lower trim RH (Refer to )
)7. Installation of the trunk trim cover INN RH
(1) Using 5 clips, install the trunk trim cover INN RH.
8. Installation of the trunk trim cover INN LH
NOTE:
Install the part in the same manner as RH side.
9. Installation of the rear floor finish plate (Refer to )
)10. Installation of the trunk floor mat
11. Installation of the rear seat cushion ASSY RH (Refer to )
)12. Installation of the rear seat cushion ASSY LH (Refer to )
)13. Installation of the front seat ASSY LH, RH (Refer to )
)14. Connection of the front door opening trim weather strip LH, RH (Refer to )
)15. Installation of the front door scuff plate LH, RH and cowl side trim board LH, RH (Refer to )
)
