Trunk electrical key switch
Components Inspection Removal / installation
DOOR / TRUNK
TRUNK ELECTRICAL KEY SWITCH

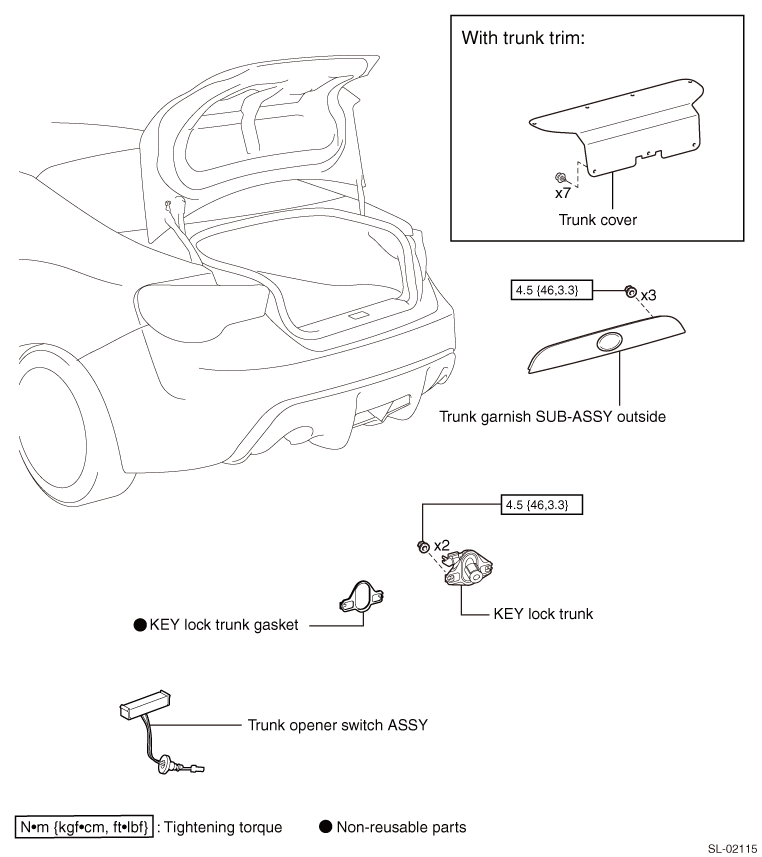

EXPLODED VIEW
REMOVAL
1. Removal of trunk cover (with trunk trim) (Refer to
)
)2. Removal of key lock trunk (Refer to )
)3. Removal of the trunk garnish SUB-ASSY outside (Refer to )
)

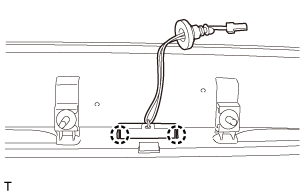

4. Removal of the trunk opener switch ASSY
(1) Release the 2 tabs and remove the trunk opener switch ASSY.
INSTALLATION
1. Installation of the trunk opener switch ASSY
(1) Fit in the 2 tabs and install the trunk opener switch ASSY.
2. Installation of the trunk garnish SUB-ASSY outside (Refer to )
)3. Installation of key lock trunk (Refer to )
)4. Installation of trunk cover (with trunk trim) (Refer to )
)UNIT INSPECTION
1. Inspection of the trunk opener switch ASSY
(1) Inspection of the trunk opener switch ASSY
(a) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| 2 - 1 |
When the switch is not in use (OFF) |
10 kΩ or more |
| 2 - 1 |
When the switch is in use (ON) |
Less than 1 Ω |

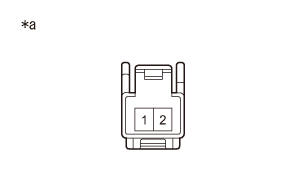

Captions in illustration
| *a |
Connector not connected (Trunk opener switch ASSY) |
