Trunk opening switch ASSY
Components Inspection Removal / installation
DOOR / TRUNK
TRUNK OPENING SWITCH ASSY

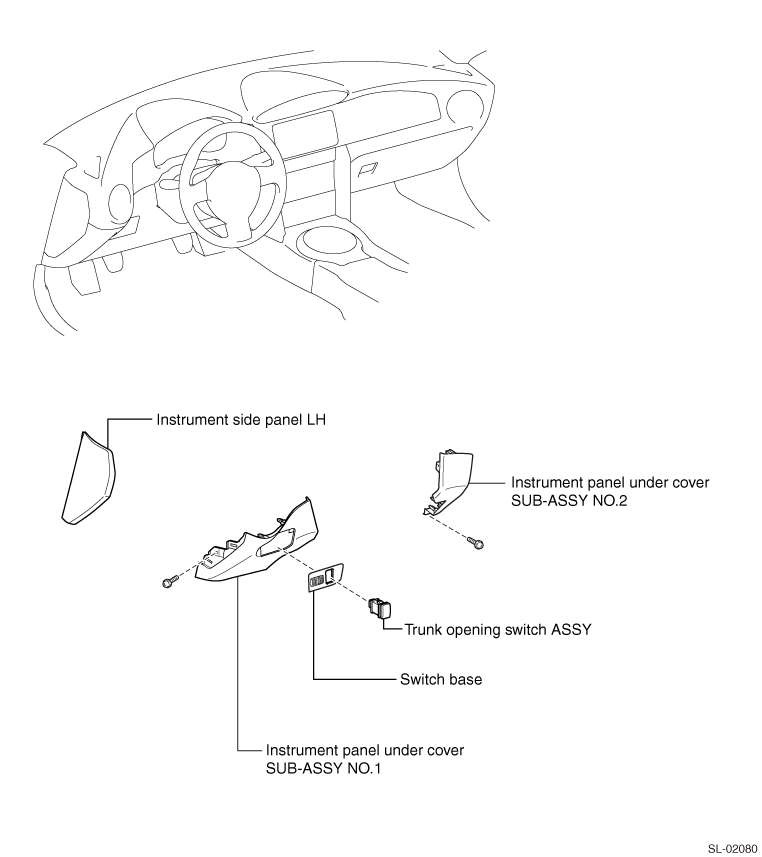

EXPLODED VIEW
REMOVAL
1. Removal of instrument side panel LH (Refer to
)
)2. Removal of instrument panel under cover SUB-ASSY NO.1 (Refer to )
)3. Removal of instrument panel under cover SUB-ASSY NO.2 (Refer to )
)4. Removal of the knee airbag module (Refer to )
)
5. Removal of the trunk opening switch ASSY

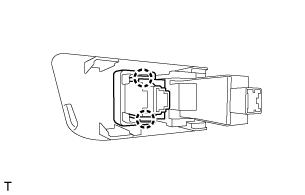

(1) Release the 2 tabs and remove the trunk opening switch ASSY.
INSTALLATION
1. Installation of the trunk opening switch ASSY
(1) Fit in the 2 tabs and install the trunk opening switch ASSY.
2. Installation of the knee airbag module (Refer to )
)3. Installation of instrument panel under cover SUB-ASSY NO.2 (Refer to )
)4. Installation of instrument panel under-cover SUB-ASSY NO.1 (Refer to )
)5. Installation of the instrument side panel LH (Refer to )
)UNIT INSPECTION
1. Inspection of the trunk opening switch ASSY
(1) Inspection of the trunk opening switch ASSY
(a) Check the resistance between the connector terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| 4 - 1 |
When the switch is not in use (OFF) |
10 kΩ or more |
| 4 - 1 |
When the switch is in use (ON) |
Less than 1 Ω |

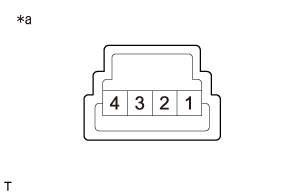

Captions in illustration
| *a |
Connector not connected (Trunk opening switch ASSY) |
