OUTER MIRROR
OUTER REAR-VIEW MIRROR

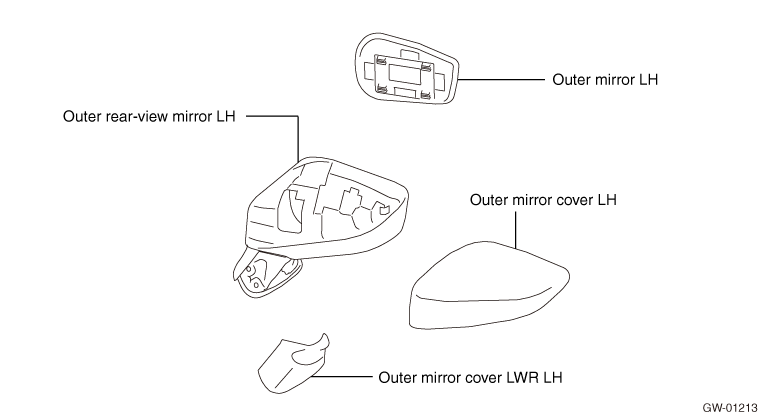

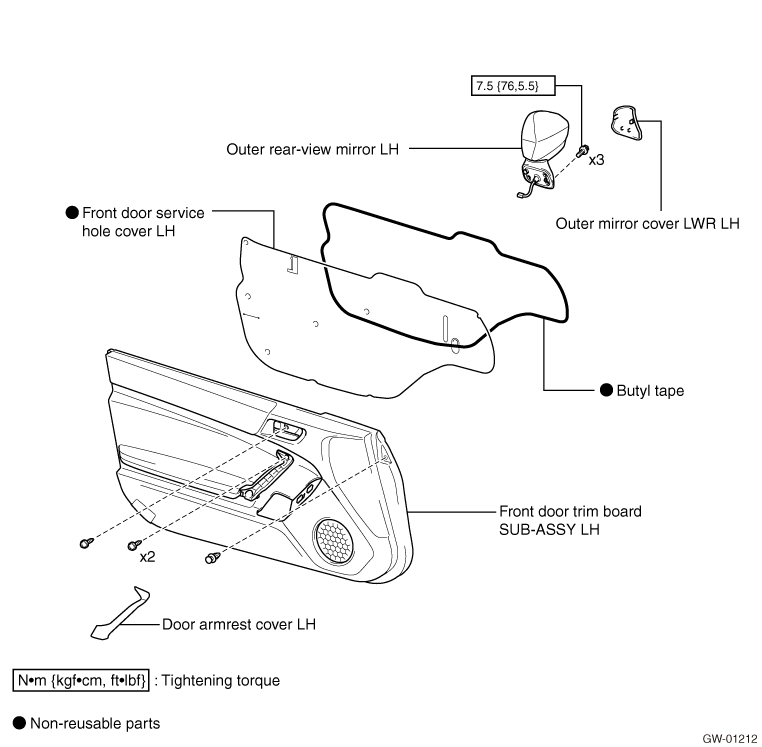

EXPLODED VIEW


REMOVAL
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
4. Removal of the outer mirror cover LWR LH
5. Removal of the outer rear-view mirror LH

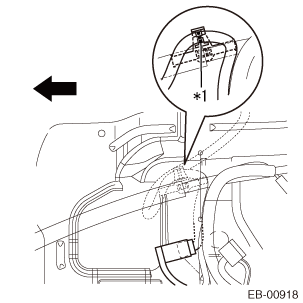

(1) Disconnect the connector.

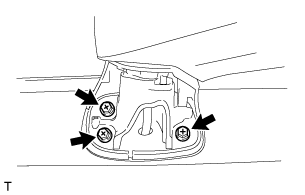

(2) Remove the 3 bolts and remove the outer rear-view mirror LH.
DISASSEMBLY
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Removal of the outer mirror cover LH

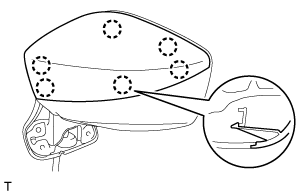

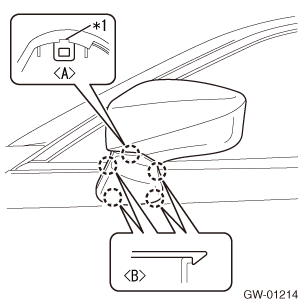

(1) Release the 6 tabs and remove the outer mirror cover LH.
ASSEMBLY
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
2. Installation of the outer mirror cover LH
(1) Fit in the 6 tabs and install the outer mirror cover LH.
INSTALLATION
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Installation of the outer rear-view mirror LH

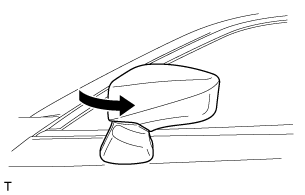

(1) Retract the outer rear-view mirror LH.
(2) Using 3 bolts, install the outer rear view mirror LH.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
76kgf·cm}
{5.5ft·lbf}
2. Installation of the outer mirror cover LWR LH
(1) Fit in the 5 tabs and install the outer mirror cover LWR LH.
UNIT INSPECTION
1. Inspection of the outer rear-view mirror RH
(1) Operation inspection for electric retraction (with electric retractable mirror)
(a) Inspect operation when battery voltage is applied between connector terminals.
Criteria
Criteria
Criteria
Criteria
Criteria
*a: Forward retracting position
| Battery connection |
Operation direction |
|---|---|
| Battery positive → 2 (MFR) Battery ground → 6 (MRR) |
Retracting direction (stops at retracting position) |
| Battery positive → 6 (MRR) Battery ground → 2 (MFR) |
Do not operate |
*b: Between the forward retracting position and driving position
| Battery connection |
Operation direction |
|---|---|
| Battery positive → 2 (MFR) Battery ground → 6 (MRR) |
Retracting direction (stops at retracting position) |
| Battery positive → 6 (MRR) Battery ground → 2 (MFR) |
Forward retracting direction (stops at forward retracting position) |
*c: Driving position
| Battery connection |
Operation direction |
|---|---|
| Battery positive → 2 (MFR) Battery ground → 6 (MRR) |
Retracting direction (stops at retracting position) |
| Battery positive → 6 (MRR) Battery ground → 2 (MFR) |
Do not operate |
*d: Between the driving position and retracting position
| Battery connection |
Operation direction |
|---|---|
| Battery positive → 2 (MFR) Battery ground - 6 (MRR) |
Retracting direction (stops at retracting position) |
| Battery positive → 6 (MRR) Battery ground → 2 (MFR) |
Return direction (stops at driving position) |
*e: Retracting position
| Battery connection |
Operation direction |
|---|---|
| Battery positive → 2 (MFR) Battery ground → 6 (MRR) |
Do not operate |
| Battery positive → 6 (MRR) Battery ground → 2 (MFR) |
Return direction (stops at driving position) |

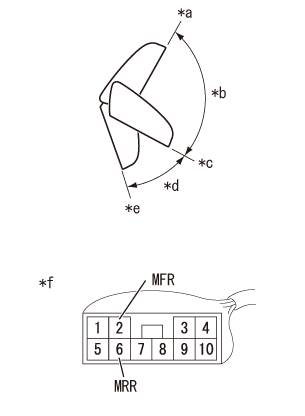

Captions in illustration
| *a |
Forward retracting position |
| *b |
Between the forward retracting position and driving position |
| *c |
Driving position |
| *d |
Between the driving position and retracting position |
| *e |
Retracting position |
| *f |
Connector not connected (Outer rear-view mirror RH) |
CAUTION:
When performing the same inspection repeatedly, shut down the battery voltage feed once before proceeding. With the battery connected, inspection procedure cannot be performed even if the mirror is pushed by hand.
(2) Operation inspection for the mirror surface position
(a) Inspect operation when battery voltage is applied between connector terminals.
Criteria
| Battery connection |
Operation direction |
|---|---|
| Battery positive → 3 (MR+) Battery ground → 8 (MV) |
Upward |
| Battery positive → 8 (MV) Battery ground → 3 (MR+) |
Downward |
| Battery positive → 3 (MR+) Battery ground → 7 (MH) |
Rightward |
| Battery positive → 7 (MH) Battery ground → 3 (MR+) |
Leftward |

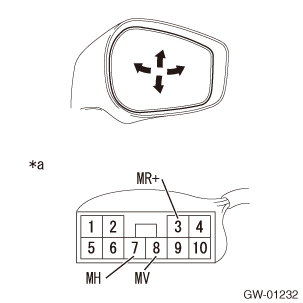

Captions in illustration
| *a |
Connector not connected (Outer rear-view mirror RH) |
2. Inspection of the outer rear-view mirror LH
(1) Operation inspection for electric retraction (with electric retractable mirror)
(a) Inspect operation when battery voltage is applied between connector terminals.
Criteria
Criteria
Criteria
Criteria
Criteria
*a: Forward retracting position
| Battery connection |
Operation direction |
|---|---|
| Battery positive → 2 (MFL) Battery ground → 6 (MRL) |
Retracting direction (stops at retracting position) |
| Battery positive → 6 (MRL) Battery ground → 2 (MFL) |
Do not operate |
*b: Between the forward retracting position and driving position
| Battery connection |
Operation direction |
|---|---|
| Battery positive → 2 (MFL) Battery ground → 6 (MRL) |
Retracting direction (stops at retracting position) |
| Battery positive → 6 (MRL) Battery ground → 2 (MFL) |
Forward retracting direction (stops at forward retracting position) |
*c: Driving position
| Battery connection |
Operation direction |
|---|---|
| Battery positive → 2 (MFL) Battery ground → 6 (MRL) |
Retracting direction (stops at retracting position) |
| Battery positive → 6 (MRL) Battery ground → 2 (MFL) |
Do not operate |
*d: Between the driving position and retracting position
| Battery connection |
Operation direction |
|---|---|
| Battery positive → 2 (MFL) Battery ground → 6 (MRL) |
Retracting direction (stops at retracting position) |
| Battery positive → 6 (MRL) Battery ground → 2 (MFL) |
Return direction (stops at driving position) |
*e: Retracting position
| Battery connection |
Operation direction |
|---|---|
| Battery positive → 2 (MFL) Battery ground → 6 (MRL) |
Do not operate |
| Battery positive → 6 (MRL) Battery ground → 2 (MFL) |
Return direction (stops at driving position) |

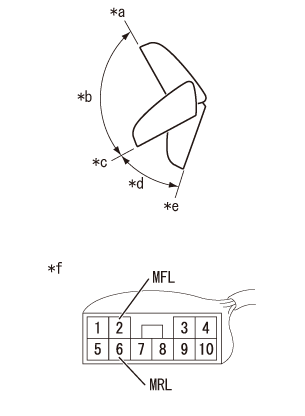

Captions in illustration
| *a |
Forward retracting position |
| *b |
Between the forward retracting position and driving position |
| *c |
Driving position |
| *d |
Between the driving position and retracting position |
| *e |
Retracting position |
| *f |
Connector not connected (Outer rear-view mirror LH) |
CAUTION:
When performing the same inspection repeatedly, shut down the battery voltage feed once before proceeding. With the battery connected, inspection procedure cannot be performed even if the mirror is pushed by hand.
(2) Operation inspection for the mirror surface position
(a) Inspect operation when battery voltage is applied between connector terminals.
Criteria
| Battery connection |
Operation direction |
|---|---|
| Battery positive → 3 (ML+) Battery ground → 8 (MV) |
Upward |
| Battery positive → 8 (MV) Battery ground → 3 (ML+) |
Downward |
| Battery positive → 3 (ML+) Battery ground → 7 (MH) |
Rightward |
| Battery positive → 7 (MH) Battery ground → 3 (ML+) |
Leftward |

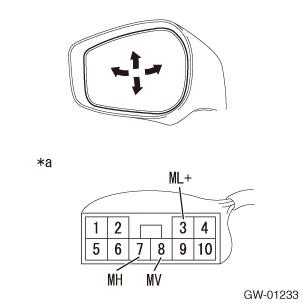

Captions in illustration
| *a |
Connector not connected (Outer rear-view mirror LH) |
