Outer rear-view mirror glass
Components Removal / installation
OUTER MIRROR
OUTER REAR-VIEW MIRROR GLASS

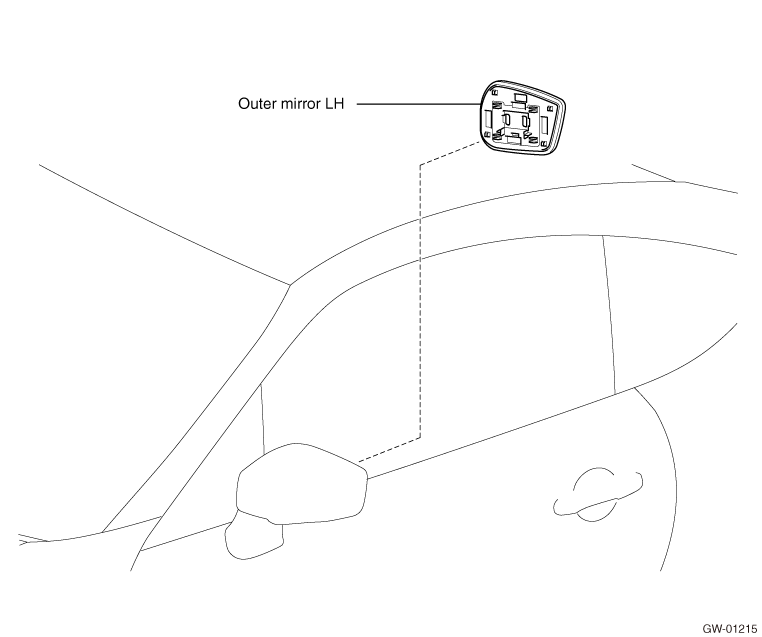

EXPLODED VIEW
REMOVAL
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Removal of the outer mirror LH

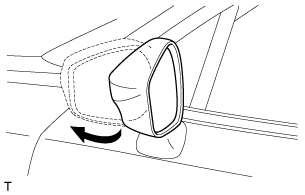

(1) As shown in the figure, tilt the outer rear-view mirror LH in the forward retracting direction.
(2) Push the inside of the mirror surface and face the mirror surface towards the interior of the vehicle.

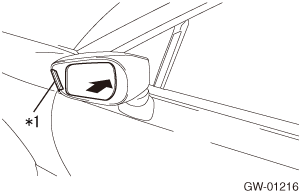

(3) Apply protective tape to the location in the figure.
Captions in illustration
| *1 |
Protective tape |

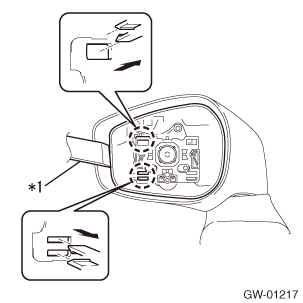

(4) Using a molding remover, release the 2 tabs.
CAUTION:
Be careful not to pull the outer mirror LH with excessive force, as this may disconnect the actuator mechanism or crack the mirror.
| *1 |
Molding remover |
(5) When there is no mirror heater:

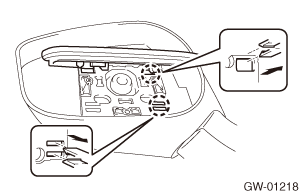

(a) Release the 2 tabs and remove the outer mirror LH.
(6) With a mirror heater:

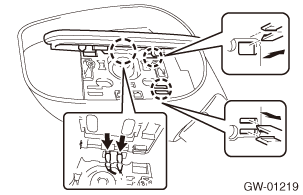

(a) Release the 2 tabs.
(b) Disconnect the 2 connectors and remove the outer mirror LH.
INSTALLATION
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Installation of the outer mirror LH
(1) When there is no mirror heater:

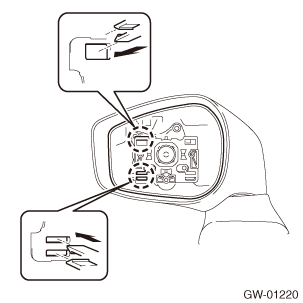

(a) Fit in the 2 claws.
(2) With a mirror heater:
(a) Connect the 2 connectors.
(b) Fit in the 2 claws.
(3) Fit in the 2 tabs and install the outer mirror LH.
CAUTION:
Be careful not to push the outer rear-view mirror glass with excessive force, as this may crack the mirror.

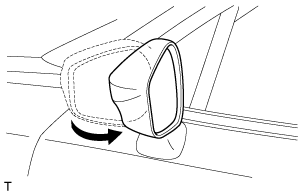

(4) Push the outer rear-view mirror LH in the direction shown in the figure.
