OUTER MIRROR
OUTER MIRROR SWITCH

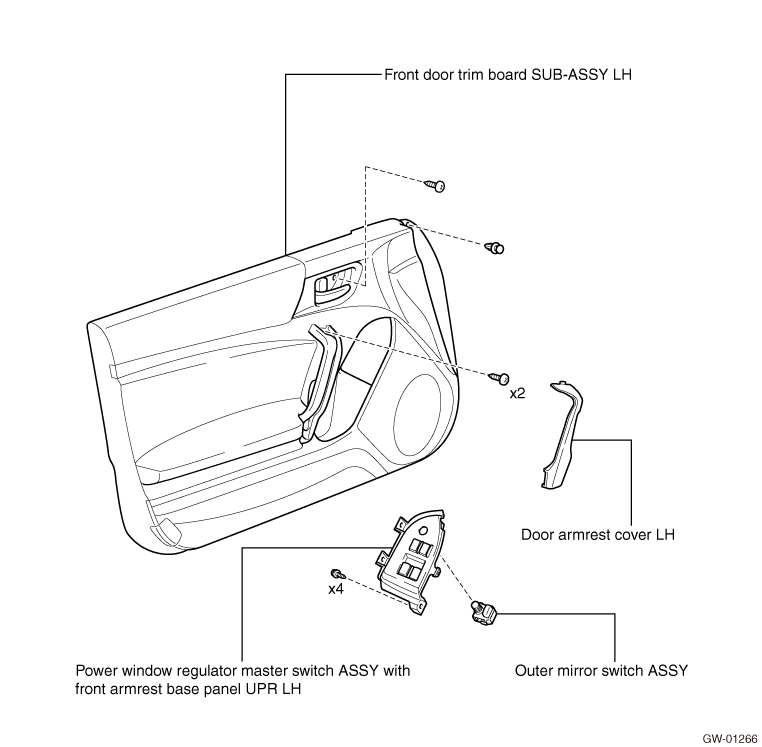

EXPLODED VIEW
REMOVAL

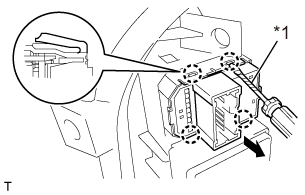

1. Removal of the door armrest cover LH (Refer to
)
)2. Removal of the front door trim board SUB-ASSY LH (Refer to )
)3. Removal of the power window regulator master switch ASSY W/ front armrest base panel UPR LH (Refer to )
)
INSTALLATION
1. Installation of the outer mirror switch ASSY

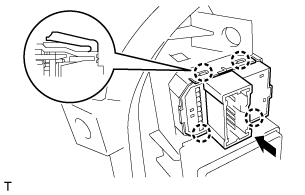

(1) Fit in the 4 tabs and install the outer mirror switch ASSY.
2. Installation of the power window regulator master switch ASSY W/ front armrest base panel UPR LH (Refer to )
)3. Installation of the front door trim board SUB-ASSY LH (Refer to )
)4. Installation of the door armrest cover LH (Refer to )
)UNIT INSPECTION
1. Inspection of the outer mirror switch ASSY (RHD model)
(1) Resistance check
(a) Measure the resistance between connector terminals when each switch is operated.
Resistance
Retracting switch
| Inspection terminals (Terminal symbol) |
Inspection conditions |
Standard value |
|---|---|---|
| 1 (B) - 6 (MFR) 3 (MRR) - 7 (E) |
Retracting position |
Less than 1 Ω |
| 1 (B) - 3 (MRR) 6 (MFR) - 7 (E) |
Returning position |
Less than 1 Ω |
Resistance
Positioning switch (Side to side changing switch, left side)
| Inspection terminals (Terminal symbol) |
Inspection conditions |
Standard value |
|---|---|---|
| 1 (B) - 14 (ML+) 10 (VL) - 7 (E) |
Hold down the “Up” switch |
Less than 1 Ω |
| 1 (B) - 10 (VL) 14 (ML+) - 7 (E) |
Hold down the “Down” switch |
Less than 1 Ω |
| 1 (B) - 8 (HL) 14 (ML+) - 7 (E) |
Hold down the “Left” switch |
Less than 1 Ω |
| 1 (B) - 14 (ML+) 8 (HL) - 7 (E) |
Hold down the “Right” switch |
Less than 1 Ω |
Resistance
Positioning switch (Side to side changing switch, right side)
| Inspection terminals (Terminal symbol) |
Inspection conditions |
Standard value |
|---|---|---|
| 1 (B) - 12 (MR+) 11 (VR) - 7 (E) |
Hold down the “Up” switch |
Less than 1 Ω |
| 1 (B) - 11 (VR) 12 (MR+) - 7 (E) |
Hold down the “Down” switch |
Less than 1 Ω |
| 1 (B) - 9 (HR) 12 (MR+) - 7 (E) |
Hold down the “Left” switch |
Less than 1 Ω |
| 1 (B) - 12 (MR+) 9 (HR) - 7 (E) |
Hold down the “Right” switch |
Less than 1 Ω |

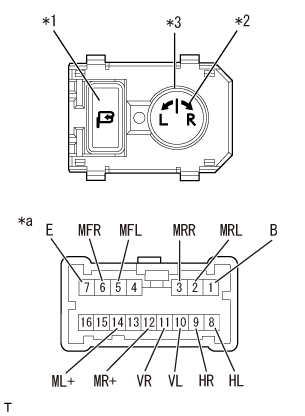

Captions in illustration
| *1 |
Retracting switch |
| *2 |
Positioning switch |
| *3 |
Side to side changing switch |
| *a |
Connector not connected (Outer mirror switch ASSY) |
2. Inspection of the outer mirror switch ASSY (LHD model)
(1) Resistance check
(a) Measure the resistance between connector terminals when each switch is operated.
Resistance
Retracting switch
| Inspection terminals (Terminal symbol) |
Inspection conditions |
Standard value |
|---|---|---|
| 1 (B) - 6 (MFR) 3 (MRR) - 7 (E) |
Retracting position |
Less than 1 Ω |
| 1 (B) - 3 (MRR) 6 (MFR) - 7 (E) |
Returning position |
Less than 1 Ω |
Resistance
Positioning switch (Side to side changing switch, left side)
| Inspection terminals (Terminal symbol) |
Inspection conditions |
Standard value |
|---|---|---|
| 1 (B) - 14 (ML+) 10 (VL) - 7 (E) |
Hold down the “Up” switch |
Less than 1 Ω |
| 1 (B) - 10 (VL) 14 (ML+) - 7 (E) |
Hold down the “Down” switch |
Less than 1 Ω |
| 1 (B) - 8 (HL) 14 (ML+) - 7 (E) |
Hold down the “Left” switch |
Less than 1 Ω |
| 1 (B) - 14 (ML+) 8 (HL) - 7 (E) |
Hold down the “Right” switch |
Less than 1 Ω |
Resistance
Positioning switch (Side to side changing switch, right side)
| Inspection terminals (Terminal symbol) |
Inspection conditions |
Standard value |
|---|---|---|
| 1 (B) - 12 (MR+) 11 (VR) - 7 (E) |
Hold down the “Up” switch |
Less than 1 Ω |
| 1 (B) - 11 (VR) 12 (MR+) - 7 (E) |
Hold down the “Down” switch |
Less than 1 Ω |
| 1 (B) - 9 (HR) 12 (MR+) - 7 (E) |
Hold down the “Left” switch |
Less than 1 Ω |
| 1 (B) - 12 (MR+) 9 (HR) - 7 (E) |
Hold down the “Right” switch |
Less than 1 Ω |

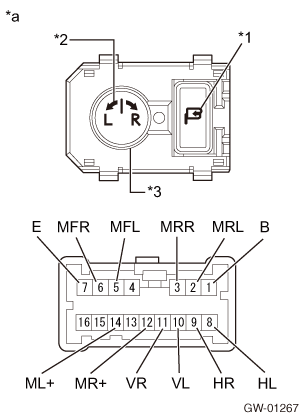

Captions in illustration
| *1 |
Retracting switch |
| *2 |
Positioning switch |
| *3 |
Side to side changing switch |
| *a |
Connector not connected (Outer mirror switch ASSY) |
