Relay
Inspection
OUTER MIRROR
RELAY
UNIT INSPECTION
1. Inspection of the MIR HTR relay
(1) Measure the resistance between connector terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| 3 - 5 |
When battery voltage is not applied between terminals 1 and 2. |
10 kΩ or more |
| When battery voltage is applied between terminals 1 and 2. |
Less than 1 Ω |

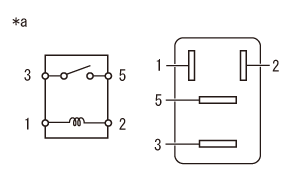

Captions in illustration
| *a |
Relay not connected (MIR HTR relay) |
