Wiper & washer system

Precautions Parts location System information Troubleshooting

WIPERS & WASHERS

WIPER & WASHER SYSTEM

PRECAUTIONS

1. Precautions when handling the washer nozzle

(1) Using a thin flat tip screwdriver wrapped with protective tape, the washer spray location can be adjusted.

CAUTION:

Because it may damage the washer nozzle discharge port and cause the washer liquid not to be sprayed correctly, do not insert a screwdriver into the washer nozzle discharge port.

(2) If something, such as wax, is clogging the washer nozzle, use a soft plastic brush or something similar to clean it out.

PARTS LOCATION

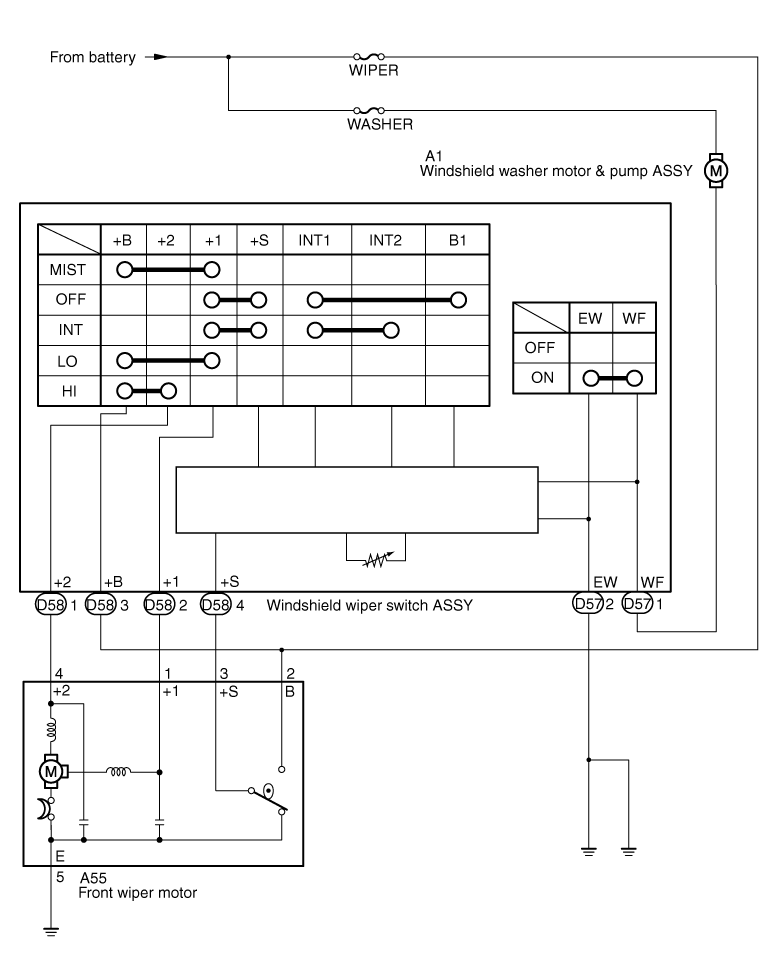

SYMPTOM TABLE

Front wipers & washers

Symptoms	Inspection items	Reference pages
Wipers and washers do not operate.	WIPER fuse, WASHER fuse	-
	Windshield wiper switch ASSY
	Vehicle wiring harness and connector	-
Wipers do not operate on LO.	Windshield wiper switch ASSY
	Front wiper motor
	Vehicle wiring harness and connector	-
Wipers do not operate on HI.	Windshield wiper switch ASSY
	Front wiper motor
	Vehicle wiring harness and connector	-
Wipers do not operate on INT.	Windshield wiper switch ASSY
	Windshield wiper switch ASSY (operation inspection)
	Front wiper motor
	Vehicle wiring harness and connector	-
Washer motor does not operate.	WASHER fuse	-
	Windshield wiper switch ASSY
	Windshield washer motor & pump ASSY
	Vehicle wiring harness and connector	-
When the washer switch is turned ON, and the washer fluid is sprayed, the wipers don't operate.	Windshield wiper switch ASSY
	Front wiper motor
	Vehicle wiring harness and connector	-
Washer fluid isn't sprayed.	Washer hose and nozzle	-
