Washer tank
Removal / installation
WIPERS & WASHERS
WASHER TANK

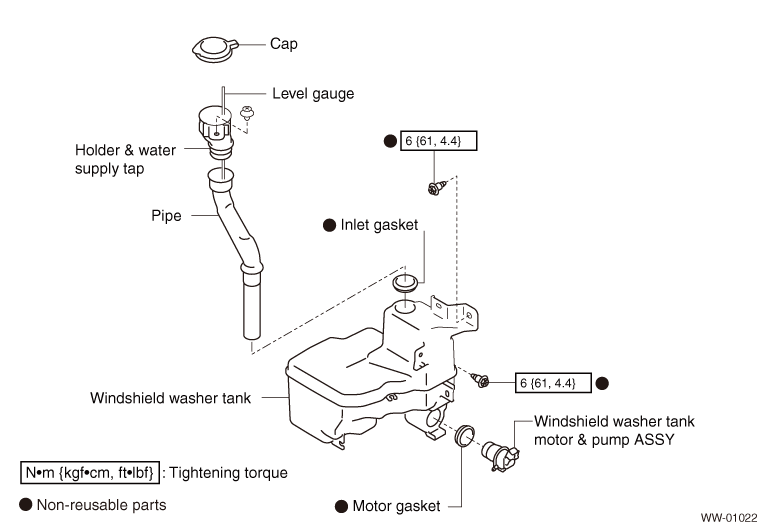

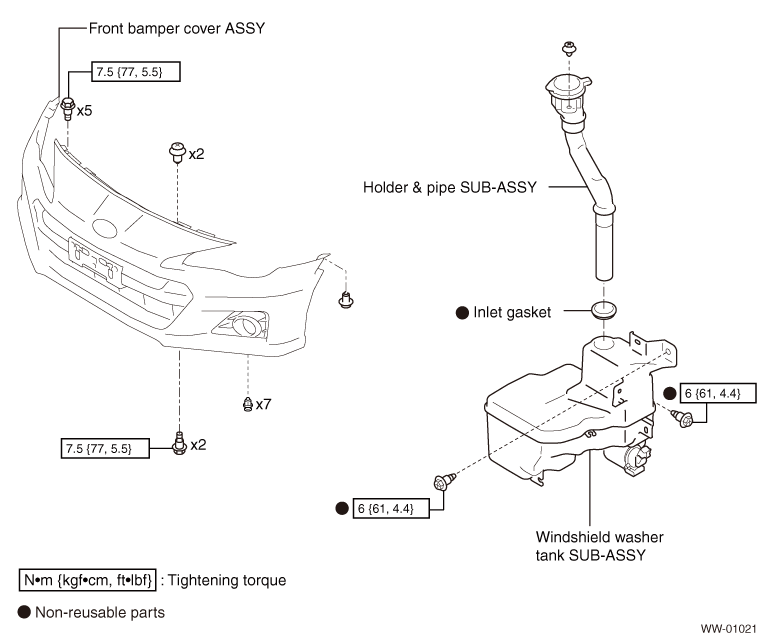

EXPLODED VIEW
REMOVAL
1. Removal of the front bumper cover (Refer to
)
)2. Draining of the washer fluid (Refer to )
)3. Removal of the windshield washer motor & pump ASSY (Refer to )
)4. Removal of the windshield washer tank
(1) Remove the clip.
(2) Remove the holder & pipe SUB-ASSY from the windshield washer tank.
(3) Remove the 2 bolts, and remove the windshield washer tank.
INSTALLATION
1. Installation of the windshield washer tank
(1) Using 2 new bolts, install the windshield washer tank.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
(2) Replace the inlet gasket with a new one, and install the holder & pipe SUB-ASSY.
(3) Install the clip.
Standard value:
Standard value:
Tightening torque=6N·m
{
61kgf·cm}
{4.4ft·lbf}
2. Refilling washer fluid (Refer to )
)3. Installation of the windshield washer motor & pump ASSY (Refer to )
)4. Installation of the front bumper cover (Refer to )
)
