Washer motor
Components Inspection Removal / installation
WIPERS & WASHERS
WASHER MOTOR

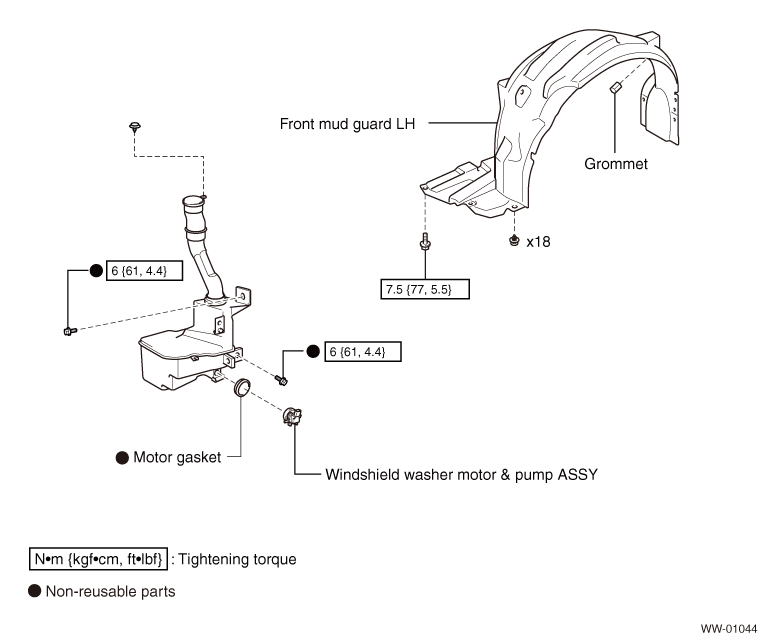

EXPLODED VIEW
REMOVAL
1. Removal of the front tire LH

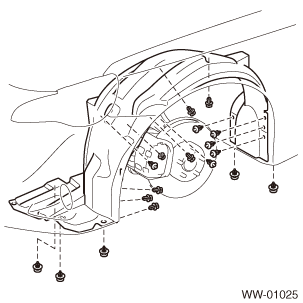

2. Removal of the front mud guard LH
3. Draining of the washer fluid

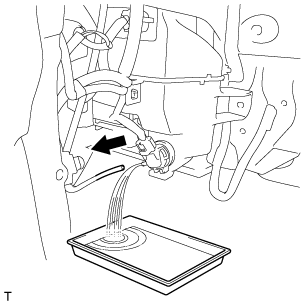

(1) Disconnect the washer hose and drain the washer fluid.
NOTE:
Prepare a receptacle beforehand.
4. Removal of the windshield washer motor & pump ASSY

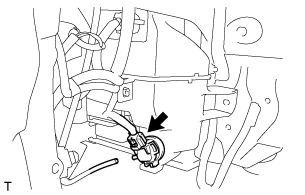

(1) Disconnect the connector.

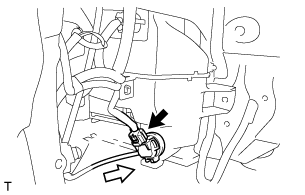

(2) Remove the windshield washer motor & pump ASSY.
INSTALLATION
1. Installation of the windshield washer motor & pump ASSY
(1) Install the windshield washer motor & pump ASSY.
(2) Connect the connector.
(3) Connect the washer hose.
2. Refilling washer fluid
(1) Refill the washer fluid.

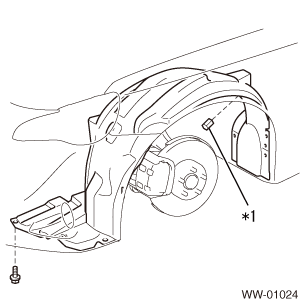

3. Installation of the front mud guard LH
(1) Using 18 clips, install the front mud guard LH.
(2) Install a new grommet.
(3) Install the bolt.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
4. Installation of the front tire LH
Standard value:
Standard value:
Tightening torque=120N·m
{
1224kgf·cm}
{88.5ft·lbf}
ON-VEHICLE INSPECTION
1. Inspection of the windshield washer motor & pump ASSY
(1) Operation inspection
(a) When the windshield washer motor & pump ASSY is installed to the windshield washer tank, pour washer fluid into the windshield washer tank.
(b) Inspect if washer fluid is pumped when battery voltage is applied to each connector terminal.
Criteria
| Battery connection |
Criteria |
|---|---|

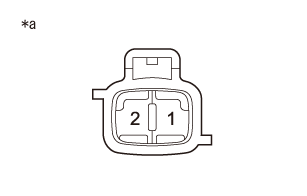

| Battery positive → 1 Battery ground → 2 |
Washer fluid is pumped from the front side. |
Captions in illustration
| *a |
Connector not connected (Windshield washer motor & pump ASSY) |
