HEADLIGHT WASHER ACTUATOR
Components Removal / installation
WIPERS & WASHERS
HEADLIGHT WASHER ACTUATOR

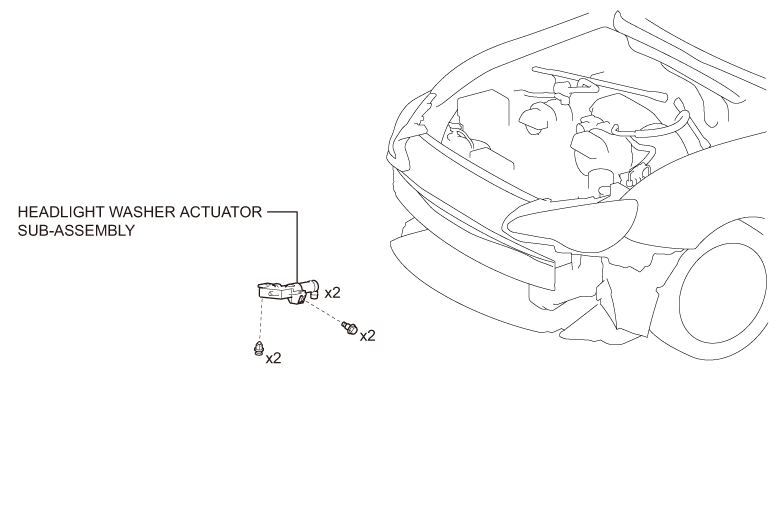

COMPONENTS
REMOVAL
NOTE:
·Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
·The procedure listed below is for the LH side.
1. Remove the headlight washer cover.
2. REMOVE FRONT BUMPER COVER (See page
)
)
INSTALLATION
NOTE:
·Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
·The procedure listed below is for the LH side.

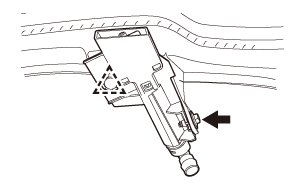

1. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY
(1) Install the headlight washer actuator sub-assembly with the bolt.
(2) Install the clip.

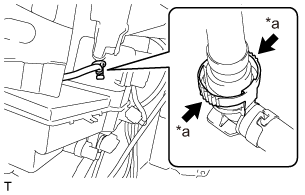

(3) Connect the headlight washer hose.
2. INSTALL FRONT BUMPER COVER (See page )
)3. Install the headlight washer cover.
4. ADD WASHER FLUID
5. PREPARE VEHICLE FOR FOG LIGHT AIM ADJUSTMENT (w/ Fog Light) (See page )
)6. PREPARE FOR FOG LIGHT AIMING (w/ Fog Light) (See page )
)7. INSPECT FOG LIGHT AIMING (w/ Fog Light) (See page )
)8. ADJUST FOG LIGHT AIMING (w/ Fog Light) (See page)
)
