HEADLIGHT WASHER NOZZLE COVER
Components Removal / installation
WIPERS & WASHERS
HEADLIGHT WASHER NOZZLE COVER

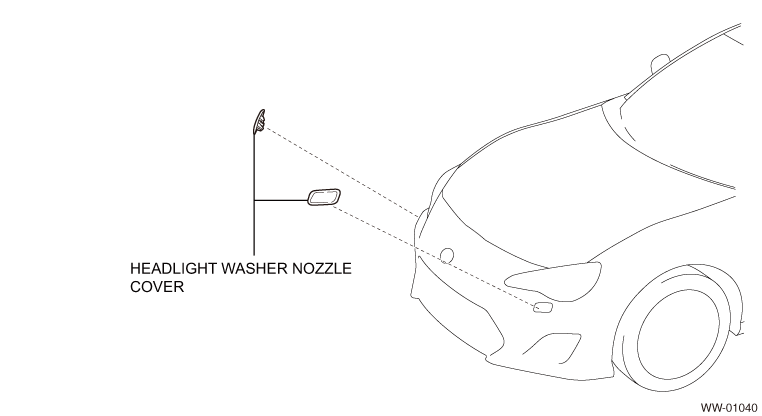

COMPONENTS
REMOVAL
CAUTION:
·Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
·The procedure listed below is for the LH side.
1. REMOVE HEADLIGHT WASHER NOZZLE COVER

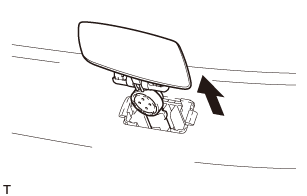

(1) Extend the headlight washer nozzle by hand.
CAUTION:
Be careful not to damage the headlight washer actuator sub-assembly or headlight washer nozzle.

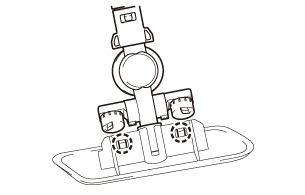

(2) Disengage the 2 claws and remove the headlight washer nozzle cover.
INSTALLATION
CAUTION:
·Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
·The procedure listed below is for the LH side.
1. INSTALL HEADLIGHT WASHER NOZZLE COVER

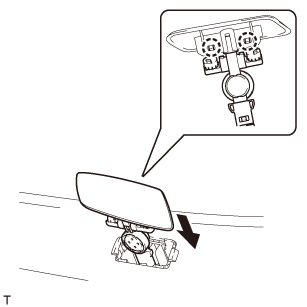

(1) Engage the 2 claws to install the headlight washer nozzle cover.
