HEADLIGHT WASHER MOTOR
Components Removal / installation
WIPERS & WASHERS
HEADLIGHT WASHER MOTOR
COMPONENTS
REMOVAL
1. REMOVE FRONT BUMPER COVER (See page
)
)
INSPECTION
1. INSPECT HEADLIGHT WASHER MOTOR AND PUMP ASSEMBLY
NOTE:
The following check should be performed with the headlight washer motor and pump assembly installed to the washer jar.
(1) Fill the washer jar with washer fluid.
(2) Connect a battery positive (+) lead to terminal 1 of the headlight washer motor and pump, and a battery negative (-) lead to terminal 2.
(3) Check that the washer fluid flows from the washer jar.
If the result is not as specified, replace the headlight washer motor and pump assembly.
OK
: The washer fluid is pumped from the washer jar.

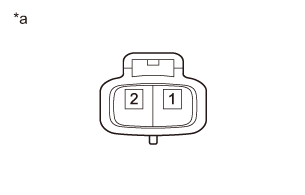

Text in Illustration
| *a |
Component without harness connected (Headlight Washer Motor and Pump Assembly) |
INSTALLATION
1. INSTALL HEADLIGHT WASHER MOTOR AND PUMP ASSEMBLY
(1) Install the headlight washer motor and pump assembly.

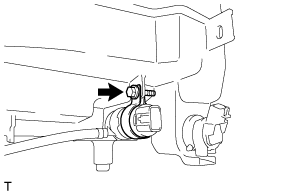

(2) Install the bolt.
Standard value:
Standard value:
Tightening torque=4.0N·m
{
41kgf·cm}
{3.0ft·lbf}

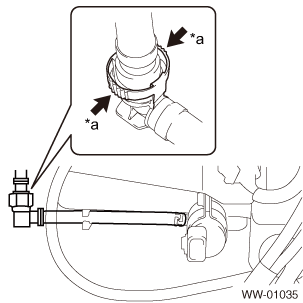

(3) Connect the headlight washer hose to the headlight washer motor and pump assembly.

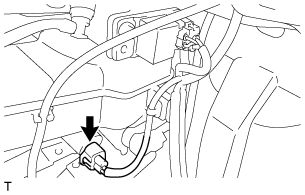

(4) Connect the connector.
2. INSTALL FRONT BUMPER COVER (See page )
)3. Install the headlight washer cover.
4. ADD WINDSHIELD WASHER FLUID
5. PREPARE VEHICLE FOR FOG LIGHT AIM ADJUSTMENT (w/ Fog Light) (See page )
)6. PREPARE FOR FOG LIGHT AIMING (w/ Fog Light) (See page )
)7. INSPECT FOG LIGHT AIMING (w/ Fog Light) (See page )
)8. ADJUST FOG LIGHT AIMING (w/ Fog Light) (See page)
)
