HEADLIGHT WASHER CONTROL RELAY
Components Removal / installation
WIPERS & WASHERS
HEADLIGHT WASHER CONTROL RELAY

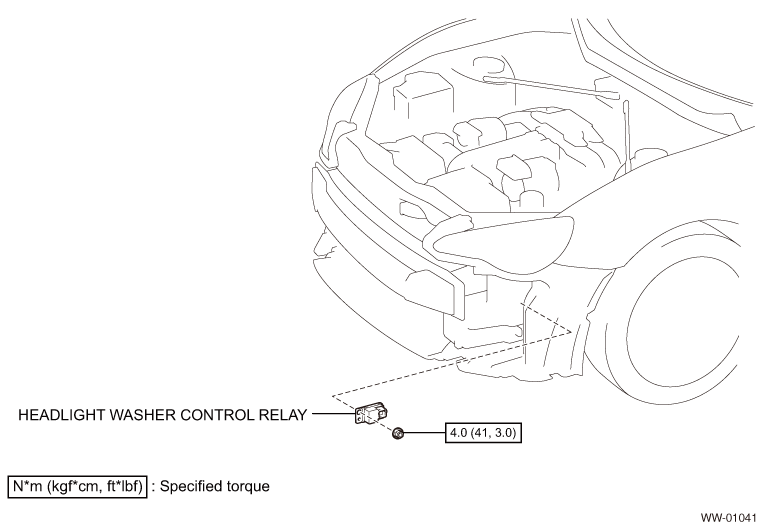

COMPONENTS
REMOVAL
1. REMOVE FRONT BUMPER COVER (See page
)
)

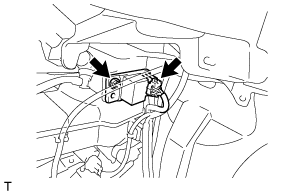

2. REMOVE HEADLIGHT WASHER CONTROL RELAY
(1) Disconnect the connector.
(2) Remove the nut and the headlight washer control relay.
INSPECTION
1. INSPECT HEADLIGHT WASHER CONTROL RELAY
(1) Measure the resistance according to the value(s) in the table below.
If the result is not as specified, replace the headlight washer switch assembly.
Standard Resistance
| Tester Connection |
Condition |
Specified Condition |
|---|---|---|
| 6 (WRWA) - 4 (WF) |
Battery voltage not applied |
10 kΩ or higher |
| Battery positive (+) → 3 (H) Battery negative (-) → 4 (WF) Battery negative (-) → 5 (E) |
||
| Battery positive (+) → 3 (H) Battery negative (-) → 2 (PB) Battery negative (-) → 4 (WF) |
Below 1 Ω for 0.6 to 1.0 seconds, then resistance increases by a large amount |
|
| Battery positive (+) → 3 (H) Battery negative (-) → 1 (IG) Battery negative (-) → 4 (WF) Battery negative (-) → 5 (E) |

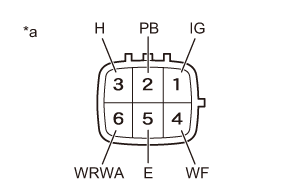

Text in Illustration
| *a |
Component without harness connected (Headlight Washer Control Relay) |
INSTALLATION
1. INSTALL HEADLIGHT WASHER CONTROL RELAY
(1) Install the headlight washer control relay with the nut.
Standard value:
Standard value:
Tightening torque=4.0N·m
{
41kgf·cm}
{3.0ft·lbf}
(2) Connect the connector.
2. INSTALL FRONT BUMPER COVER (See page )
)
