Washer nozzle
Components Inspection Removal / installation
WIPERS & WASHERS
WASHER NOZZLE

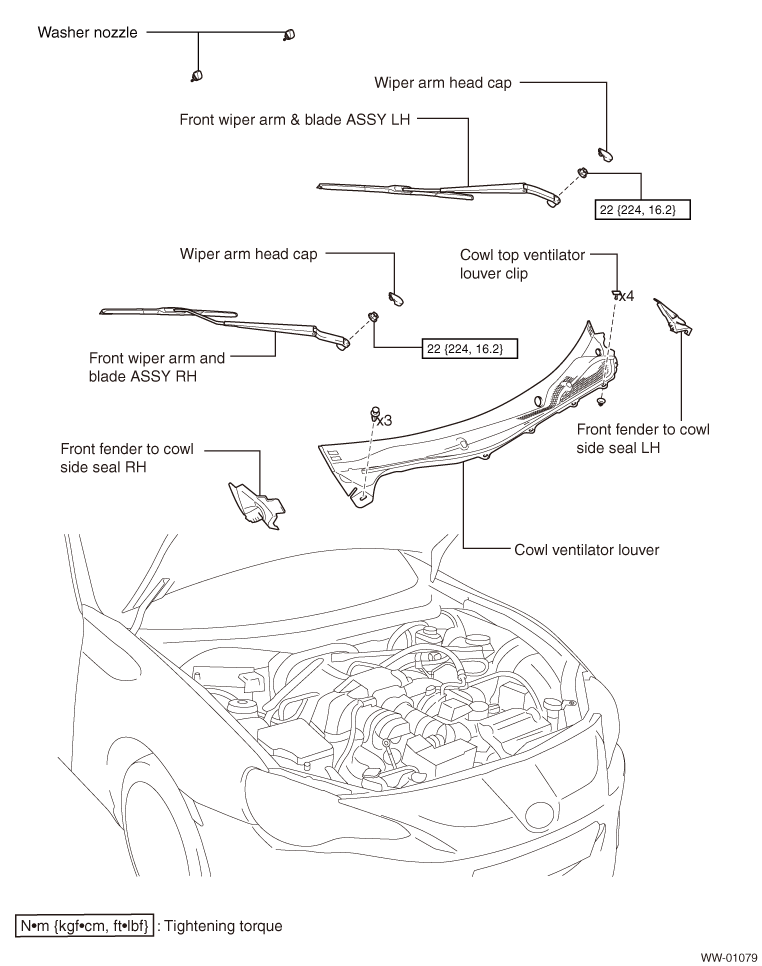

EXPLODED VIEW
REMOVAL
1. Removal of the wiper arm head caps (Refer to
)
)2. Removal of the front wiper arm & blade ASSY RH (Refer to )
)3. Removal of the front wiper arm & blade ASSY LH (Refer to )
)4. Removal of the front fender to cowl side seal RH (Refer to )
)5. Removal of the front fender to cowl side seal LH
NOTE:
Perform the same procedures as RH side.
6. Removal of the cowl ventilator louver (Refer to )
)
7. Removal of the washer nozzle

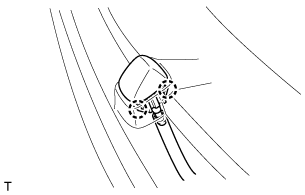

(1) Release the 2 tabs and remove the washer nozzle.

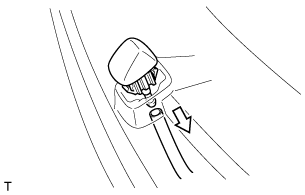

(2) Disconnect the washer hose from the washer nozzle.
INSTALLATION
1. Installation of the washer nozzle
(1) Connect the washer nozzle to the washer hose.
(2) Fit in the 2 tabs and install the washer nozzle.
2. Installation of the cowl ventilator louver (Refer to )
)3. Installation of the front fender to cowl side seal RH (Refer to )
)4. Installation of the front fender to cowl side seal LH
NOTE:
Perform the same procedures as RH side.
5. Installation of the front wiper arm & blade ASSY LH (Refer to )
)6. Installation of the front wiper arm & blade ASSY RH (Refer to )
)7. Installation of the wiper arm head caps (Refer to )
)8. Washer nozzle inspection (Refer to )
)9. Washer nozzle adjustment (Refer to )
)ADJUSTMENT
1. Removal of the washer nozzle (Refer to )
)2. Washer nozzle adjustment

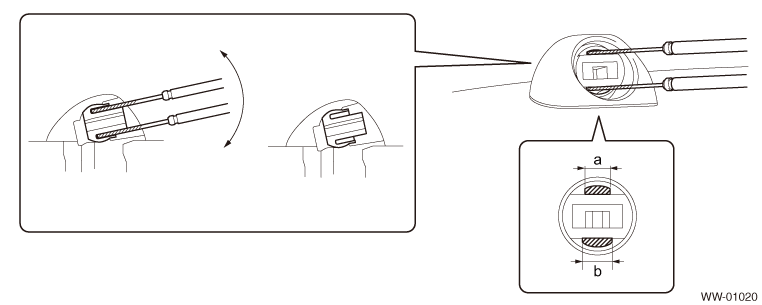

(1) Using thin flat head screwdrivers wrapped with protective tape, adjust the nozzle jet of the washer nozzle so that the washer fluid sprays within the standard range.
NOTE:
When adjusting the washer nozzle, use the adjustment grooves on the upper and lower sides of the nozzle.
Reference values
| *a |
2.5mm |
*b |
2.8 mm |
CAUTION:

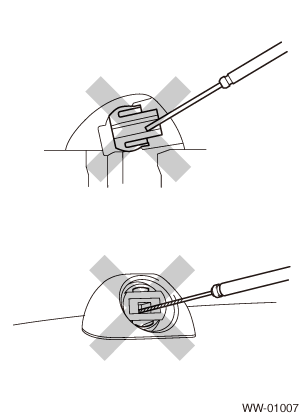

·Because it may damage the washer nozzle discharge port and cause the washer liquid not to be sprayed correctly, do not insert a screwdriver into the washer nozzle discharge port.
·Do not use a tool which size is larger than the adjustment groove.
·Do not use a tool which size is larger than the adjustment groove.
3. Installation of the washer nozzle (Refer to )
)ON-VEHICLE INSPECTION
1. Washer nozzle inspection
(1) Turn the ignition switch to ON, and inspect where the washer liquid is sprayed.

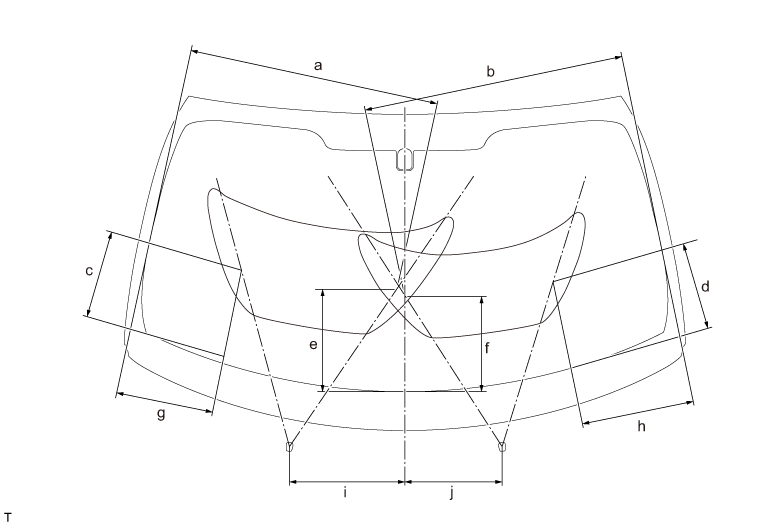

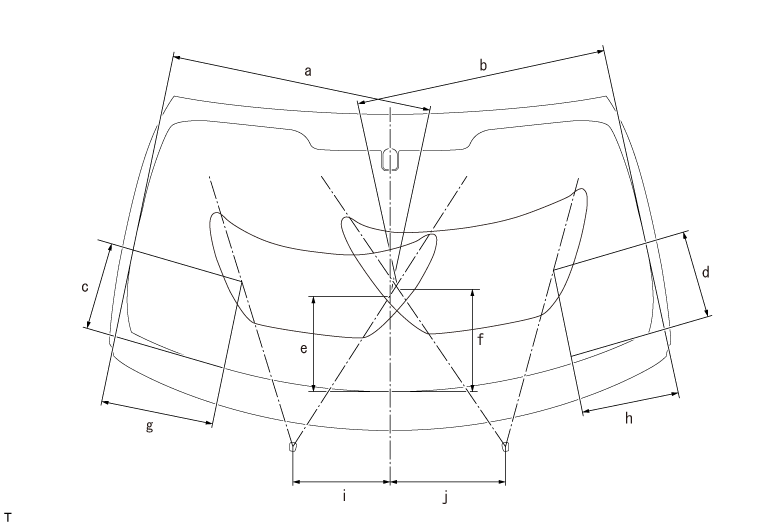

Criteria
: Inside the range in the figure
·LHD model
Standard value
·RHD model| Measurement place |
Dimension |
Measurement place |
Dimension |
|---|---|---|---|
| a |
660 mm {25.984 in} |
b |
684 mm {26.929 in} |
| c |
247 mm {9.724 in} |
d |
232 mm {9.134 in} |
| e |
268 mm {10.551 in} |
f |
250 mm {9.843 in} |
| g |
253 mm {9.961 in} |
h |
299 mm {11.772 in} |
| i |
300 mm {11.811 in} |
j |
250 mm {9.843 in} |
CAUTION:
If the spray misses the standard area, adjust the washer nozzle.
