Fog light
Components Removal / installation
LIGHTING (EXTERIOR)
FOG LIGHT

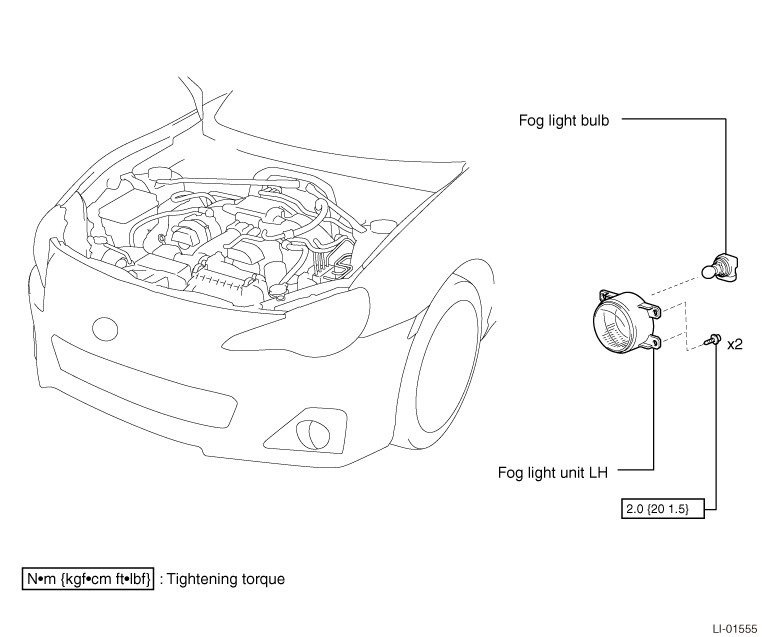

EXPLODED VIEW
REMOVAL
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.

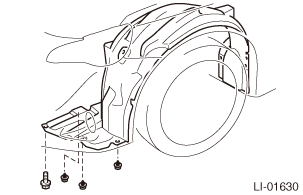

1. Turn over the front mud guard LH.
(1) Remove the bolt.
(2) Using a clip remover, remove the 3 clips and turn over the front mud guard LH.

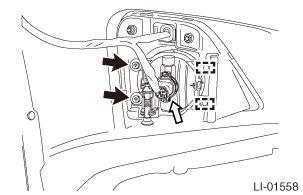

2. Removal of the fog light unit LH
(1) Disconnect the connector.
(2) Remove the 2 screws.
(3) Release the 2 guides, and remove the fog light unit LH.
DISASSEMBLY
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Removal of the fog light bulb

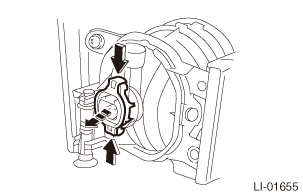

(1) Push the tabs in the direction of the arrows in the figure, pull out towards the rear, and remove the fog light bulb from the fog light unit LH.
CAUTION:
Do not touch the glass portion of the bulb.
ASSEMBLY
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Installation of the fog light bulb

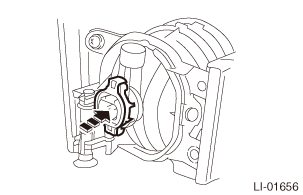

(1) Push in the bulb in the direction of the arrow in the figure, and install the fog light bulb on the fog light unit LH.
CAUTION:
Do not touch the glass portion of the bulb.
INSTALLATION
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Installation of the fog light unit LH

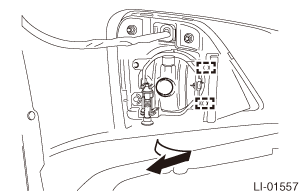

(1) Insert the 2 guides, and assemble the fog light unit LH.
(2) Using 2 screw, install the fog light unit LH.
Standard value:
Standard value:
Tightening torque=2.0N·m
{
20kgf·cm}
{1.5ft·lbf}

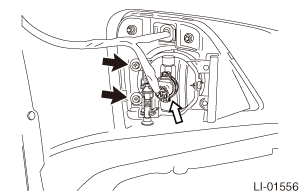

(3) Connect the connector.
2. Installation of the front mud guard LH
(1) Using 3 clips, install the front mud guard LH.
(2) Install the bolt.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
3. Adjusting the fog light beams (Refer to
)
)ADJUSTMENT
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Preliminary operation for adjusting the fog light beams
(1) Adjust the tire pressure to the specified value. (Refer to )
)(2) Start the engine and charge the battery.
2. Turn over the front mud guard LH. (Refer to )
)

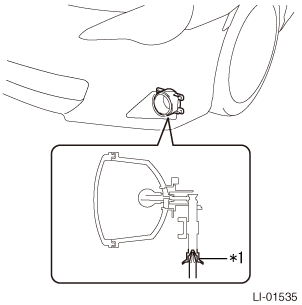

3. Adjusting the fog light beams
4. Inspection of the fog light beams
Criteria
: They shine within 40 m (131.2 ft).
