Subaru BRZ 2013 · Service Manual Exterior body & electrical

Daytime running light

Removal / installation

LIGHTING (EXTERIOR)
DAYTIME RUNNING LIGHT

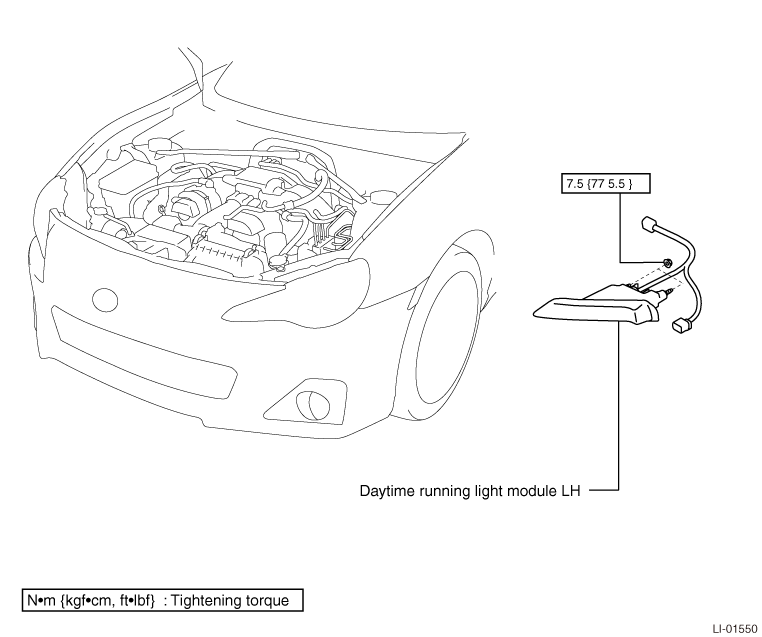

EXPLODED VIEW
REMOVAL
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Turn over the front mud guard LH.
(1) Remove the bolt.
(2) Using a clip remover, remove the 3 clips and turn over the front mud guard LH.
2. Removal of the daytime running light unit LH

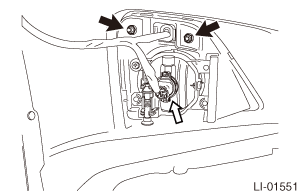

(1) Disconnect each connector.
(2) Remove 2 screws.

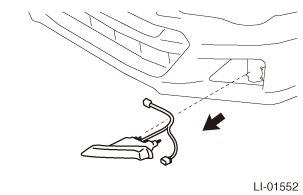

(3) Release the 2 guides, and remove the fog light unit LH.
INSTALLATION
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Installation of the daytime running light unit LH

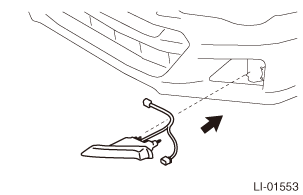

(1) Insert the daytime running light from the front side of the bumper to assemble it.
(2) Using 2 nuts, install the daytime running light unit LH.
(3) Connect each connector.

Standard value:
Tightening torque=7.5N·m { 77kgf·cm} {5.5ft·lbf}
2. Installation of the front mud guard LH
(1) Using 3 clips, install the front mud guard LH.
(2) Install the bolt.

Standard value:
Tightening torque=7.5N·m { 77kgf·cm} {5.5ft·lbf}
