License plate light

Components Inspection Removal / installation

LIGHTING (EXTERIOR)

LICENSE PLATE LIGHT

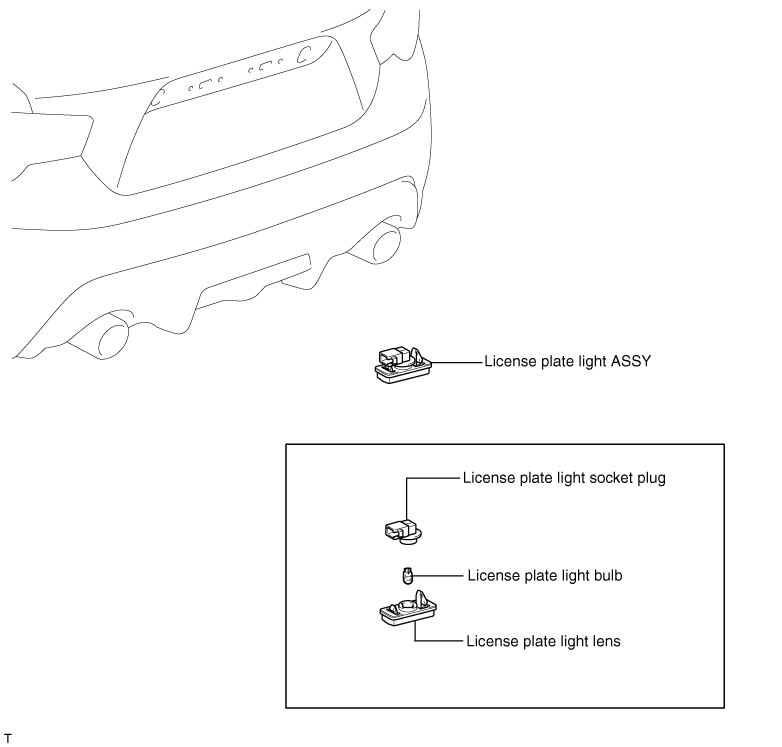

EXPLODED VIEW

REMOVAL

1. Removal of the license plate light ASSY

(1) Disconnect the connector.

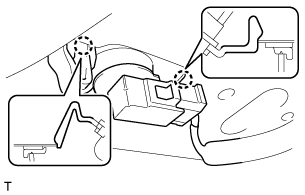

(2) Release the 2 tabs and remove the license plate light ASSY.

2. Removal of the license plate light bulb

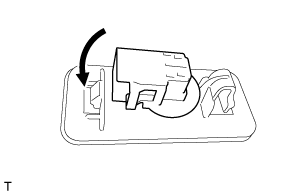

(1) Turn in the direction of the arrow in the figure, and remove the license plate light bulb as a unit with the license plate light socket plug.

(2) Remove the license plate light bulb from the license plate light socket plug.

INSTALLATION

1. Installation of the license plate light bulb

(1) Install the license plate light bulb on the license plate light socket plug.

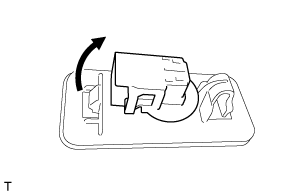

(2) Turn in the direction of the arrow in the figure, and install the license plate light bulb as a unit with the license plate light socket plug.

2. Installation of the license plate light ASSY

(1) Fit in the 2 tabs and install the license plate light ASSY.

(2) Connect the connector.

UNIT INSPECTION

1. Inspection of the license plate light ASSY

(1) Light inspection

(a) Inspect if the light turns on when battery voltage is applied to each connector terminal.

Criteria

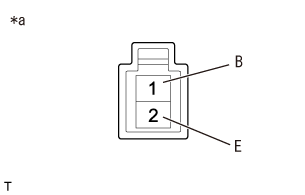

Battery connection	Criteria
Battery positive → 1 (B) Battery ground → 2 (E)	Light turns on.

*a	Connector not connected (License plate light ASSY)
