Hazard warning switch
Components Inspection Removal / installation
LIGHTING (EXTERIOR)
HAZARD WARNING SWITCH

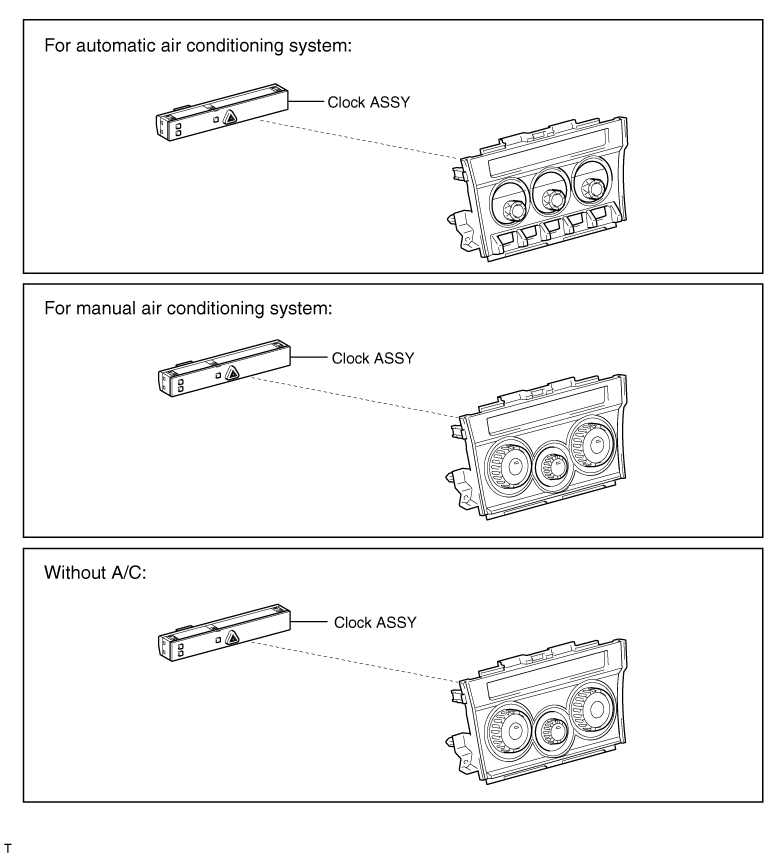

EXPLODED VIEW
REMOVAL
1. Removal of the air conditioner control ASSY (for automatic air conditioning systems) (Refer to
)
)2. Removal of the air conditioner control ASSY (for manual air conditioning systems) (Refer to )
)3. Removal of air conditioner control ASSY (without air conditioner)
NOTE:
Repeat the same removal steps for the manual air conditioning system.
4. Removal of the clock ASSY

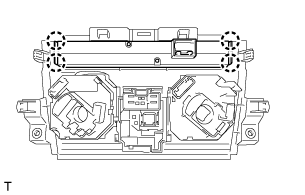

(1) Release the 4 tabs, and remove the clock ASSY.
INSTALLATION
1. Installation of the clock ASSY
(1) Fit in the 4 tabs and install the clock ASSY.
2. Installation of the air conditioner control ASSY (for automatic air conditioning systems) (Refer to )
)3. Installation of the air conditioner control ASSY (for manual air conditioning systems) (Refer to )
)4. Installation of air conditioner control ASSY (without air conditioner)
NOTE:
Repeat the same installation steps for the manual air conditioning system.
UNIT INSPECTION
1. Inspection of the clock ASSY

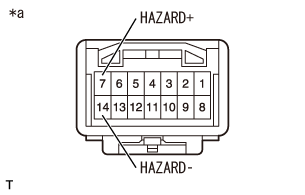

(1) Measurement of the resistance of the hazard warning signal switch
(2) Inspection of LED light (night-time illumination)
