Subaru BRZ 2013 · Service Manual Exterior body & electrical

Side turn signal light

Components Removal / installation

LIGHTING (EXTERIOR)
SIDE TURN SIGNAL LIGHT

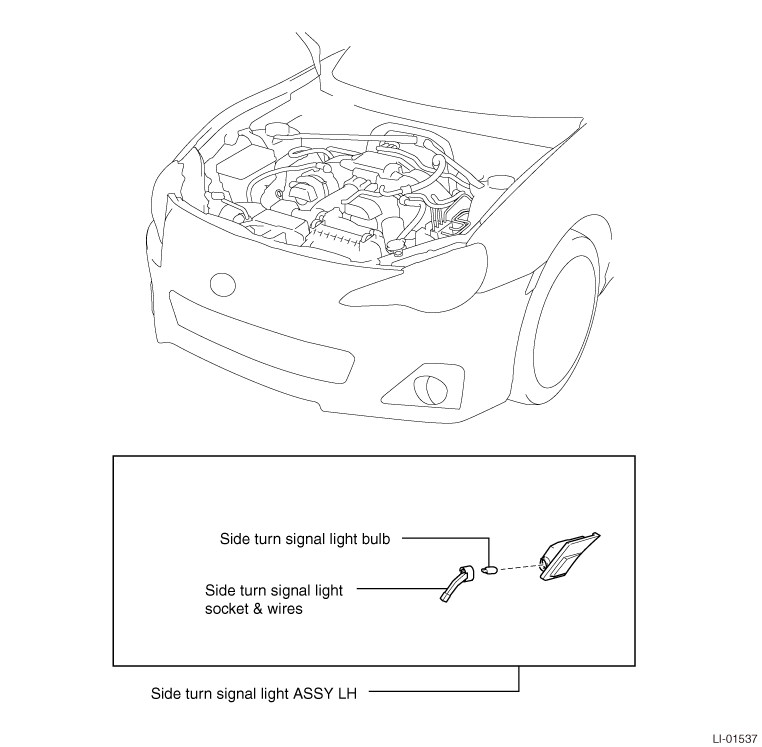

EXPLODED VIEW
REMOVAL
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Removal of the side turn signal light ASSY LH
(1) Turn the front tires all the way to the right side.

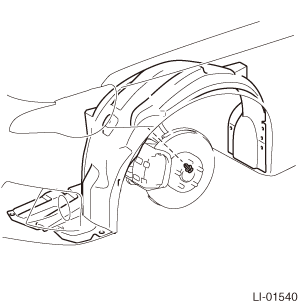

(2) Remove the clip and turn over the front mud guard.

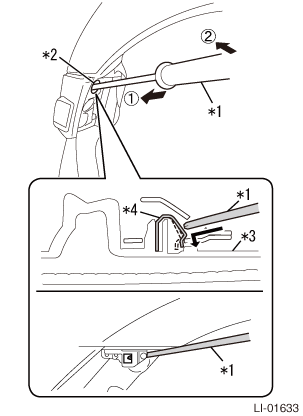

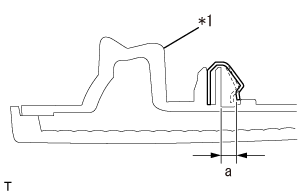

(3) Using a Phillips screwdriver, while pushing the metal clip of the side turn signal light ASSY LH from the service hole in the direction of the arrow in the figure, release the clip.
NOTE:
While firmly pressing the Phillips screw driver in the direction of ①, move it in the direction of ②.
Captions in illustration
*1
 Phillips screw driver
*2
 Service hole
*3
 Side turn signal light ASSY LH
*4
 Metal clip
(4) Disconnect the connector and remove the side turn signal light ASSY LH.
DISASSEMBLY
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Removal of the side turn signal light socket and wiring

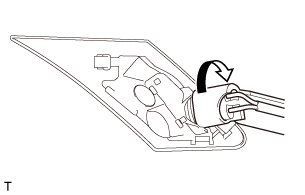

(1) Turn in the direction of the arrow in the figure, and remove the side turn signal light socket and wiring as a unit with the side turn signal light bulb.
2. Removal of the side turn signal light bulb
(1) Remove the side turn signal light bulb from the side turn signal light socket and wiring.
ASSEMBLY
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Installation of the side turn signal light bulb
(1) Install the side turn signal light bulb on the side turn signal light socket and wiring.
2. Installation of the side turn signal light socket and wiring

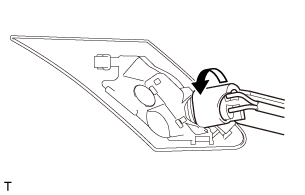

(1) Turn in the direction of the arrow in the figure, and install the side turn signal light socket and wiring as a unit with the side turn signal light bulb.
