Subaru BRZ 2013 · Service Manual Exterior body & electrical

Rear combination light

Components Inspection Removal / installation

LIGHTING (EXTERIOR)
REAR COMBINATION LIGHT

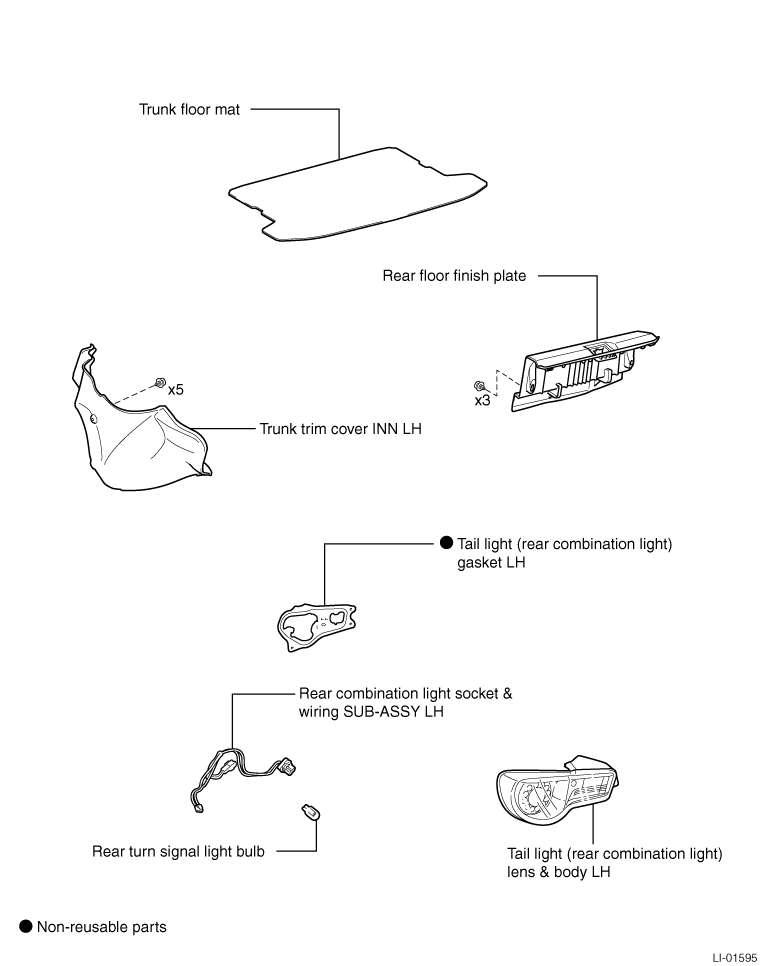

EXPLODED VIEW
REMOVAL
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Removal of the trunk floor mat
2. Removal of the rear floor finish plate

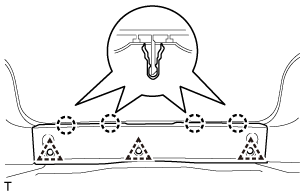

(1) Using a clip remover, remove the 3 clips.
(2) Release the 4 tabs, and remove the rear floor finish plate.
3. Removal of the trunk trim cover INN LH

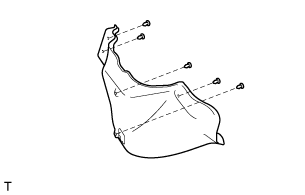

(1) Using a clip remover, remove the 5 clips and remove the trunk trim cover INN LH.
DISASSEMBLY
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Removal of the tail light (rear combination light) gasket LH

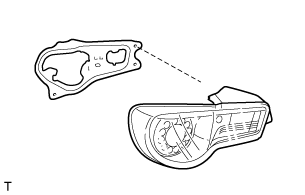

(1) Remove the tail light (rear combination light) gasket LH.
CAUTION:
·If the tail light (rear combination light) gasket LH sticks to the body, be sure to remove all of it.
·Because it may allow water to enter, once you have removed the gasket, be sure to replace it with a new tail light (rear combination light) gasket LH.
2. Removal of the rear turn signal light bulb

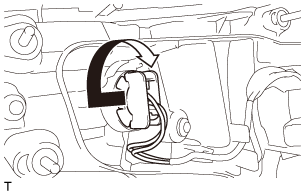

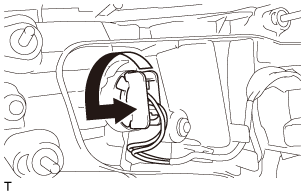

(1) Turn in the direction of the arrow in the figure, and remove the rear turn signal light bulb as a unit with the rear combination light socket & wiring SUB-ASSY LH.
(2) Remove the rear turn signal light bulb from the rear combination light socket & wiring SUB-ASSY LH.
3. Removal of the rear combination light socket & wiring SUB-ASSY LH

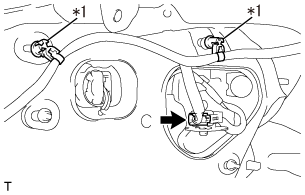

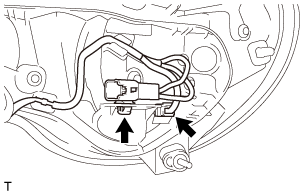

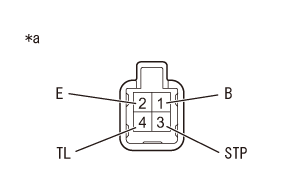

(1) Disconnect the connector clamp and the connector.

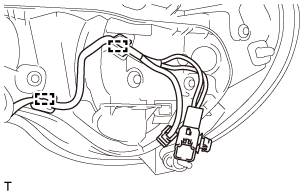

(2) Disconnect the 2 clamps, and remove the rear combination light socket & wiring SUB-ASSY LH.
ASSEMBLY
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Installation of the rear combination light socket & wiring SUB-ASSY LH
(1) Fit in the 2 clamps, and install the rear combination light socket & wiring SUB-ASSY LH.
(2) Connect the connector clamp and the connector.
2. Installation of the rear turn signal light bulb
(1) Install the rear turn signal light bulb on the rear combination light socket & wiring SUB-ASSY LH.
(2) Turn in the direction of the arrow in the figure, and install the rear turn signal light bulb as a unit with the rear combination light socket & wiring SUB-ASSY LH.
3. Installation of the tail light (rear combination light) gasket LH
(1) Install a new tail light (rear combination light) gasket LH.
INSTALLATION
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.

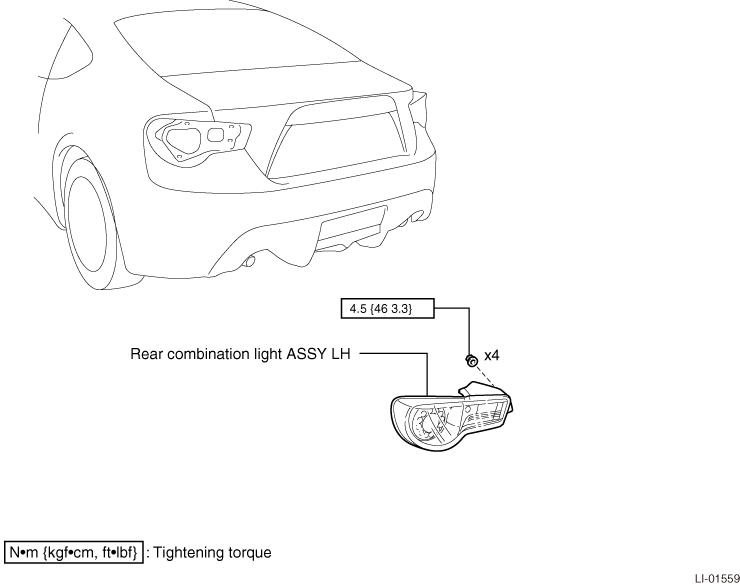

1. Installation of the rear combination light ASSY LH

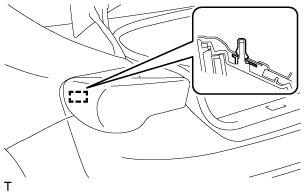

(1) Fit in the guide, and temporarily install the rear combination light ASSY LH.

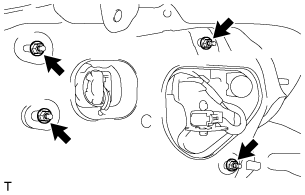

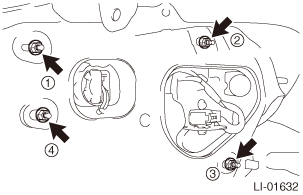

(2) Tighten the 4 nuts in order from ① to ④ to install the rear combination light ASSY LH.
NOTE:
The RH side is mirrored.

Standard value:
Tightening torque=4.5N·m { 46kgf·cm} {3.3ft·lbf}
(3) Using 2 grommets, install the rear combination light socket & wiring SUB-ASSY LH.
(4) Connect the connector.
2. Installation of the trunk trim cover INN LH
(1) Using 5 clips, install the trunk trim cover INN LH.
3. Installation of the rear floor finish plate
(1) Fit in the 4 tabs, and using 3 clips, install the rear floor finish plate.
4. Installation of the trunk floor mat
