Back-up light

Components Inspection Removal / installation

LIGHTING (EXTERIOR)

BACK-UP LIGHT

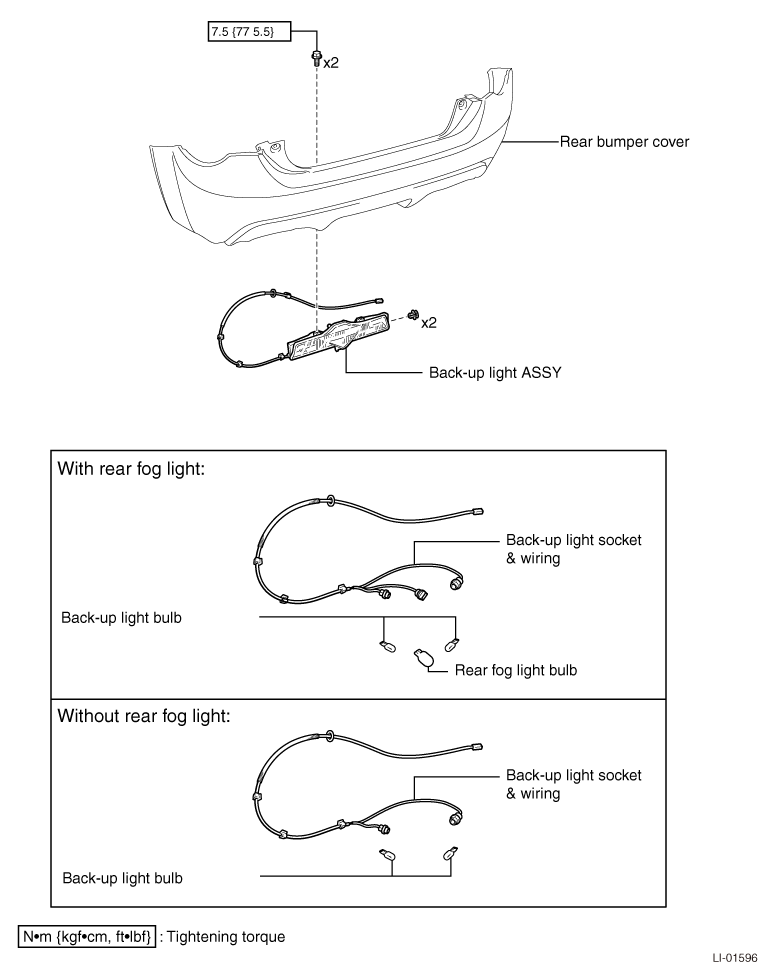

EXPLODED VIEW

REMOVAL

1. Removal of the rear bumper cover (Refer to

)

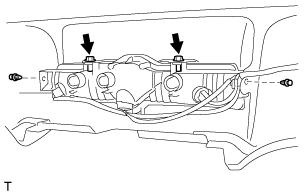

2. Removal of the back-up light ASSY

(1) Using a clip remover, remove the 2 clips.

(2) Remove the 2 bolts.

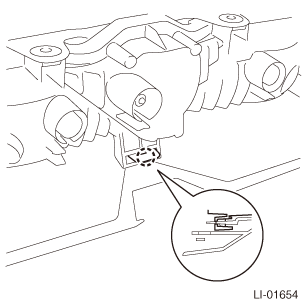

(3) Release the tab, and remove the back-up light ASSY.

DISASSEMBLY

1. Removal of the back-up light bulb

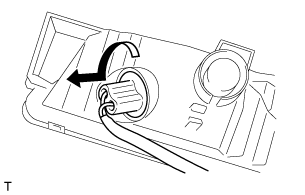

(1) Turn in the direction of the arrow in the figure, and remove the back-up light bulbs as a unit with the back-up light sockets & wiring.

(2) Remove the back-up light bulbs from the back-up light sockets & wiring.

NOTE:

Remove on the LH side using the same steps as the RH side.

2. Removal of the rear fog light bulb (with rear fog light)

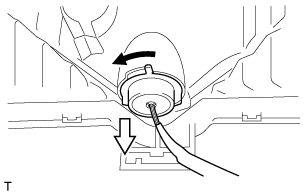

(1) Rotate the rear fog light bulb in the direction of the arrow in the figure, and remove it as a unit with the back-up light socket and wiring.

(2) Remove the rear fog light bulb from the back-up light socket and wiring.

3. Removal of the back-up light sockets & wiring

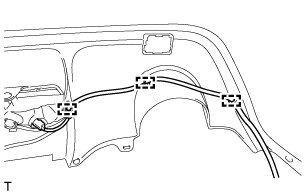

(1) Release the 3 clamps in the figure, and remove the back-up light sockets & wiring.

ASSEMBLY

1. Installation of the back-up light sockets & wiring

(1) Fit in the 3 clamps, and install the back-up light sockets & wiring.

2. Installation of the rear fog light bulb (with rear fog light)

(1) Install the rear fog light bulb on the back-up light socket and wiring.

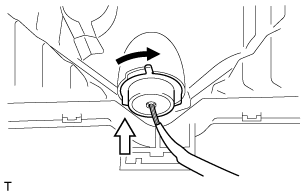

(2) Rotate the rear fog light bulb in the direction of the arrow in the figure, and install it as a unit with the back-up light socket and wiring.

3. Installation of the back-up light bulbs

(1) Install the back-up light bulbs on the back-up light sockets & wiring.

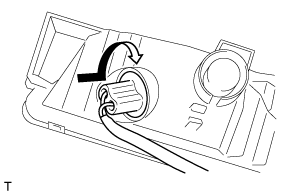

(2) Turn in the direction of the arrow in the figure, and install the back-up light bulbs as a unit with the back-up light sockets & wiring.

NOTE:

Install on the LH side using the same steps as the RH side.

INSTALLATION

1. Installation of the back-up light ASSY

(1) Fit in the tab, and install the back-up light ASSY.

(2) Install the 2 clips.

(3) Install the 2 bolts.

Standard value:

Tightening torque=7.5N·m { 77kgf·cm} {5.5ft·lbf}

2. Installation of rear bumper cover (Refer to

)

UNIT INSPECTION

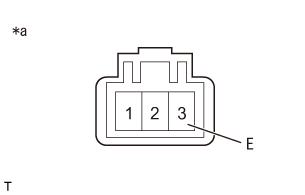

1. Inspection of the back-up light

(1) Inspect if the back-up light turns on when battery voltage is applied between the terminals.

Criteria

Battery connection	Criteria
Battery positive → 1 Battery ground → 3 (E)	The back-up light turns on.

Captions in illustration

*a	Connector not connected (Back-up light sockets & wiring)

NOTE:

Perform this inspection using new or properly-functioning bulbs.

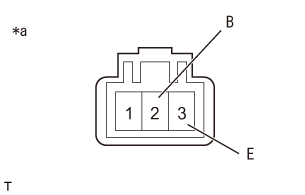

2. Inspection of the rear fog light (with rear fog light)

(1) Check the illumination status of the rear fog light when battery voltage is applied between the terminals.

Criteria

Battery connection	Criteria
Battery positive → 2 (B) Battery ground → 3 (E)	The rear fog lights turn on.

Captions in illustration

*a	Connector not connected (Back-up light sockets & wiring)

NOTE:

Perform this inspection using new or properly-functioning bulbs.
