High-mounted stop light
Components Inspection Removal / installation
LIGHTING (EXTERIOR)
HIGH-MOUNTED STOP LIGHT

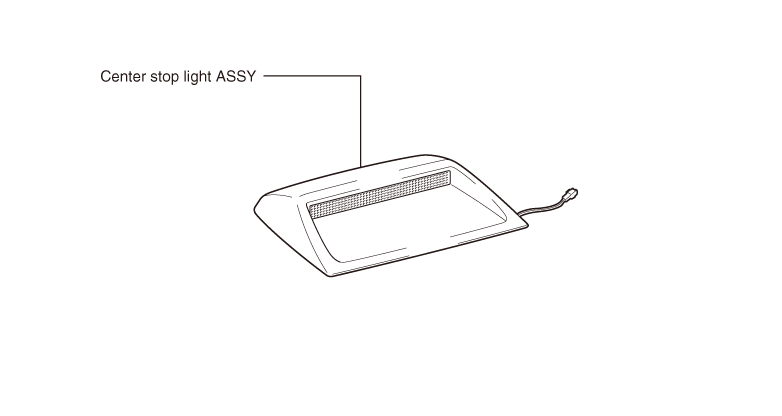

EXPLODED VIEW
REMOVAL
1. Removal of the center stop light ASSY

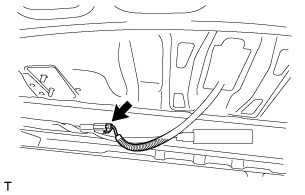

(1) Disconnect the connector.

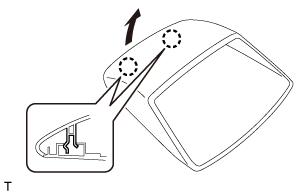

(2) Lift in the direction of the arrow in the figure, and release the 2 tabs.

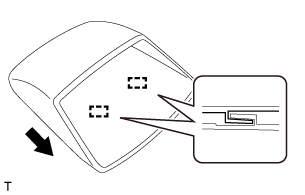

(3) Slide in the direction of the arrow in the figure, release the 2 guides, and remove the center stop light ASSY.
INSTALLATION
1. Installation of the center stop light ASSY

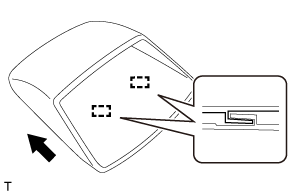

(1) Slide in the direction of the arrow in the figure, and insert the 2 guides.

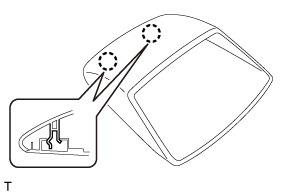

(2) Fit in the 2 tabs and install the stop center light set.
(3) Connect the connector.
UNIT INSPECTION
1. Inspection of the center stop light ASSY
(1) Connect the battery positive and ground between each terminal, and inspect if the center stop light ASSY turns on.
Criteria
| Battery connection |
Criteria |
|---|---|

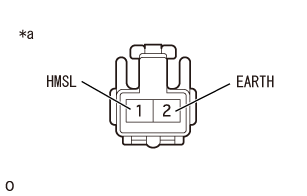

| Battery positive → 1 (HMSL) Battery ground → 2 (EARTH) |
Center stop light ASSY turns on. |
Captions in illustration
| *a |
Connector not connected (Center stop light ASSY) |
