Height control sensor
Components Inspection Removal / installation
LIGHTING (EXTERIOR)
HEIGHT CONTROL SENSOR

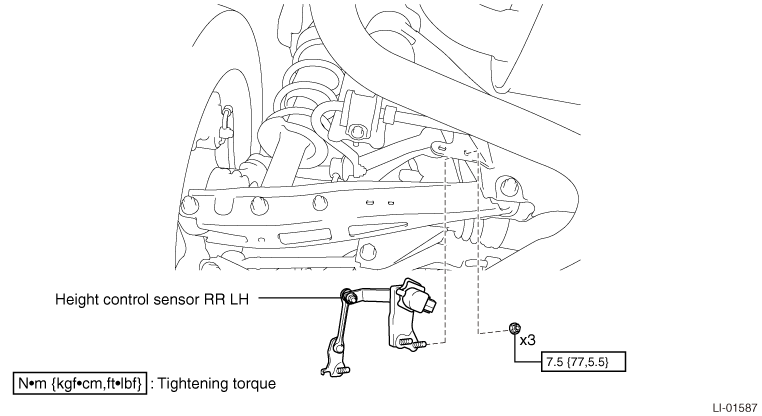

EXPLODED VIEW
REMOVAL

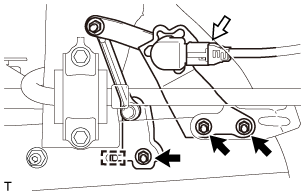

1. Removal of the height control sensor RR LH
(1) Disconnect the connector.
(2) Remove 3 nuts and remove the height control sensor RR LH.
CAUTION:
If you drop the height control sensor RR LH, replace it with a new one.
INSTALLATION
1. Installation of the height control sensor RR LH

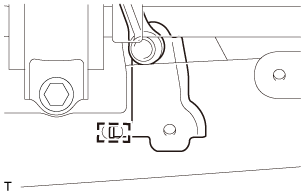

(1) Align the guide to the position in the figure, and install the height control sensor RR LH with 3 nuts.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
(2) Connect the connector.
2. Initialization of the headlight leveling computer (Refer to
)
)3. Headlight beam adjustment (Refer to )
)UNIT INSPECTION

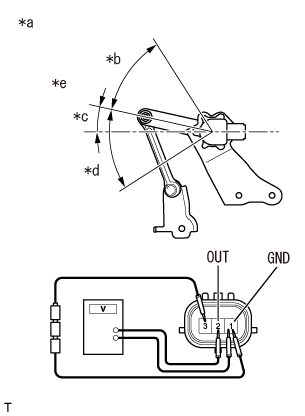

1. Inspection of the height control sensor RR LH
(1) Preparation before inspection
(a) Connect 3 dry-cell batteries (1.5 V) in series.
CAUTION:
Do not use rechargeable dry-cell batteries. They may not output 1.5 V of voltage.
(b) Connect the battery’s positive terminal to the connector terminal 3, the battery ground to terminal 1, and apply 4.5 V of voltage between terminals 3 and 1.
(2) Measuring voltage
(a) With the voltage applied, measure the voltage between terminals when slowly moving the link up and down.
Voltage
| Inspection terminals (Terminal symbol) |
Link angle (vehicle height) |
Standard value |
|---|---|---|
| 2 (OUT) - 1 (GND) |
+45° (high) |
Approx. 4.5 V |
| 2 (OUT) - 1 (GND) |
-15° (standard position for inspection) |
Approx. 2.5 V |
| 2 (OUT) - 1 (GND) |
-45° (low) |
Approx. 0.5 V |
Captions in illustration
| *a |
Connector not connected (Height control sensor RR LH) |
| *b |
+45° |
| *c |
-15° |
| *d |
-45° |
| *e |
Criteria |
CAUTION:
·Do not apply 5 V or more of voltage between the terminals.
·If you drop the height control sensor RR LH, replace it with a new one.
·If you drop the height control sensor RR LH, replace it with a new one.
NOTE:
If the power source voltage changes, so will the output voltage.
