Headlight leveling computer
Components Removal / installation
LIGHTING (EXTERIOR)
HEADLIGHT LEVELING COMPUTER

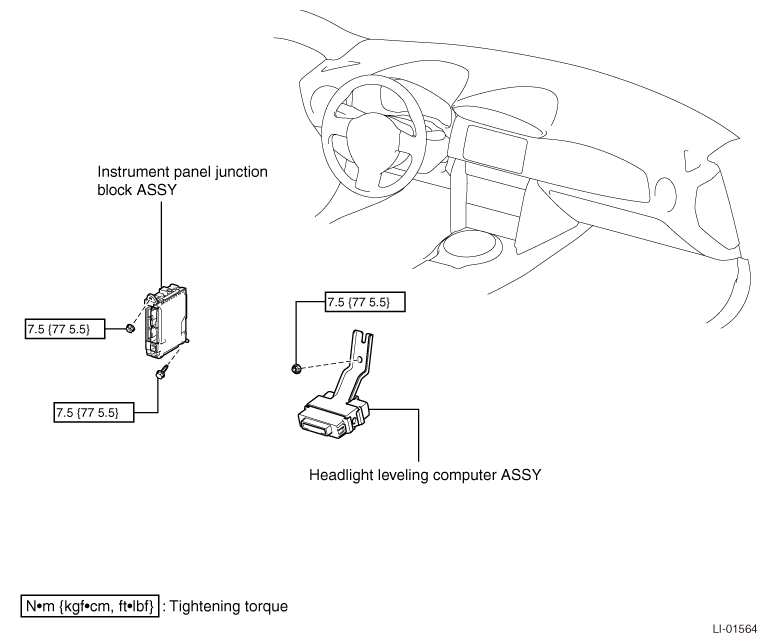

EXPLODED VIEW
REMOVAL
1. Removal of the power steering computer ASSY (Refer to
)
)2. Removal of the instrument panel junction block ASSY (Refer to )
)

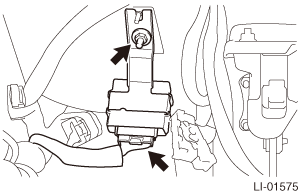

3. Removal of the headlight leveling computer ASSY
(1) Disconnect the connector.
(2) Remove the nut, and remove the headlight leveling computer ASSY.
INSTALLATION
1. Installation of the headlight leveling computer ASSY
(1) Use a nut to install the headlight leveling computer ASSY.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
(2) Connect the connector.
2. Installation of the instrument panel junction block ASSY (Refer to )
)3. Installation of the power steering computer ASSY (Refer to )
)4. Initialization of the headlight leveling computer ASSY (Refer to )
)5. Headlight beam adjustment (Refer to )
)
