LIGHTING (EXTERIOR)
TURN SIGNAL FLASHER

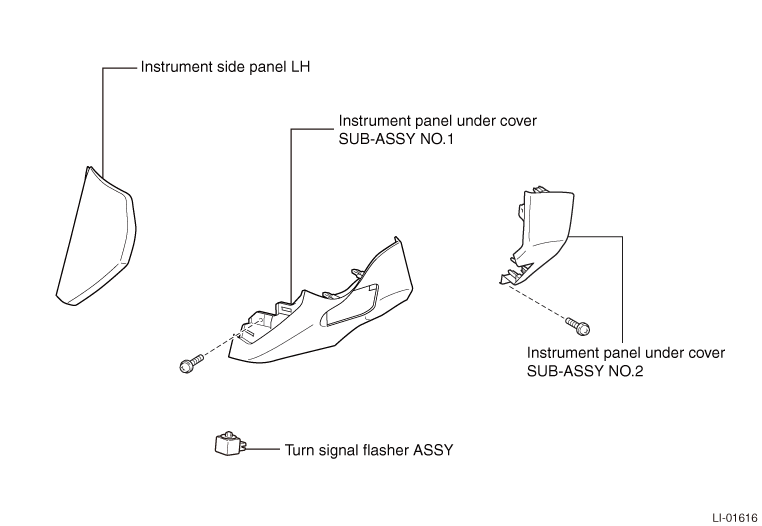

EXPLODED VIEW
REMOVAL
1. Removal of the instrument side panel RH (Refer to
)
)2. Removal of instrument panel under cover SUB-ASSY NO.1 (Refer to )
)3. Removal of instrument panel under cover SUB-ASSY NO.2 (Refer to )
)

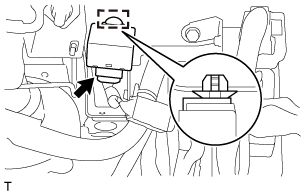

4. Removal of the turn signal flasher ASSY
(1) Using a clip remover, release the clamp.
(2) Disconnect the connector and remove the turn signal flasher ASSY.
INSTALLATION
1. Installation of the turn signal flasher ASSY
(1) Connect the connector.
(2) Fit in the clamp, and install the turn signal flasher ASSY.
2. Installation of instrument panel under-cover SUB-ASSY NO.1 (Refer to )
)3. Installation of instrument panel under-cover SUB-ASSY NO.2 (Refer to )
)4. Installation of the instrument side panel RH (Refer to )
)ON-VEHICLE INSPECTION
1. Inspection of the turn signal flasher ASSY
(1) Inspection of input / output operation
(a) Disconnect the connector D61 of the turn signal flasher ASSY.
(b) Measure the voltage between the each terminal of the vehicle wiring harness connector and the chassis ground.
(c) Measure the resistance between the each terminal of the vehicle wiring harness connector and the chassis ground.
Resistance
| Inspection terminals (Terminal symbol) |
Inspection conditions |
Standard value |
|---|---|---|
| D61-7 (GND) - chassis ground |
Always |
Less than 1 Ω |

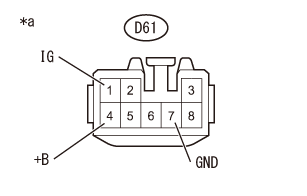

Captions in illustration
| *a |
Front side of vehicle wiring harness connector (Turn signal flasher ASSY) |
(d) Connect the connector D61 of the turn signal flasher ASSY.
(e) Measure the voltage between each connector terminal and the chassis ground.

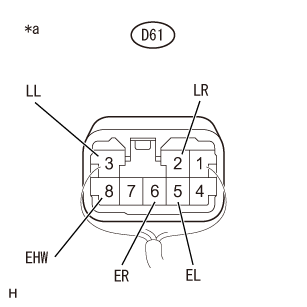

Captions in illustration
| *a |
Connector connected (Turn signal flasher ASSY) |
Voltage
| Inspection terminals (Terminal symbol) |
Inspection conditions |
Standard value |
|---|---|---|
| D61-6 (ER) - chassis ground |
Turn signal switch (TURN R) OFF → ON |
9 V or more → less than 1 V |
| D61-5 (EL) - chassis ground |
Turn signal switch (TURN L) OFF → ON |
9 V or more → less than 1 V |
| D61-8 (EHW) - chassis ground |
Hazard switch OFF → ON |
9 V or more → less than 1 V |
| D61-2 (LR) - chassis ground |
Turn signal switch (TURN R) OFF → ON |
Repeats going from less than 1 V → less than 1 V ←→ 9 V or more, 60 to 120 times per minute. |
| D61-3 (LL) - chassis ground |
Turn signal switch (TURN L) OFF → ON |
Repeats going from less than 1 V → less than 1 V ←→ 9 V or more, 60 to 120 times per minute. |
| D61-2 (LR) - chassis ground |
Hazard switch OFF → ON |
Repeats going from less than 1 V → less than 1 V ←→ 9 V or more, 60 to 120 times per minute. |
| D61-3 (LL) - chassis ground |
