Manual leveling system
Precautions Parts location Troubleshooting Removal / installation
LIGHTING (EXTERIOR)
MANUAL LEVELING SYSTEM
PRECAUTIONS
1. Precautions during headlight beam adjustment
(1) If using a cover when the headlights are on, do not perform for 3 minutes or more.
(2) Because the headlight outer lens is made of plastic, performing the adjustment for a long time will cause heat that may cause disfiguration.
FUNCTION INSPECTION
1. Before troubleshooting
(1) Basic inspection
(a) Inspect the battery voltage.
Standard value
: 11 to 14 V (when the engine is stopped)
(2) Inspect for blown fuses, wiring harnesses open circuit, short circuits, and poor contact of connectors, in places where you can inspect visually.

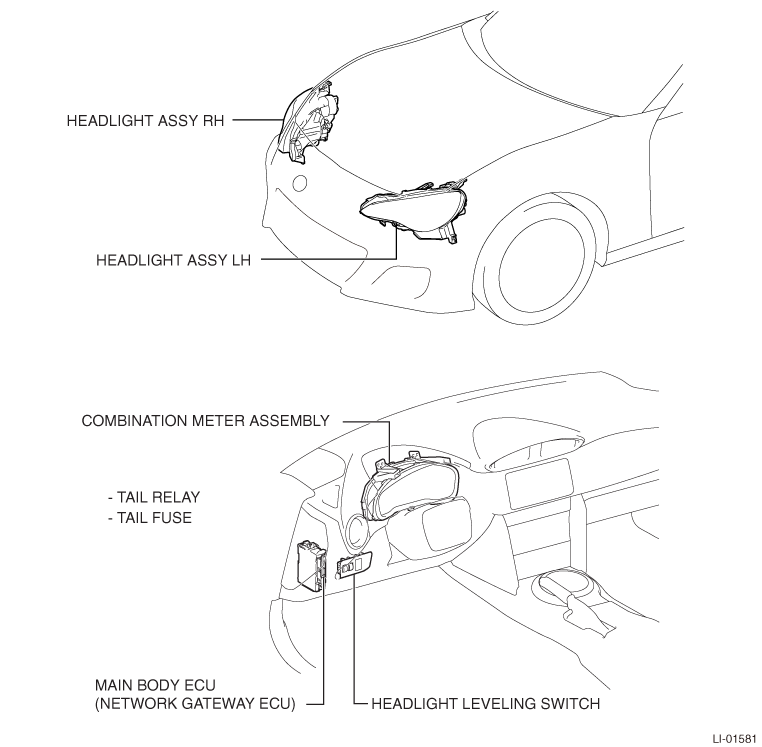

PARTS LOCATION
SYMPTOM TABLE
HOW TO TROUBLESHOOT
1.
Bring in the car
Next▼
2.
Interview and phenomenon check
Next▼
3.
Symptom table
NOTE:
B
>Go to Step 5.
A▼
4.
Based on the trouble phenomenon, perform troubleshooting following the steps below.
(1) Function check (refer to
)
)(2) On-vehicle inspection
(3) Unit inspection
Next▼
5.
Adjustment, repair, or replacement
Next▼
6.
Confirmation test
Next▼
Complete

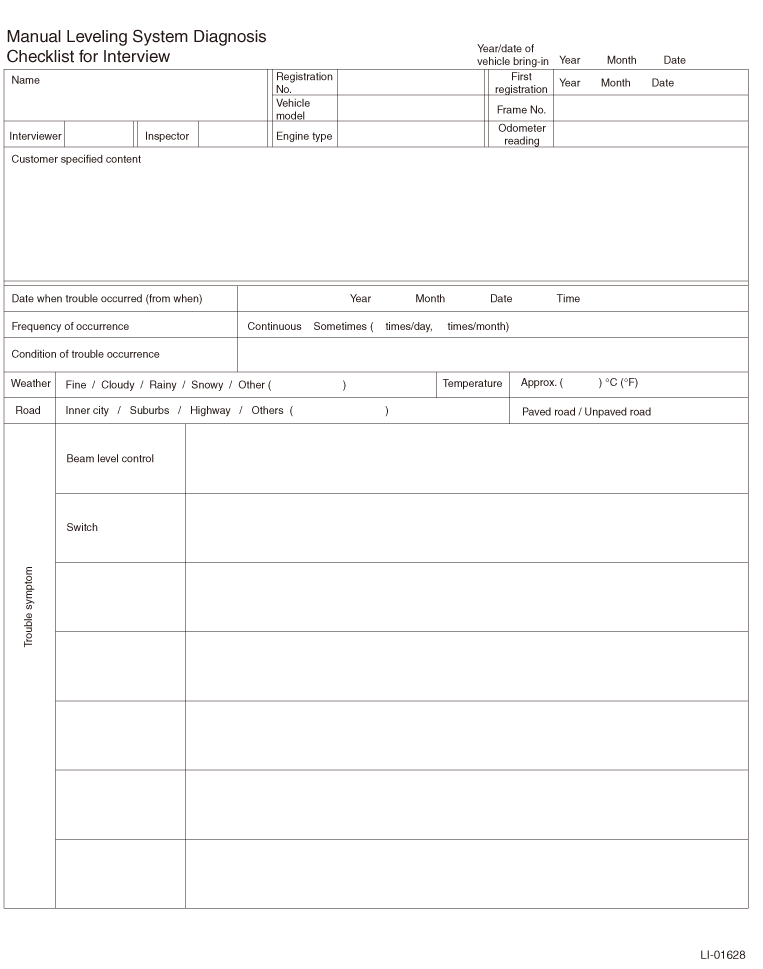

CHECK LIST FOR INTERVIEW
