Subaru BRZ 2013 · Service Manual Exterior body & electrical

Stop light switch

Components Inspection Removal / installation

LIGHTING (EXTERIOR)
STOP LIGHT SWITCH

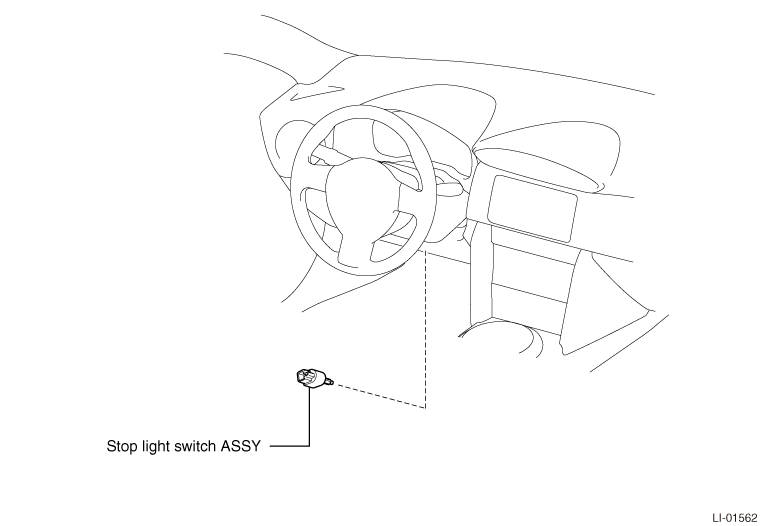

EXPLODED VIEW
REMOVAL
1. Removal of the stop light switch ASSY

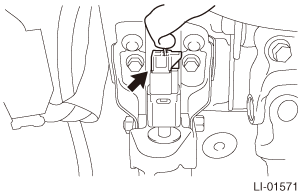

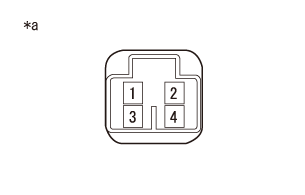

(1) Disconnect the connector.

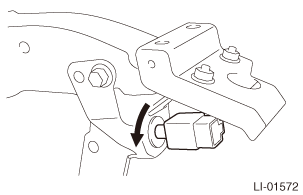

(2) Turn in the direction in the figure, and remove the stop light switch ASSY.
INSTALLATION
1. Installation of the stop light switch ASSY
(1) Align the push rod cutout part of the stop light switch ASSY with the groove of the mounting surface of the stop light switch ASSY.

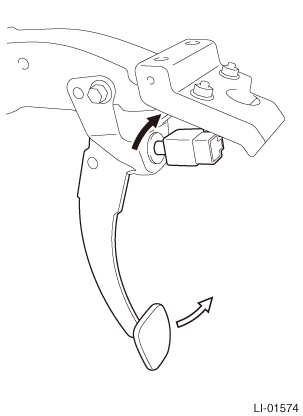

(2) While pushing the break pedal all the way up, securely install the stop light switch ASSY.
CAUTION:
When disassembling / assembling the break pedal, be sure to install the stop light switch ASSY last.

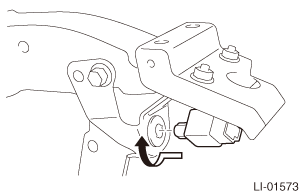

(3) Turn in the direction of the arrow in the figure, and secure the stop light switch ASSY.
Check the shaft excess (protrusion).
Standard value :  0.7 to 2 mm {0.03 to 0.08 in}
(4) Connect the connector.
2. Operation check for the stop light switch ASSY
(1) Turn the ignition switch to OFF and connect the SSM3 to the DLC3.
(2) Turn the ignition switch to ON, follow the screen display of the SSM3, and display the data for [Stop Lamp Switch] and [Master cylinder pressure].
(3) Without depressing the brake pedal, check that the stop light switch is OFF.
(4) Slowly depress the brake pedal, measure the master cylinder pressure when the stop light switch changes from OFF to ON, and check that it is within the standard values.
Standard value :  0.08 to 0.27 MPa
