REAR BUMPER

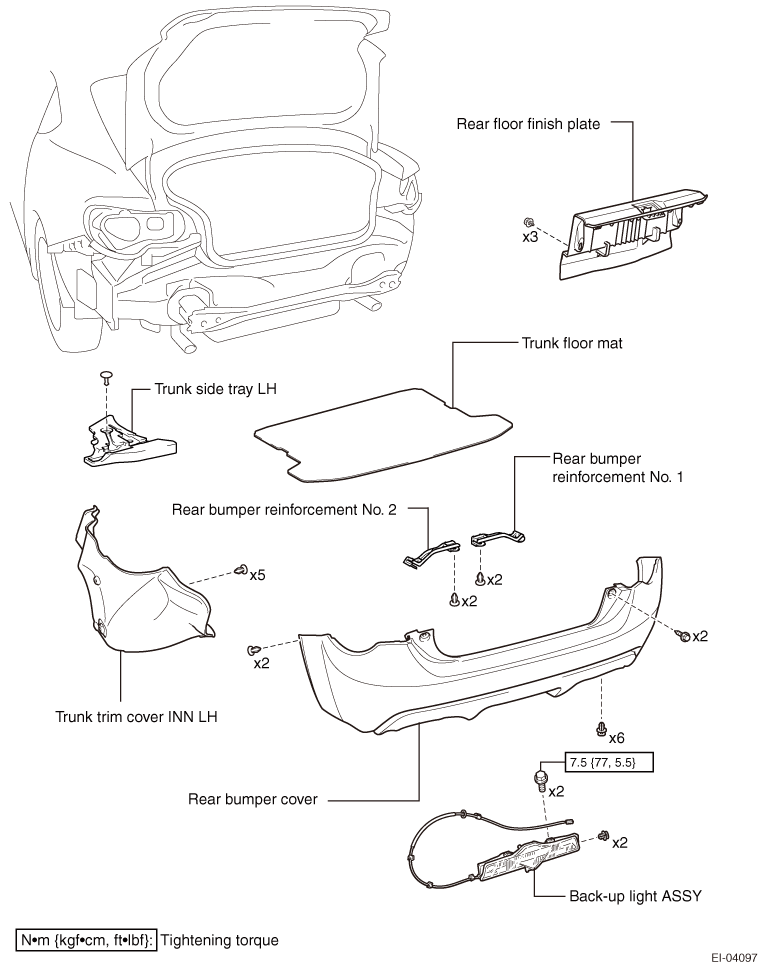

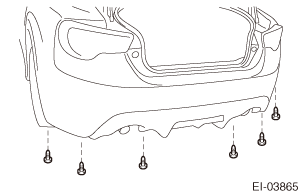

EXPLODED VIEW
REMOVAL
1. Removal of the trunk floor mat
2. Removal of the rear floor finish plate (Refer to
)
)

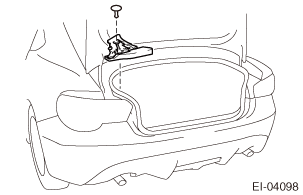

3. Removal of the trunk side tray
(1) Using a clip remover, remove the clip.
(2) Remove the trunk side tray LH.
4. Removal of the trunk trim cover INN LH (Refer to )
)
5. Removal of the rear bumper cover

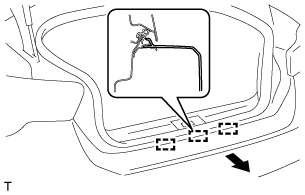

(1) Disconnect the connector of the back-up light ASSY.

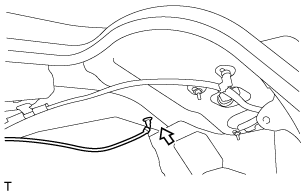

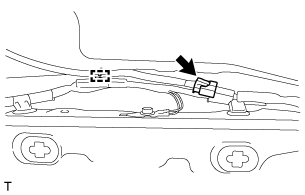

(2) Release the clamp, and disconnect the wiring harness.
(3) Disconnect the grommet, and pull the wiring harness out to the vehicle exterior.

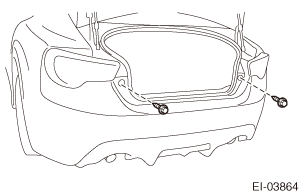

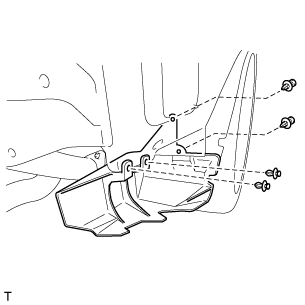

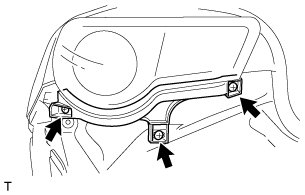

(4) Remove the 2 screws.

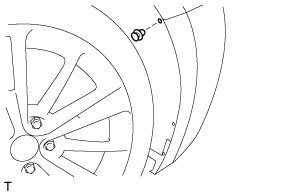

(6) Using a clip remover, remove the 6 clips.
(7) Using a clip remover, remove the clip.
NOTE:
Perform same procedures for the RH side.

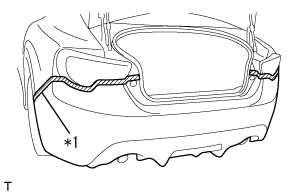

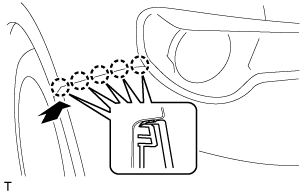

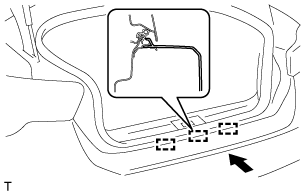

(8) Pull the rear bumper cover towards the exterior, and release the 5 claws.
NOTE:
Perform same procedures for the RH side.

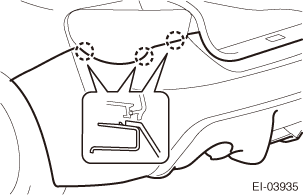

(9) Pull the rear bumper cover rearwards, and release the 3 claws.
NOTE:
Perform same procedures for the RH side.
(10) Remove the 3 guides, and remove the rear bumper cover.

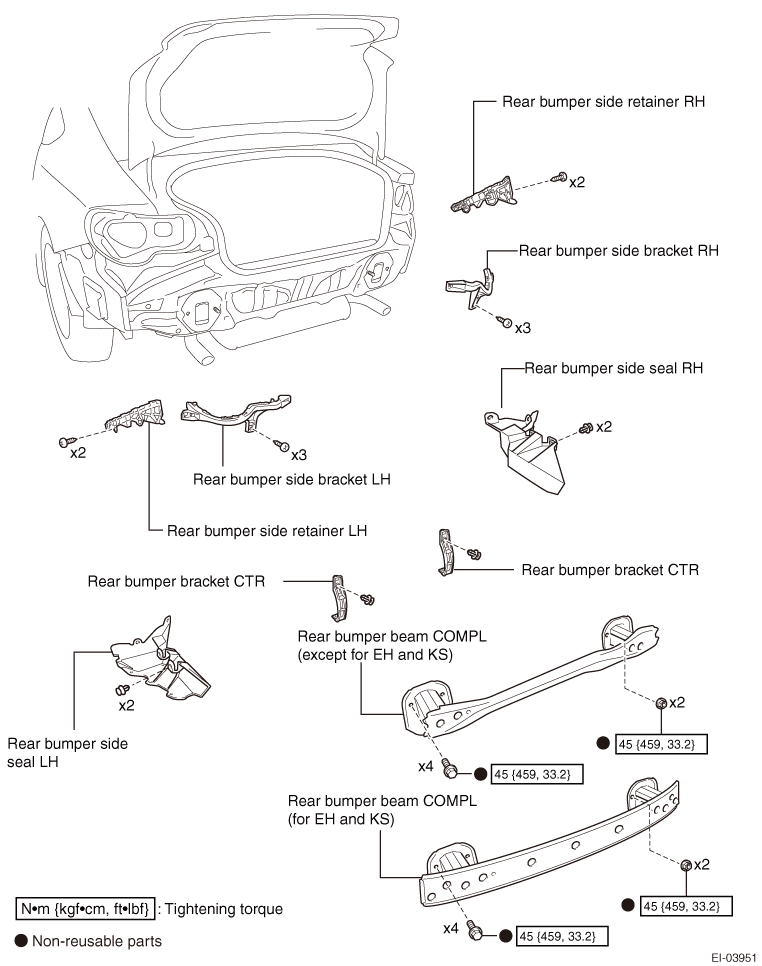

DISASSEMBLY
1. Removal of the back-up light ASSY (Refer to )
)
2. Removal of the rear bumper reinforcement NO. 2 (Installed on the LH side)
(1) Using a clip remover, remove the 2 clips and remove the rear bumper reinforcement NO. 2.
3. Removal of the rear bumper reinforcement NO. 1 (Installed on the RH side)
NOTE:
Remove the part in the same manner as LH side.
4. Removal of the rear bumper side seal LH
(1) Using a clip remover, remove the 4 clips and remove the rear bumper side seal LH.
5. Removal of the rear bumper side seal RH
NOTE:
Remove the part in the same manner as LH side.
6. Removal of the rear bumper side retainer LH
(1) Remove the 2 screws, and remove the rear bumper side retainer LH.
7. Removal of the rear bumper side retainer RH
NOTE:
Remove the part in the same manner as LH side.
8. Removal of the rear bumper side bracket LH

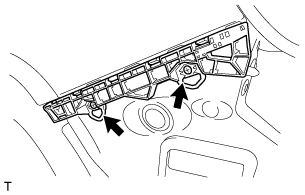

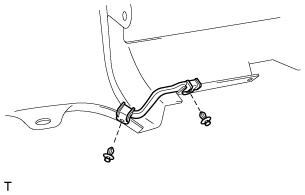

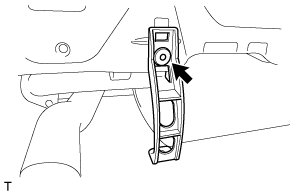

(1) Remove the 3 screws, and remove the rear bumper side bracket LH.
9. Removal of the rear bumper side bracket RH
NOTE:
Remove the part in the same manner as LH side.
10. Removal of rear bumper beam COMPL

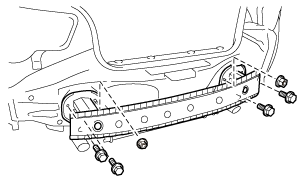

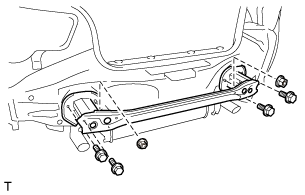

(1) Remove the 4 bolts and the 2 nuts, and remove the rear bumper beam COMPL.
11. Removal of the rear bumper bracket CTR (Installed on the LH side)
(1) Using a clip remover, remove the clip, and remove the rear bumper bracket CTR.
12. Removal of the rear bumper bracket CTR (Installed on the RH side)
NOTE:
Remove the part in the same manner as LH side.
ASSEMBLY
1. Installation of the rear bumper bracket CTR (Installed on the LH side)
(1) Install the rear bumper bracket CTR.
2. Removal of the rear bumper bracket CTR (Installed on the RH side)
NOTE:
Install the part in the same manner as LH side.
3. Installation of the rear bumper beam COMPL
(1) Using the 4 bolts and the 2 nuts, install the rear bumper beam COMPL.
Standard value:
Standard value:
Tightening torque=45N·m
{
459kgf·cm}
{33.2ft·lbf}
4. Installation of the rear bumper side bracket LH
(1) Using 3 screws, install the rear bumper side bracket LH.
5. Installation of the rear bumper side bracket RH
NOTE:
Install the part in the same manner as LH side.
6. Installation of the rear bumper side retainer LH
(1) Using 2 screws, install the rear bumper side retainer LH.
7. Installation of the rear bumper side retainer RH
NOTE:
Install the part in the same manner as LH side.
8. Installation of the rear bumper side seal LH
(1) Using 4 clips, install the rear bumper side seal LH.
9. Installation of the rear bumper side seal RH
NOTE:
Install the part in the same manner as LH side.
10. Installation of the rear bumper reinforcement NO. 2 (Installed on the LH side)
(1) Using 2 clips, install the rear bumper reinforcement NO. 2.
11. Installation of the rear bumper reinforcement NO. 1 (Installed on the RH side)
NOTE:
Install the part in the same manner as LH side.
12. Installation of the back-up light ASSY (Refer to )
)INSTALLATION
1. Installation of the rear bumper cover
(1) Preparations for installation
(a) Pull the wiring harness of the back-up light ASSY in to the interior.
(2) In the direction of the arrow in the figure, insert the 3 guides.

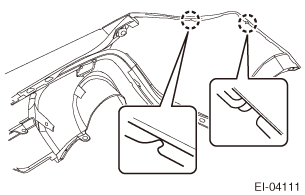

(3) Securely align two cutout portions on the rear bumper.
·The positioning rib on the rear bracket corner
·The positioning rib on the rear bracket side
·The positioning rib on the rear bracket side
(4) Fit in the 3 claws.
NOTE:
Perform same procedures for the RH side.

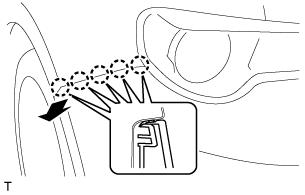

(5) Fit in the 5 claws.
NOTE:
Perform same procedures for the RH side.
(6) Install the 2 screws.
(7) Using 10 clips, install the rear bumper cover.
(8) Connect the connector.
(9) Using a clamp, install the wiring harness of the back-up light ASSY.
2. Installation of the trunk trim cover INN LH (Refer to )
)3. Installation of the trunk side tray LH
4. Installation of the rear floor finish plate (Refer to )
)5. Installation of the trunk floor mat
