Rear spoiler

Components Removal / installation

BODY EXTERIOR

REAR SPOILER

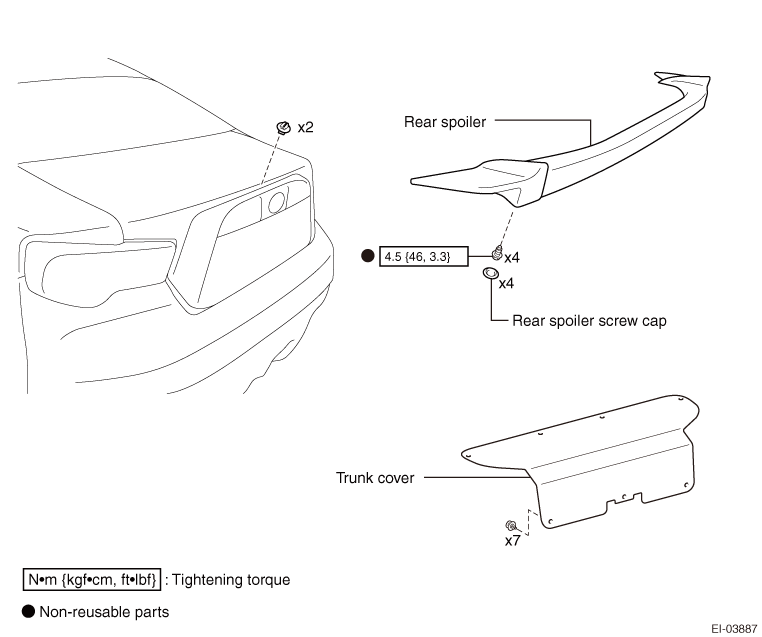

EXPLODED VIEW

REMOVAL

1. Removal of trunk cover (Refer to

)

2. Removal of the rear spoiler screw caps (Installed on the LH side)

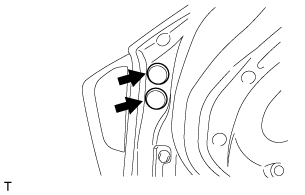

(1) Remove the 2 rear spoiler screw caps.

NOTE:

Perform same procedures for the RH side.

3. Removal of the rear spoiler

(1) Remove the 4 bolts.

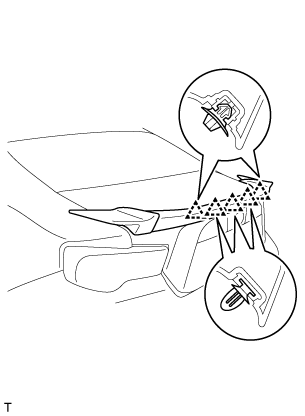

(2) Release the 5 clips, and remove the rear spoiler.

CAUTION:

Hold the rear spoiler to prevent it from falling.

INSTALLATION

1. Installation of the rear spoiler

CAUTION:

·If the clips are damaged, or if the gasket is worn out, replace them with new clips.
·Hold the rear spoiler ASSY rear spoiler to prevent it from falling.

(1) Clean the threaded ends on the rear spoiler.

(2) Install 2 clips (A) on the trunk panel.

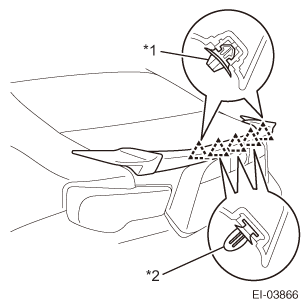

(3) Engage the 2 clips (A) and the 3 clips (B).

Captions in illustration

*1	Clip A
*2	Clip B

(4) Using 4 new bolts, install the rear spoiler.

Standard value:

Tightening torque=4.5N·m { 46kgf·cm} {3.3ft·lbf}

2. Installation of the rear spoiler screw caps (Installed on the LH side)

(1) Install the 2 rear spoiler screw caps.

NOTE:

Perform same procedures for the RH side.

3. Installation of trunk cover (Refer to

)
