Name plate
Components Removal / installation
BODY EXTERIOR
NAME PLATE

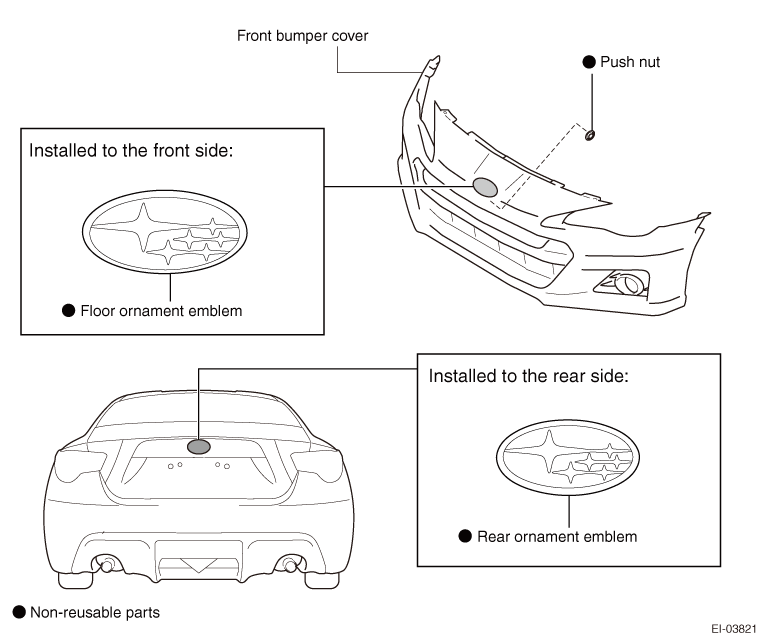

EXPLODED VIEW
REMOVAL
1. Removal of the front bumper cover (Refer to
)
)
2. Removal of the front ornament emblem (Installed on the front side)

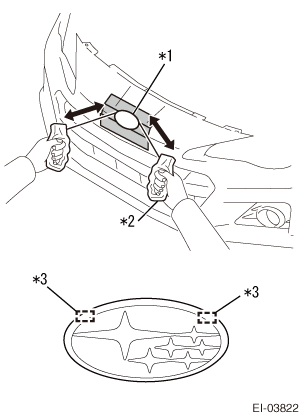

(1) Apply protective tape around the front ornament emblem.
Captions in illustration
| *1 |
Protective tape |
| *2 |
Winch |
| *3 |
Positioning pins |
(2) Using a heat light, heat up the front ornament emblem.
WARNING:
Be careful of burns from the heated body or the heat from the heat lamp.
NOTE:
Heat up for 3 to 5 minutes at 40 to 60°C {104 to 140°F}.
(3) Set a piano wire to the winch.
(4) Pull the piano wire both ways and cut the adhesive part of the acrylic foam tape.
CAUTION:
Be careful of the locations of the positioning pins.
(5) Remove the push nut from the back side of the front bumper cover.
(6) Remove the front ornament emblem.
3. Removal of the rear ornament emblem (Installed on the rear side)

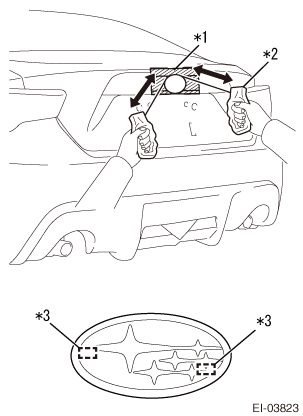

(1) Apply protective tape around the rear ornament emblem.
Captions in illustration
| *1 |
Protective tape |
| *2 |
Winch |
| *3 |
Positioning pins |
(2) Using a heat light, heat up the rear ornament emblem.
WARNING:
Be careful of burns from the heated body or the heat from the heat lamp.
NOTE:
Heat up for 3 to 5 minutes at 40 to 60°C {104 to 140°F}.
(3) Set a piano wire to the winch.
(4) Pull the piano wire both ways, cut the adhesive part of the acrylic foam tape, and remove the rear ornament emblem.
CAUTION:
Be careful of the locations of the positioning pins.
INSTALLATION
1. Installation of the front ornament emblem (Installed on the front side)
(1) Cleaning the installation surface of the front ornament emblem
(a) Remove any remaining acrylic foam tape on the front ornament emblem installation surface.
(b) Degrease the installation surface of the front ornament emblem.
(2) Using a heat light, heat up the new front ornament emblem and the vehicle installation surface.
WARNING:
Be careful of burns from the heated body or the heat from the heat lamp.
NOTE:
·Body side: 40 to 60°C (104 to 140°F)
·Front ornament emblem side: 20 to 30°C {68 to 86°F}
·Front ornament emblem side: 20 to 30°C {68 to 86°F}
(3) Peel the backing sheet of the acrylic foam tape, avoiding touching the adhesive surface.
(4) Align the positions of the positioning pins, and install the front ornament emblem.

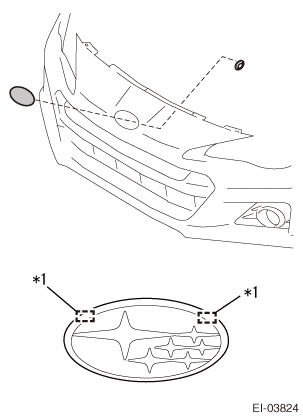

Captions in illustration
| *1 |
Positioning pins |
NOTE:
Press the front ornament emblem firmly to install it.
(5) Using a push nut, firmly secure the front ornament emblem.
2. Installation of the front bumper cover (Refer to )
)
3. Installation of the rear ornament emblem (Installed on the rear side)
(1) Cleaning the installation surface of the rear ornament emblem
(a) Remove any remaining acrylic foam tape on the rear ornament emblem installation surface.
(b) Degrease the installation surface of the rear ornament emblem.
(2) Using a heat light, heat up the new rear ornament emblem and the vehicle installation surface.
WARNING:
Be careful of burns from the heated body or the heat from the heat lamp.
NOTE:
·Body side: 40 to 60°C (104 to 140°F)
·Rear ornament emblem side: 20 to 30°C {68 to 86°F}
·Rear ornament emblem side: 20 to 30°C {68 to 86°F}
(3) Peel the backing sheet of the acrylic foam tape, avoiding touching the adhesive surface.
