Front door weather strip
Components Removal / installation
BODY EXTERIOR
FRONT DOOR WEATHER STRIP

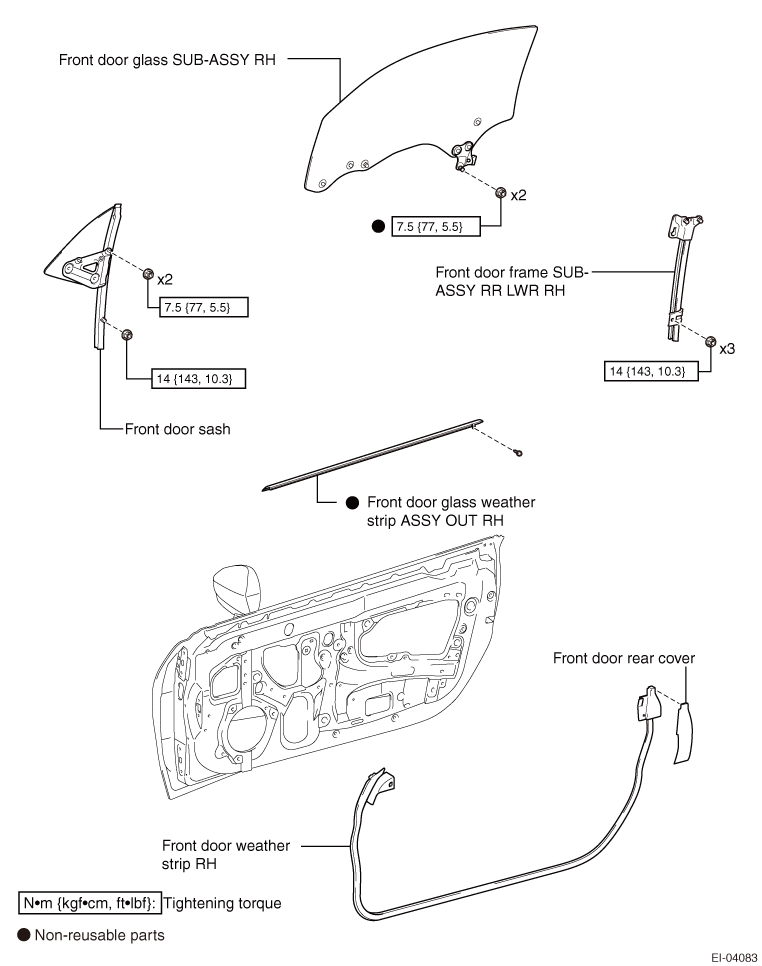

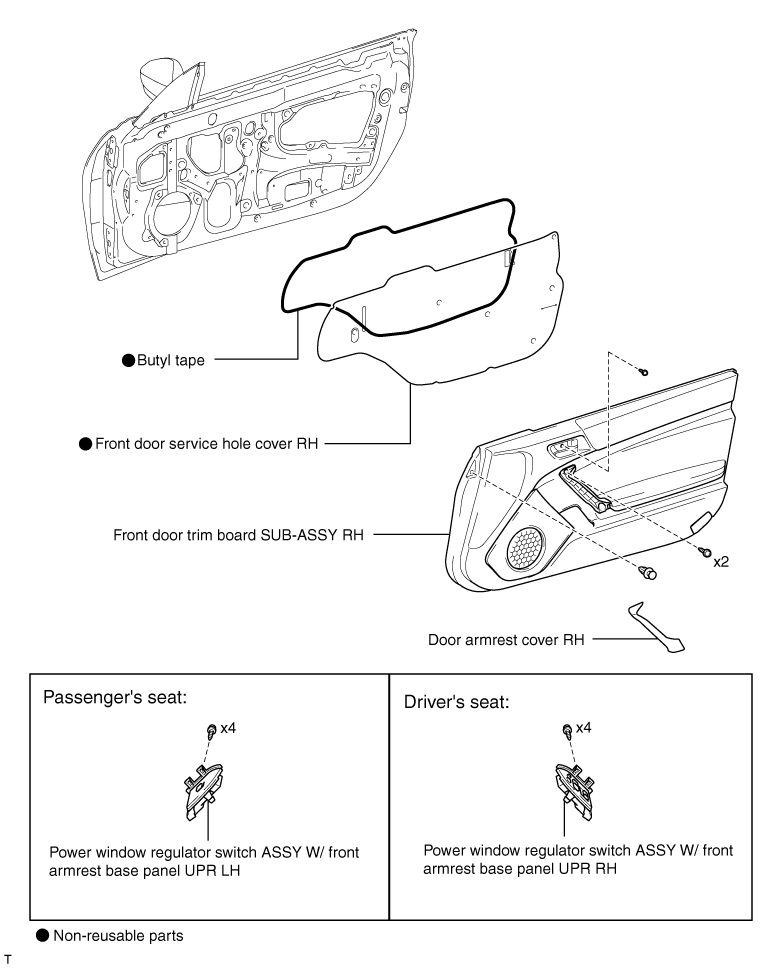

EXPLODED VIEW
REMOVAL
NOTE:
The procedures described below are for the RH side. Unless otherwise specified, perform the same procedures for the LH and RH sides.
1. Fully open the front door glass.
2. Disconnection of the battery ground terminal (Refer to
)
)3. Removal of the door arm rest cover RH (Refer to )
)4. Removal of the front door trim board SUB-ASSY RH (Refer to )
)5. Removal of the front door glass weather strip ASSY OUT RH

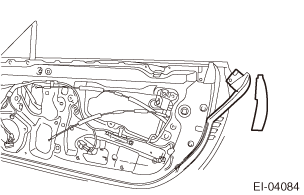

(1) Remove the front door rear cover RH.

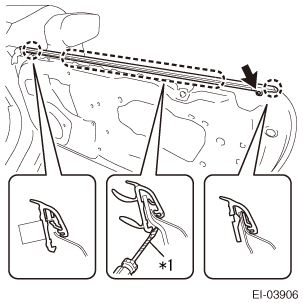

(2) Turn over the rear end of the front door weather strip so that the front glass SUB-ASSY RH can be removed.
(3) Remove the screw.
INSTALLATION
NOTE:
The procedures described below are for the RH side. Unless otherwise specified, perform the same procedures for the LH and RH sides.
1. Installation of the front door glass weather strip ASSY OUT RH

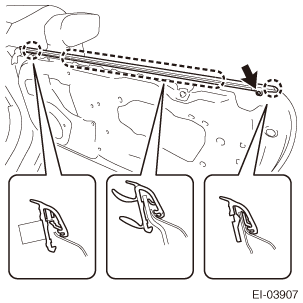

(1) Fit in the tabs, and install the new front door glass weather strip ASSY OUT RH.
(2) Install the screw.
(3) Install the front door weather strip RH.
(4) Install the front door rear cover RH.
2. Installation of the front door trim board SUB-ASSY RH (driver’s door) (Refer to )
)3. Installation of the door arm rest cover RH (Refer to )
)4. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
5. Settings when removing/installing battery terminals (Refer to )
)6. Power window registration settings (Refer to )
)7. Function inspection of the power windows (Refer to )
)
