Trunk garnish
Components Removal / installation
BODY EXTERIOR
TRUNK GARNISH

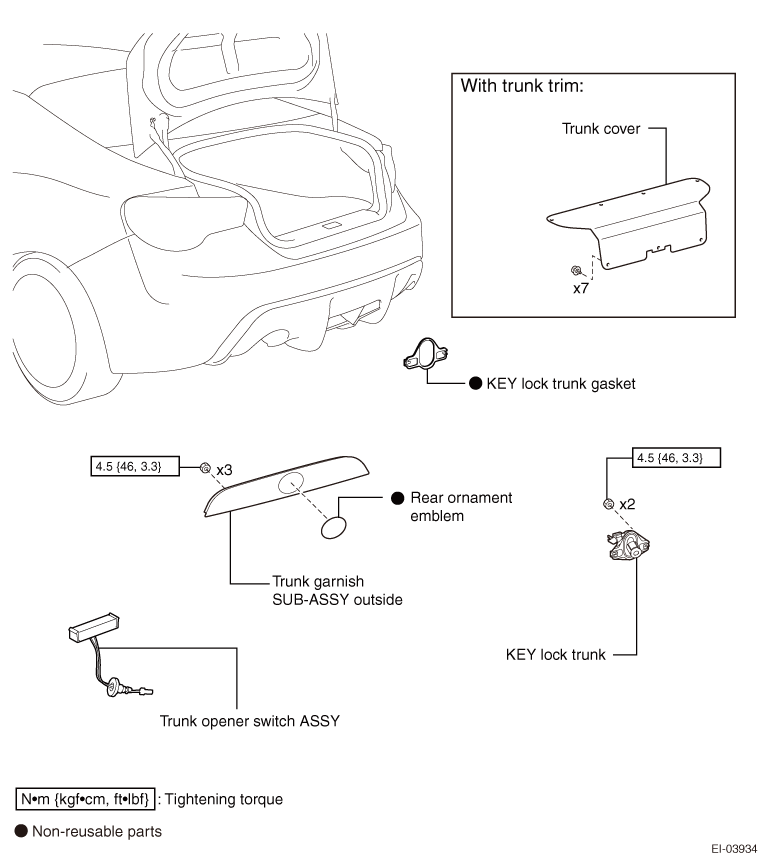

EXPLODED VIEW
REMOVAL
1. Removal of trunk cover (with trunk trim) (Refer to
)
)2. Removal of key lock trunk (Refer to )
)
3. Removal of trunk garnish SUB-ASSY outside

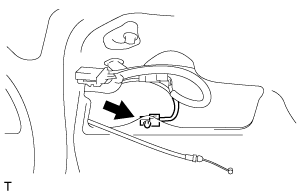

(1) Disconnect the connector for the trunk opener switch ASSY.
(2) Remove the grommet for the trunk opener switch ASSY.

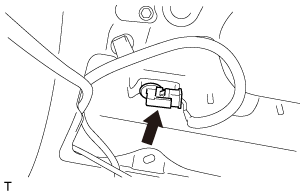

(3) Disconnect the connector of the license plate light RH side.
(4) Disconnect on the LH side using the same steps as the RH side.

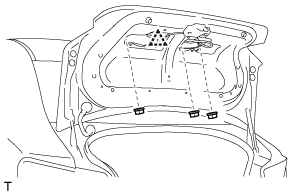

(5) Remove the 3 nuts.
(6) Remove the clip, and remove the trunk garnish SUB-ASSY outside.
4. Removal of the trunk opener switch ASSY (Refer to )
)5. Removal of the rear ornament emblem (installed on the rear) (Refer to )
)INSTALLATION
1. Installation of the rear ornament emblem (installed on the rear) (Refer to )
)2. Installation of the trunk opener switch ASSY (Refer to )
)3. Installation of the trunk garnish SUB-ASSY outside
(1) Using the 3 nuts and the clip, install the trunk garnish SUB-ASSY outside.
Standard value:
Standard value:
Tightening torque=4.5N·m
{
46kgf·cm}
{3.3ft·lbf}
(2) Connect the 2 license plate light connectors.
(3) Connect the connector for the trunk opener switch ASSY.
4. Installation of key lock trunk (Refer to )
)5. Installation of trunk cover (with trunk trim) (Refer to )
)
