Wire Color / Connector Color Symbols

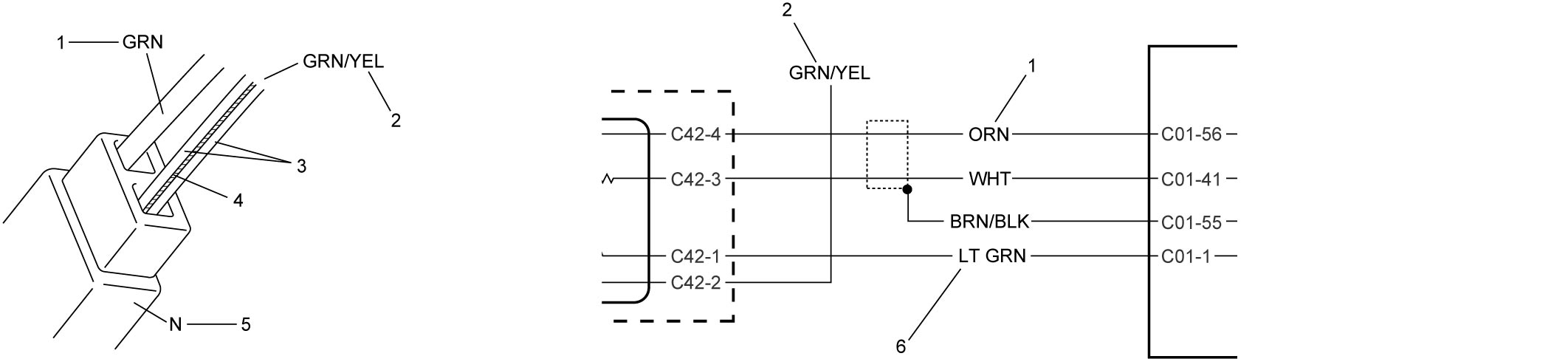

There are two types of colored wire used in this vehicle. One is a single-colored type (1) and the other is a dual-colored (striped) type (2). The dual-colored type of wire uses two color symbols such as “GRN/YEL”. The first symbol “GRN” represents the base color (3) of the wire and the second symbol “YEL” represents the color of the stripe (4).

Also, “LT” (6) or “D” can be shown before the color symbols. They show the color variation of light or dark. “LT” stands for “Light” and “D” stands for “Dark”. For example, “LT GRN” means light green and “D GRY” means dark gray.
