Warning, Caution and Information Label Location
Precautions: General safety (00)

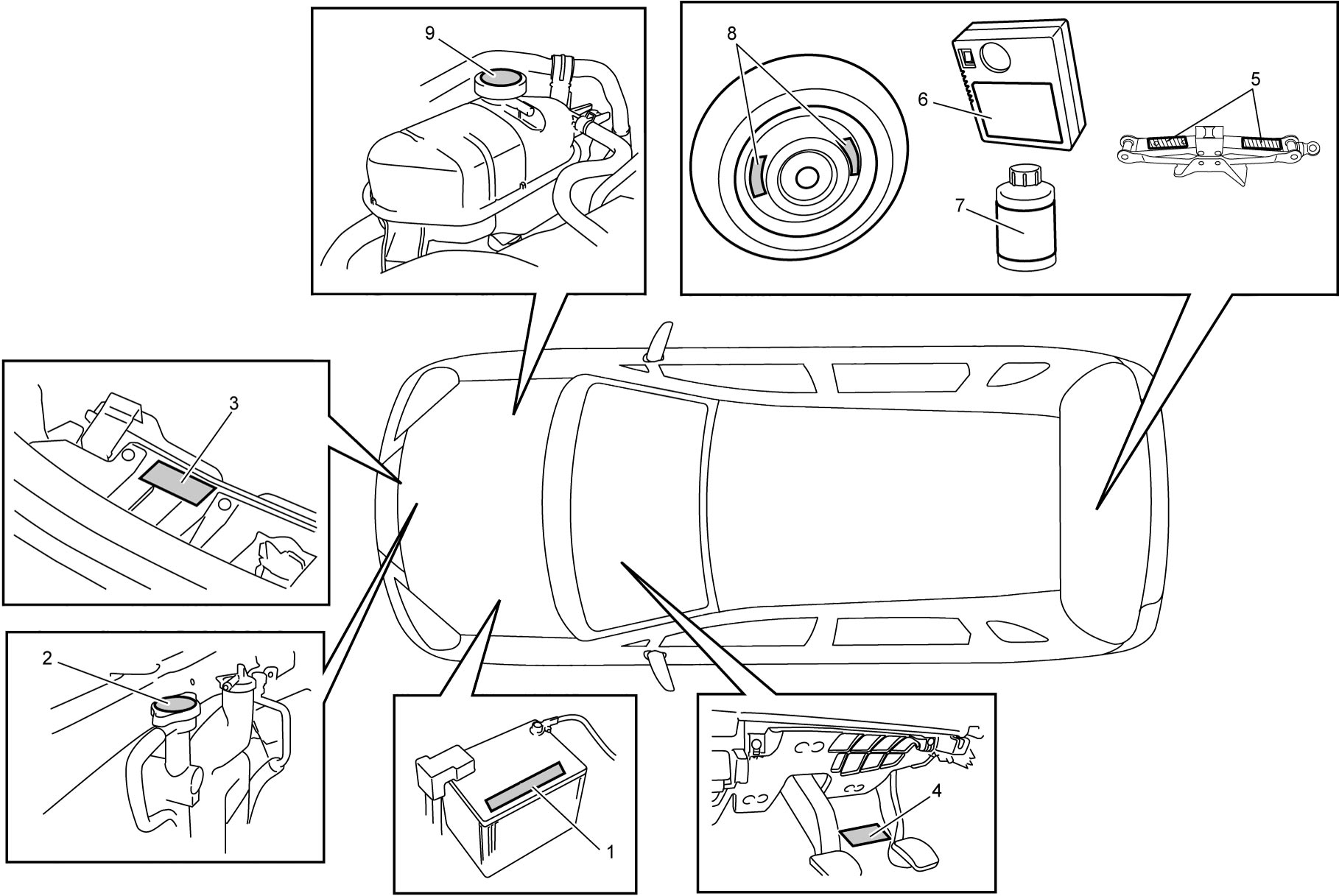

The figure shows main labels that are attached to vehicle components.
When servicing and handling components, refer to WARNING / CAUTION instructions printed on labels.
If any WARNING / CAUTION label is found stained or damaged, clean or replace it.
| 1. | Battery label | 4. | Steering shaft joint cover label | 7. | Flat tire repair sealant label (with emergency flat tire repair kit) |
| 2. | Radiator cap label (M16A model and K14C model) | 5. | Jack label | 8. | Compact spare tire label (with compact spare tire) |
| 3. | Engine cooling fan label | 6. | Compressor label (with emergency flat tire repair kit) | 9. | Degassing tank cap label (D16AA model) |

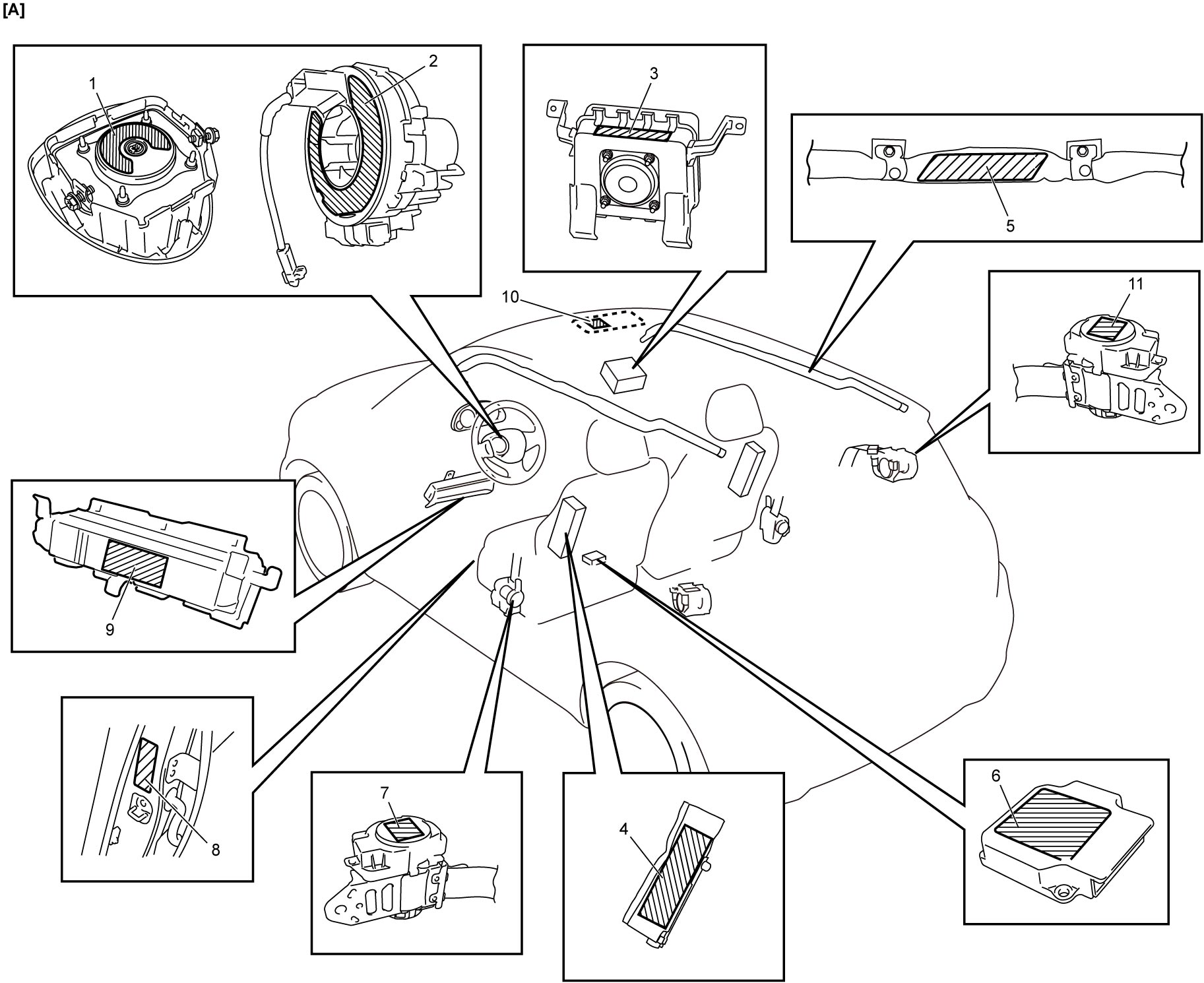

| [A]: | These labels are attached on vehicle equipped with air bag system only. | 6. | Air bag label on SDM |
| 1. | Air bag label on driver air bag (inflator) module | 7. | Pretensioner label on front seat belt retractor |
| 2. | Air bag label on contact coil assembly | 8. | Side/Curtain air bag label on pillar (both right and left sides) (if equipped) |
| 3. | Air bag label on passenger air bag (inflator) module | 9. | Air bag label on knee air bag (inflator) module (if equipped) |
| 4. | Air bag label on side-air bag (inflator) module (if equipped) | 10. | Air bag label on sun visor |
| 5. | Air bag label on curtain air bag (inflator) module (if equipped) | 11. | Pretensioner label on rear seat belt retractor (if equipped) |
