IAT Sensor Removal and Installation
Precautions: General safety (00)
Removal
1)Disconnect negative (–) cable at battery.
2)Disconnect IAT sensor connector.

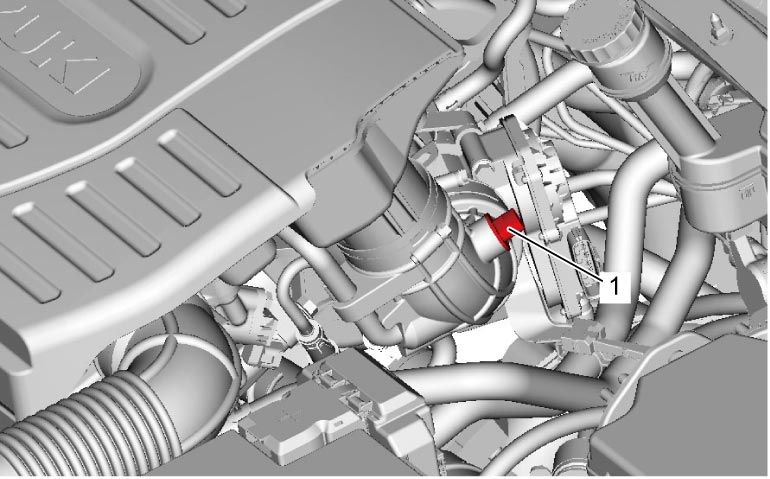

3)Remove IAT sensor (1) from air cleaner outlet hose.
Installation
Reverse removal procedure noting the following point.
•Clean mating surfaces of IAT sensor and air cleaner outlet hose.
