MAP Sensor Removal and Installation

Removal

1)Disconnect negative (–) cable at battery.

2)Disconnect connector from MAP sensor.

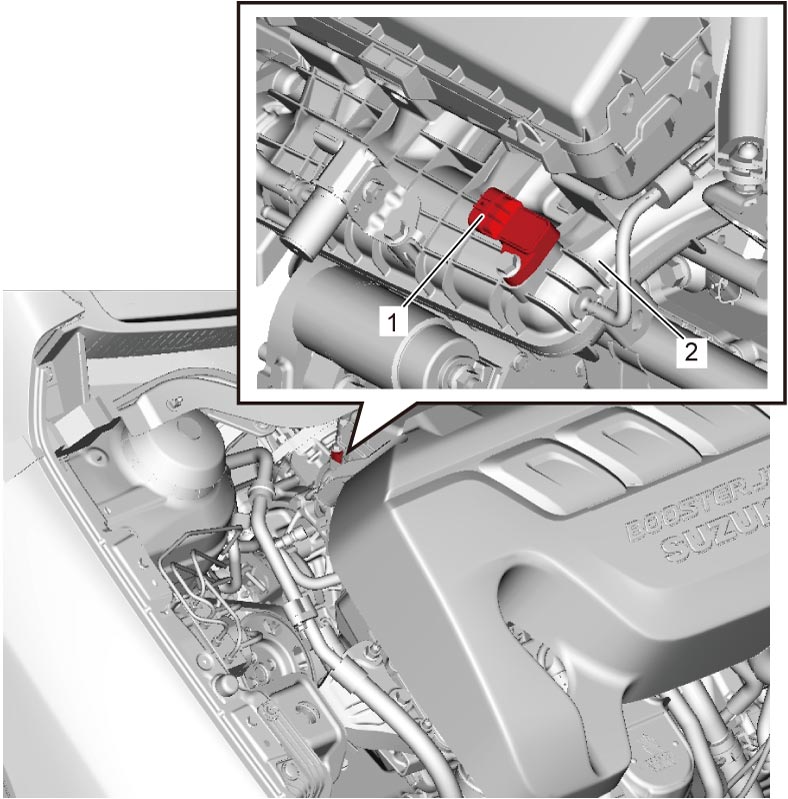

3)Remove MAP sensor (1) from intake manifold (2).

Installation

Reverse removal procedure noting the following points.

•Check that O-ring is free from damage.

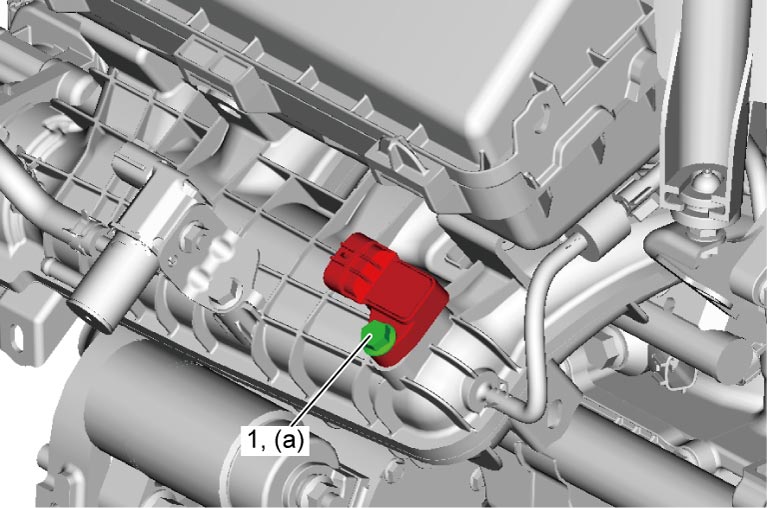

•Tighten MAP sensor bolt (1) to specified torque.

Tightening torque

MAP sensor bolt (a): 11 N·m (1.1 kgf-m, 8.5 lbf-ft)
