MAF Sensor with IAT Sensor-1 Removal and Installation
Precautions: General safety (00)
Removal
1)Disconnect negative (–) cable at battery.
2)Remove engine cover.
3)Disconnect connector from MAF sensor with IAT sensor-1 as follows.

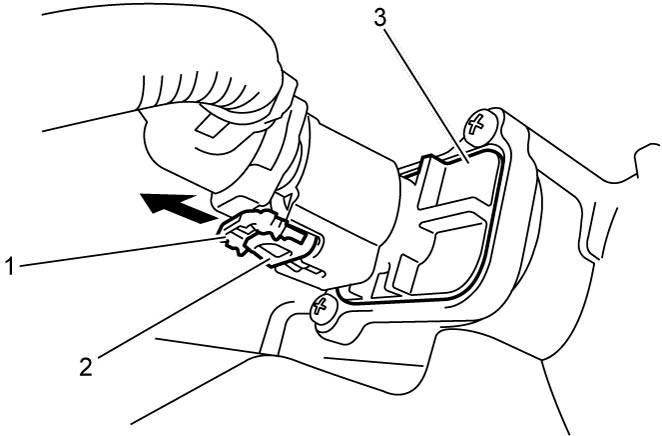

a)Move connector lock pin (1) in arrow direction as shown in figure.
b)Push connector lock lever (2) and disconnect connector from MAF sensor with IAT sensor-1 (3).
4)Remove MAF sensor with IAT sensor-1 from air cleaner assembly.
Installation

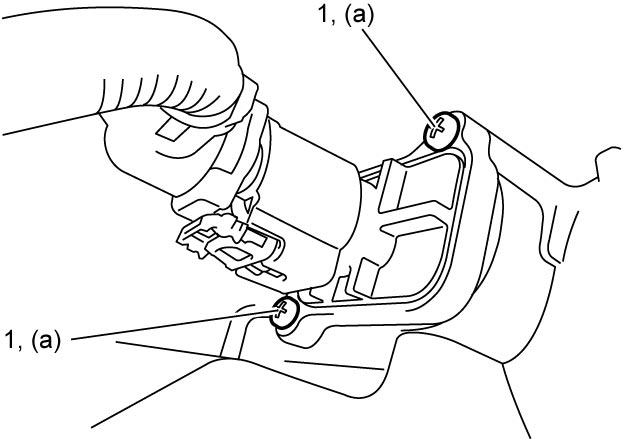

Reverse removal procedure noting the following point.
