Boost Pressure Sensor with IAT Sensor-2 Removal and Installation

Precautions: General safety (00)

Removal

1)Remove engine cover.

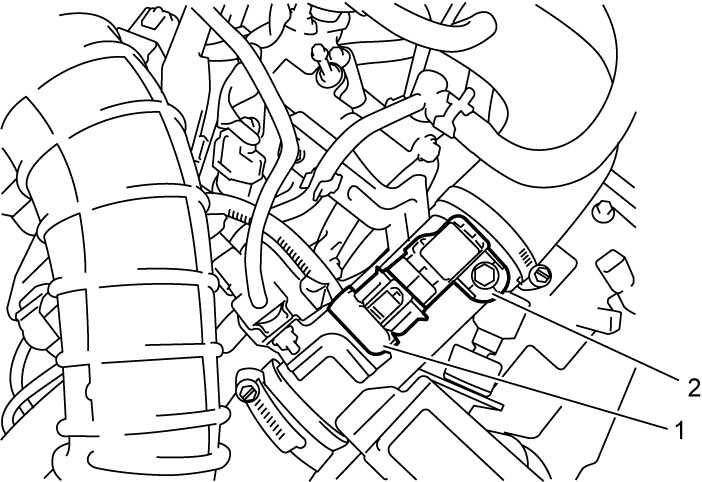

2)Disconnect boost pressure sensor with IAT sensor-2 connector (1).

3)Remove boost pressure sensor with IAT sensor-2 (2) from intercooler outlet pipe.

Installation

Reference: Boost Pressure Sensor with IAT Sensor-2 Inspection:K14C

Reverse removal procedure noting the following points.

•Check O-ring of boost pressure sensor with IAT sensor-2 for deformation or damage.
If defect is found, replace boost pressure sensor with IAT sensor-2.

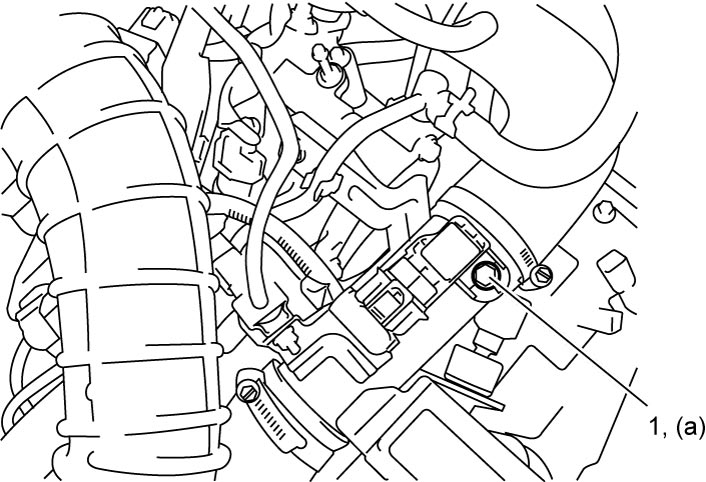

•Tighten boost pressure sensor with IAT sensor-2 bolt (1) to specified torque.

Tightening torque

Boost pressure sensor with IAT sensor-2 bolt (a): 11 N·m (1.1 kgf-m, 8.5 lbf-ft)
