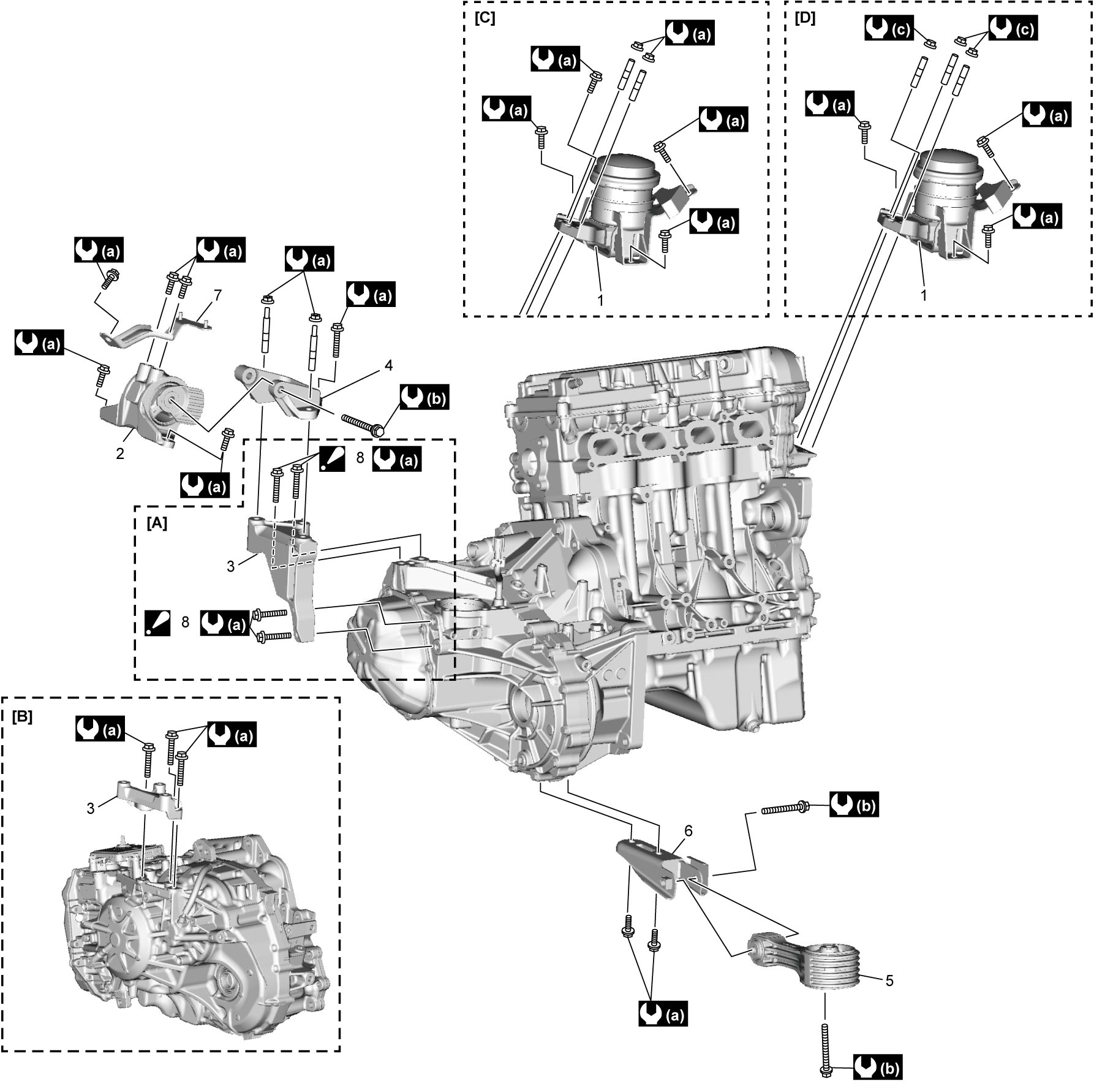

Engine Mounting Components
Precautions: General safety (00)
| [A]: | M/T model | 2. | Engine left mounting | 7. | Engine left mounting stiffener |
| [B]: | A/T model | 3. | Engine left mounting No.1 bracket |
 8. |
Engine left mounting No.1 bracket bolt : For tightening order, refer to Engine Assembly Removal and Installation:M16A. |
| [C]: | Nut and bolt – tightening engine right mounting | 4. | Engine left mounting No.2 bracket |
 : |
55 N·m (5.6 kgf-m, 40.5 lbf-ft) |
| [D]: | Nut – tightening engine right mounting | 5. | Engine rear torque rod |
 : |
93 N·m (9.5 kgf-m, 68.5 lbf-ft) |
| 1. | Engine right mounting | 6. | Engine rear torque rod bracket |
 : |
70 N·m (7.1 kgf-m, 52.0 lbf-ft) |
