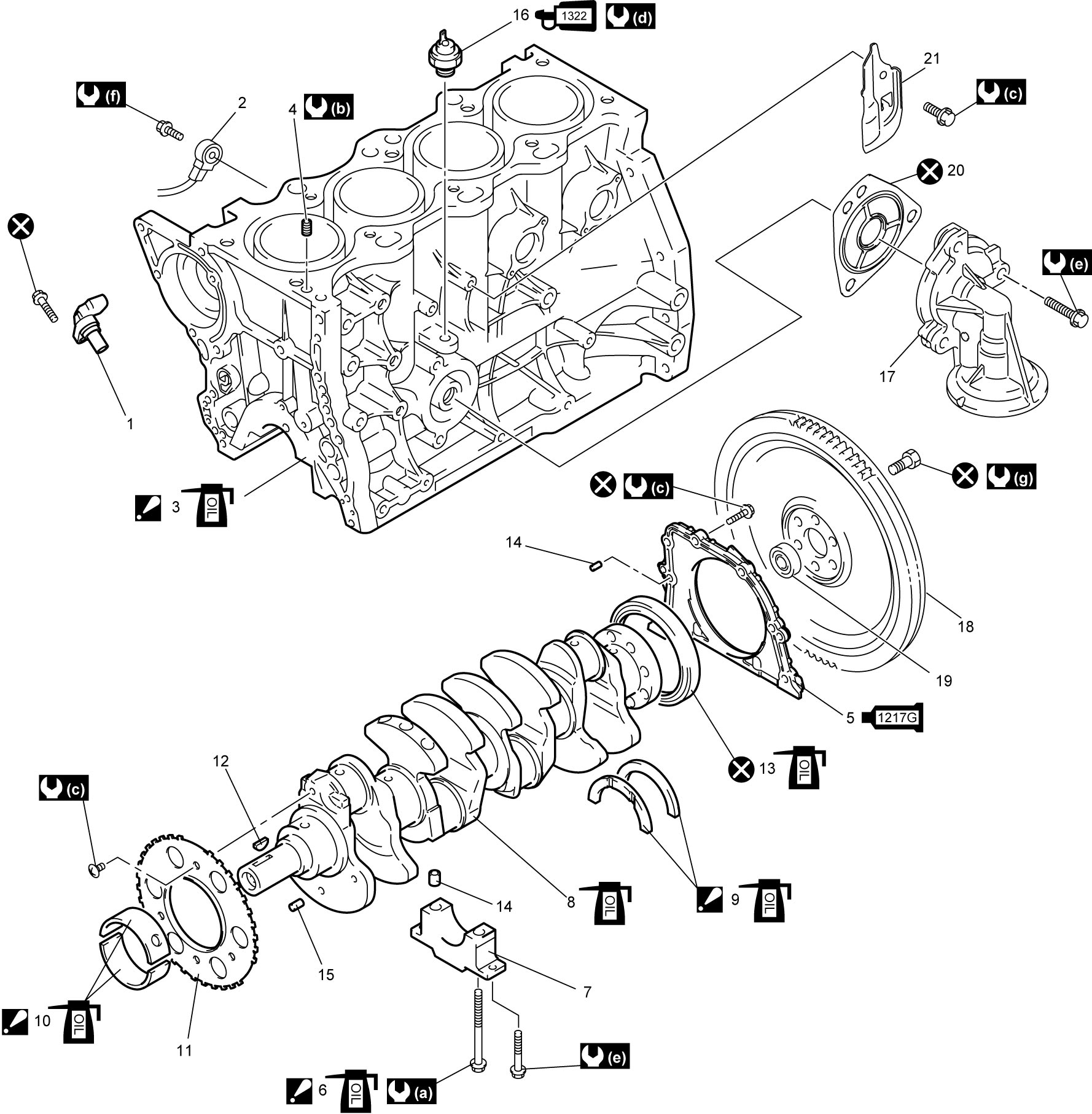

Main Bearing, Crankshaft and Cylinder Block Components

1.	CKP sensor	16.	Oil pressure switch : Apply sealant 99000-32150 to thread.
2.	Knock sensor	17.	Oil filter adapter case
3.	Cylinder block : Do not apply engine oil to main bearing seating face. : Apply engine oil to sliding surface.	18.	Flywheel (M/T model) or drive plate (A/T model)
4.	Venturi plug	19.	Input shaft bearing
5.	Engine rear crankshaft oil seal housing : Apply sealant 99000-31260 referring to Main Bearing, Crankshaft and Cylinder Block Removal and Installation:M16A.	20.	Gasket
6.	Main bearing cap No.1 bolt : Check main bearing cap bolt for deformation to reuse. : Apply engine oil to bolt thread and seat. : For tightening order, refer to Main Bearing, Crankshaft and Cylinder Block Removal and Installation:M16A.	21.	Oil pressure switch cover
7.	Main bearing cap	:	30 N·m → 50 N·m → +60° (3.1 kgf-m → 5.1 kgf-m → +60°, 22.5 lbf-ft → 37.0 lbf-ft → +60°)
8.	Crankshaft : Apply engine oil to sliding surface.	:	3.5 N·m (0.36 kgf-m, 2.5 lbf-ft)
9.	Thrust bearing : Install thrust bearing with oil grooves facing out. : Apply engine oil to sliding surface.	:	11 N·m (1.1 kgf-m, 8.5 lbf-ft)
10.	Main bearing : For applying engine oil, refer to Main Bearing, Crankshaft and Cylinder Block Removal and Installation:M16A.	:	13 N·m (1.3 kgf-m, 9.5 lbf-ft)
11.	Sensor plate	:	25 N·m (2.5 kgf-m, 18.5 lbf-ft)
12.	Crankshaft timing sprocket key	:	23 N·m (2.3 kgf-m, 17.0 lbf-ft)
13.	Rear oil seal : Apply engine oil to oil seal lip.	:	76 N·m (7.7 kgf-m, 56.0 lbf-ft)
14.	Dowel pin	:	Do not reuse.
15.	Spring pin
