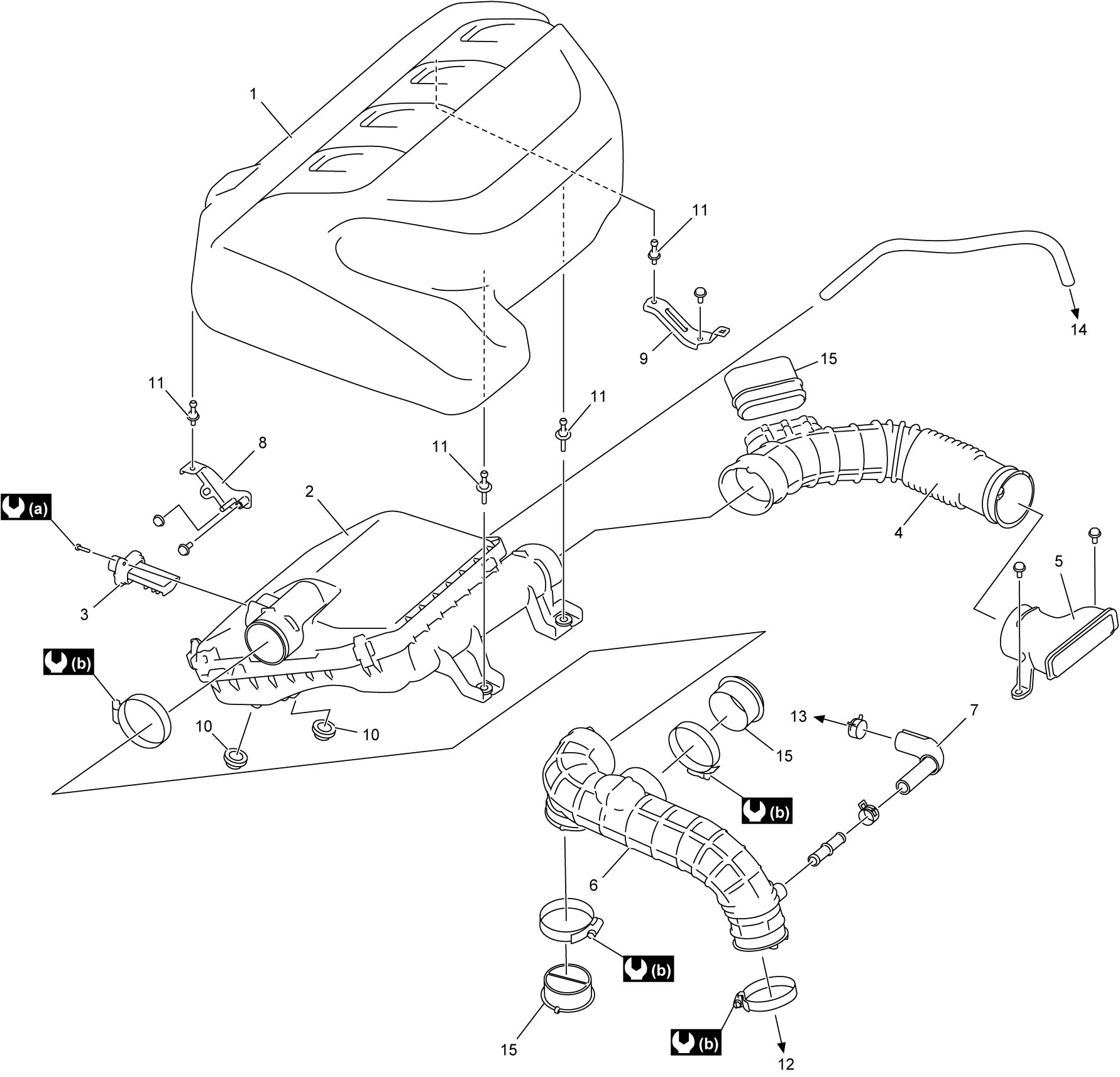

Air Cleaner Components
Precautions: General safety (00)
| 1. | Engine cover | 7. | Breather hose | 13. | To cylinder head cover |
| 2. | Air cleaner assembly | 8. | Engine cover bracket No.1 | 14. | To WGV-VSV |
| 3. | MAF sensor with IAT sensor-1 | 9. | Engine cover bracket No.2 | 15. | Resonator |
| 4. | Air cleaner suction hose | 10. | Air cleaner grommet |
 : |
1.2 N·m (0.12 kgf-m, 1.0 lbf-ft) |
| 5. | Air cleaner suction pipe | 11. | Engine cover bolt |
 : |
1.0 N·m (0.10 kgf-m, 1.0 lbf-ft) |
| 6. | Air cleaner outlet hose | 12. | To turbocharger inlet air pipe |
