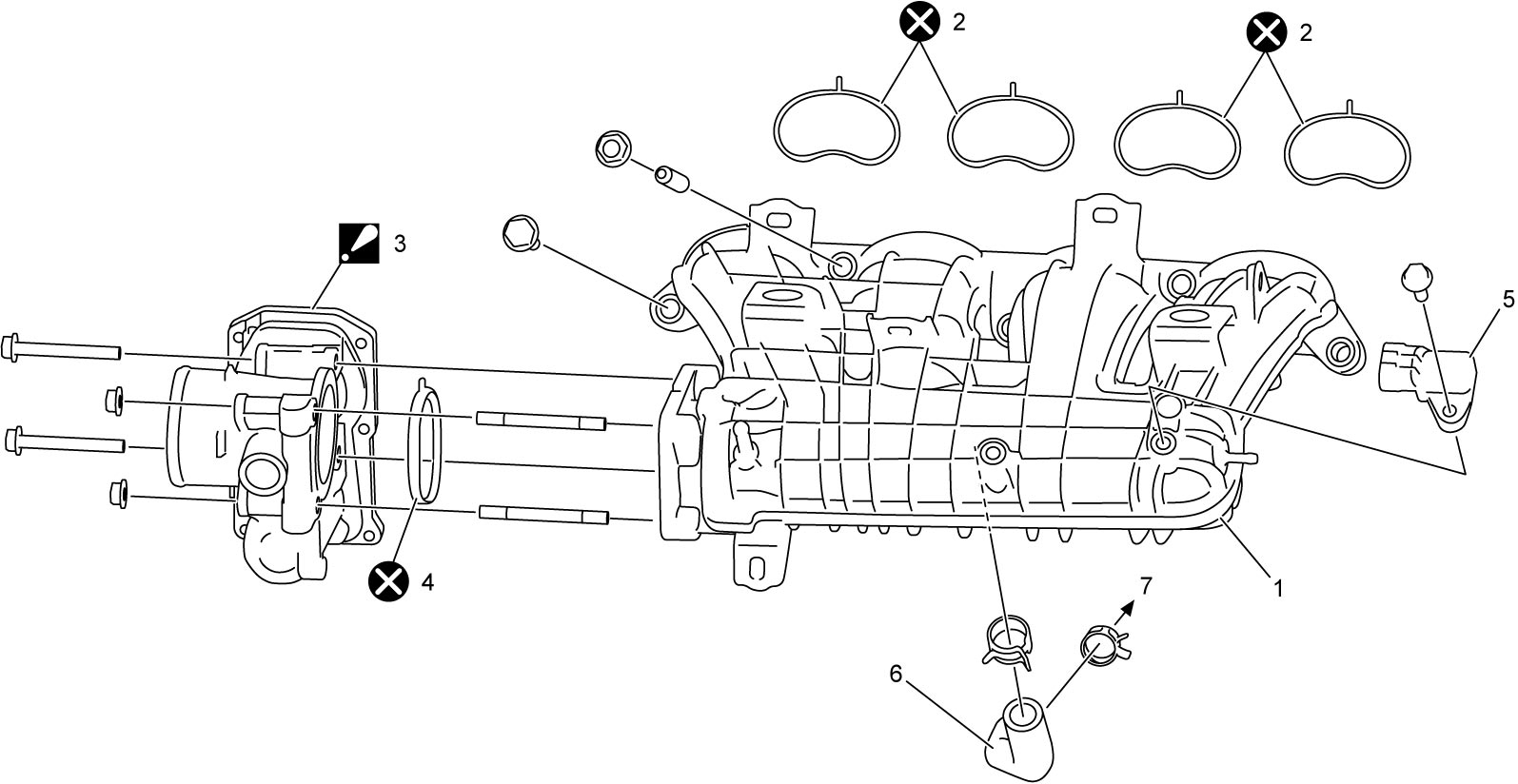

Electric Throttle Body and Intake Manifold Components
Precautions: General safety (00)
| 1. | Intake manifold | 4. | Electric throttle body gasket | 7. | To PCV valve |
| 2. | Intake manifold gasket | 5. | MAP sensor |
 : |
Do not reuse. |
 3. |
Electric throttle body assembly : Do not disassemble. |
6. | PCV valve hose |
