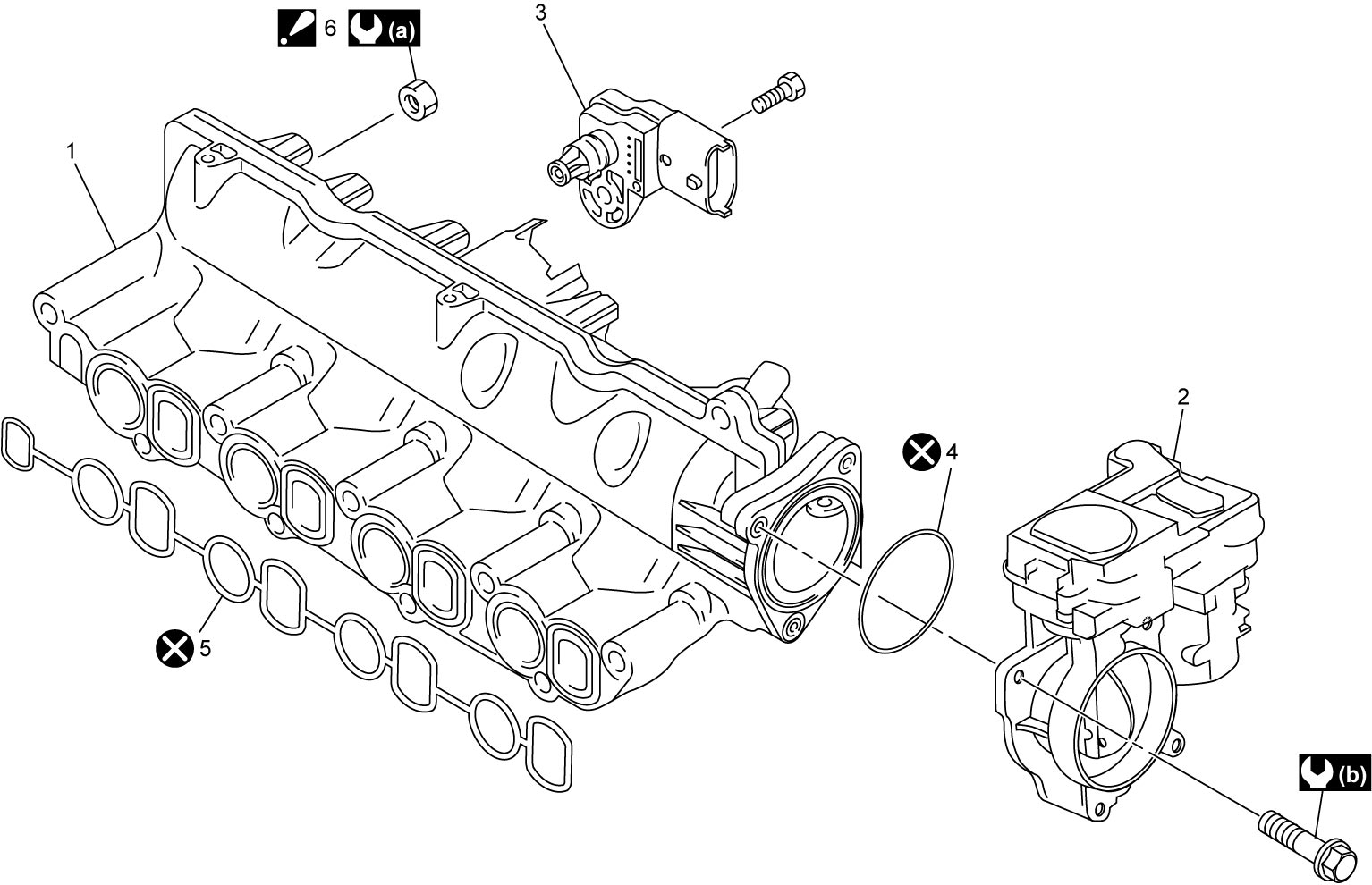

Intake Manifold Components
Precautions: General safety (00)
| 1. | Intake manifold | 4. | O-ring |
 : |
26 N·m (2.7 kgf-m, 19.5 lbf-ft) |
| 2. | Inlet throttle valve | 5. | Gasket |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
| 3. | Boost pressure sensor with IAT sensor-2 |
 6. |
Intake manifold nut : For tightening order, refer to Intake Manifold Removal and Installation:D16AA. |
 : |
Do not reuse. |
